CURT | Class 3 Trailer Hitch, 2in Receiver - Ranger 2.3T 2019-2023

CURT – Class 3 Trailer Hitch, 2in Receiver

Description

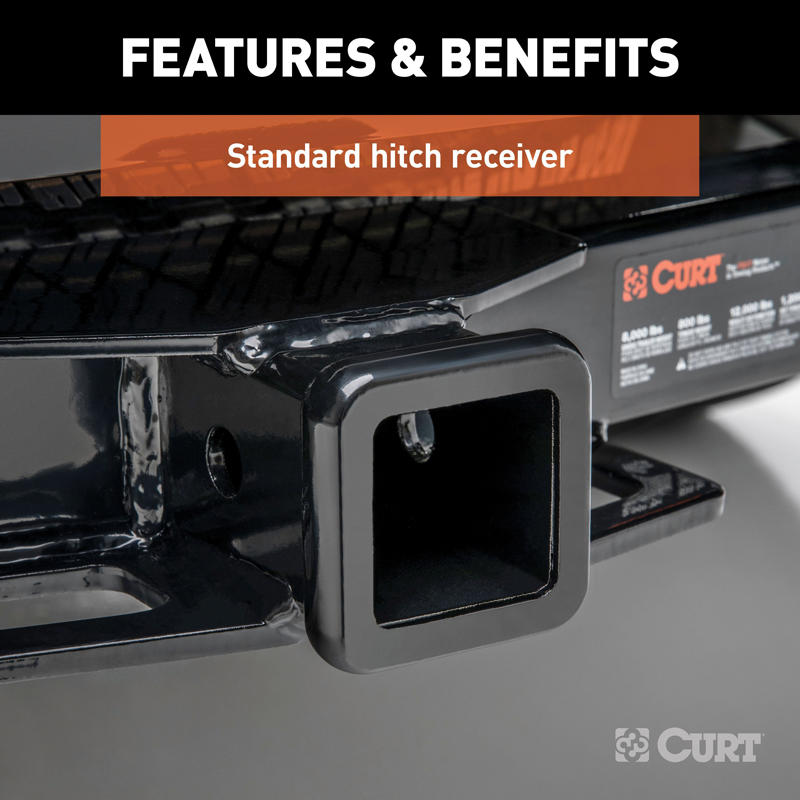

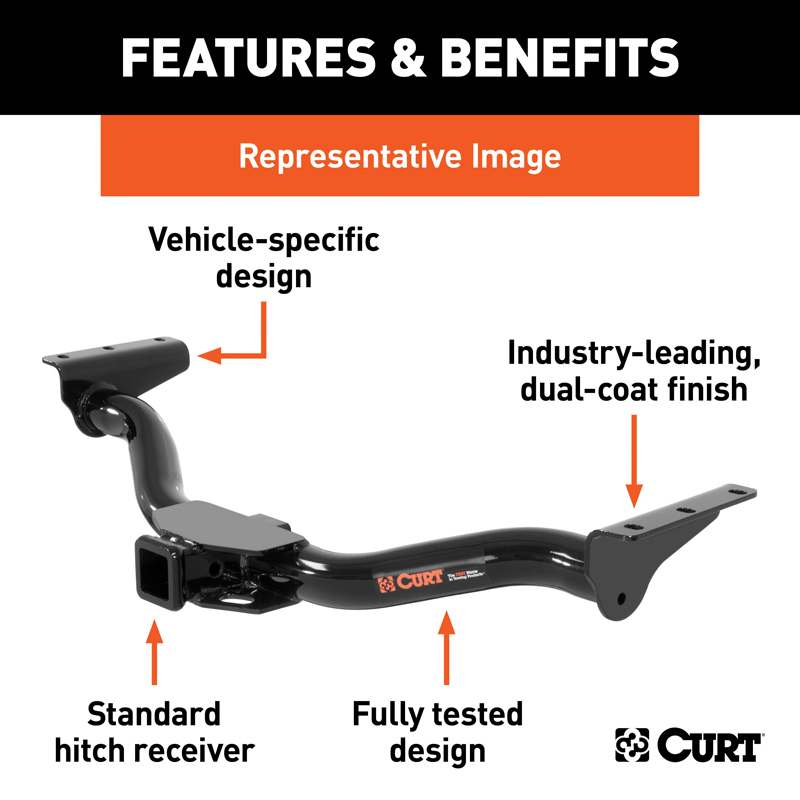

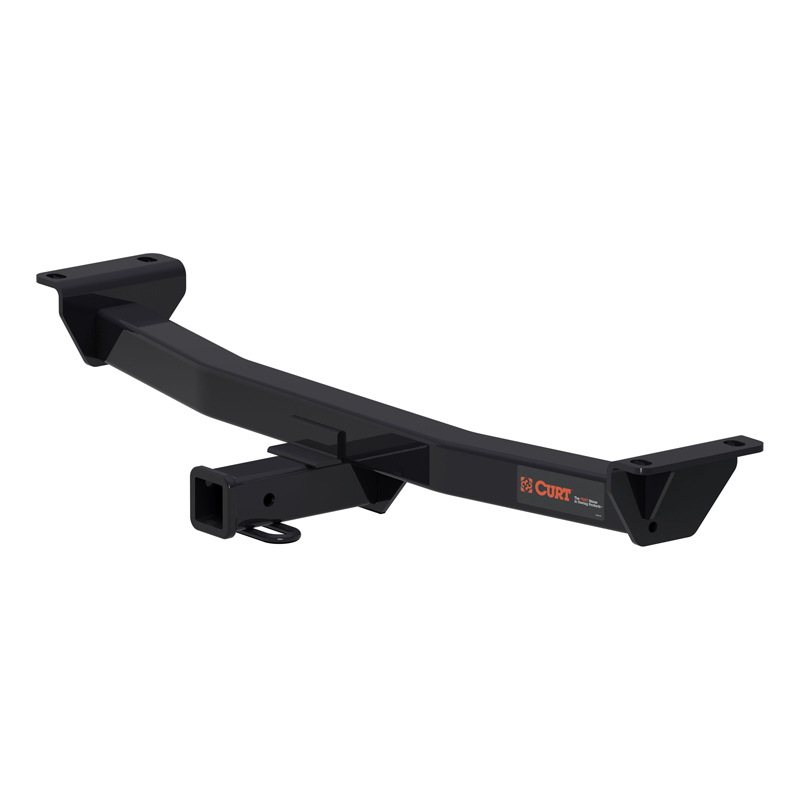

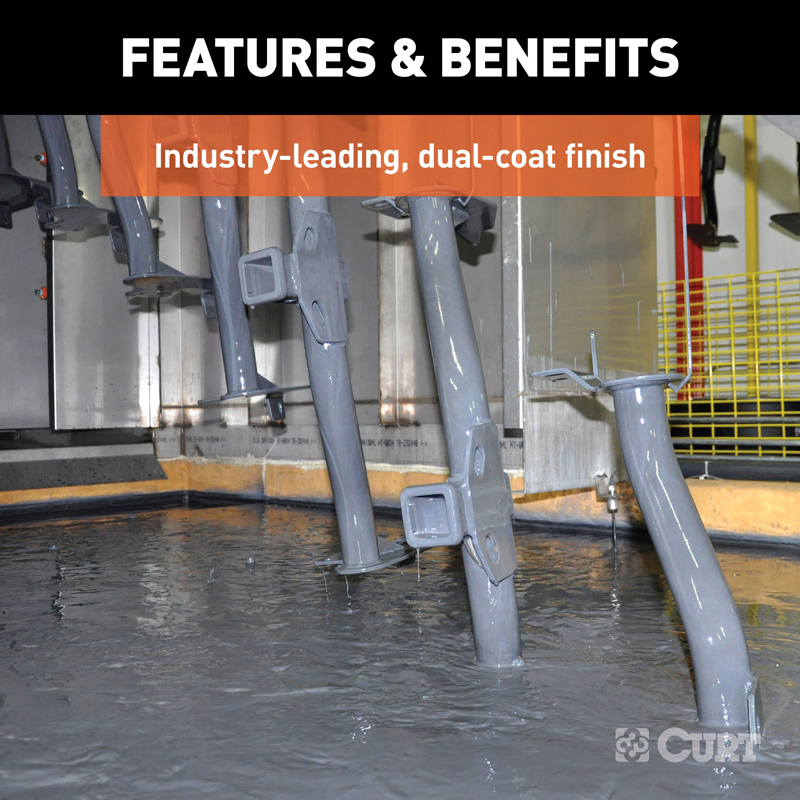

The CURT 13417 Class 3 trailer hitch is engineered for vehicle-specific mounting on select years of the Ford Ranger equipped with the L4 2.3L Turbo engine (for compatibility). With a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. tongue weight, it handles utility trailers, boat trailers, campers and snowmobile or ATV haulers. Also compatible with a weight distribution hitch for level towing up to 8,000 lbs. WD / 900 lbs. WDTW. The concealed square main body integrates seamlessly with the vehicle for an OE appearance. No drilling is required and installation uses pre-existing vehicle hardware (~30 minutes). Built from high-strength steel with precise welding, protected by a gloss black powder coat finish co-cured with rust-resistant liquid A-coat inside and out. Open-back receiver for easy cleaning. Tested in accordance with SAE J684. Made in USA (may include imported hardware).

Specifications

• Brand: CURT
• Part Number: 13417
• Compatibility: Ford Ranger L4 2.3L Turbo (See Application Section)
• Class: Class 3
• Receiver Size: 2 in
• GTW / TW Capacity: 6,000 lbs. / 900 lbs.
• WD / WDTW Capacity: 8,000 lbs. / 900 lbs.
• Finish: Gloss Black Powder Coat
• Body Shape: Square, concealed
• Drilling Required: No
• Installation Time: ~30 minutes

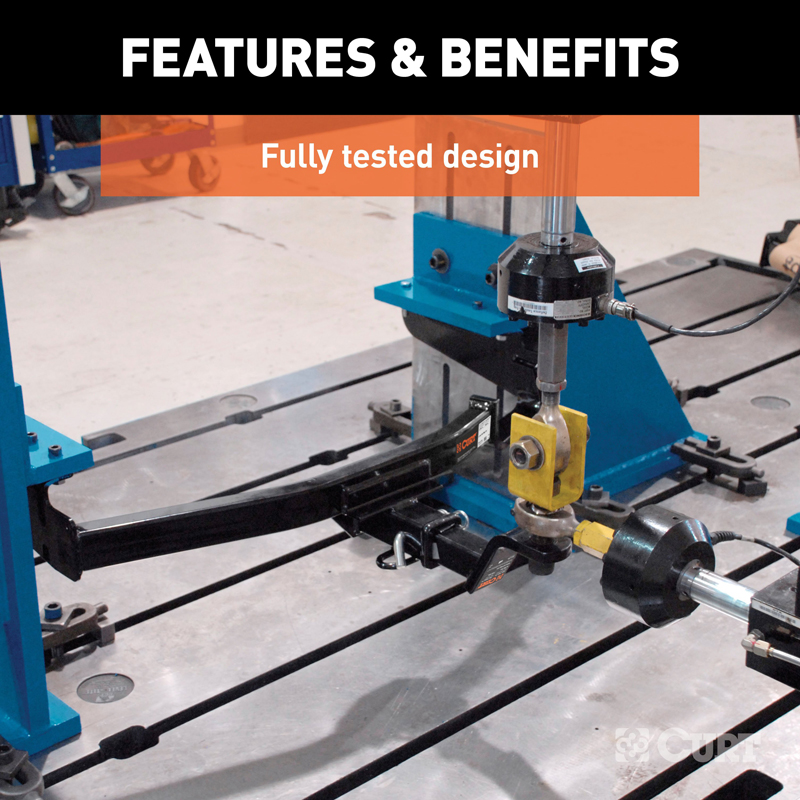

• Safety Standard: SAE J684 tested
• Condition: New
• Sold and Shipped by Truck Expert
