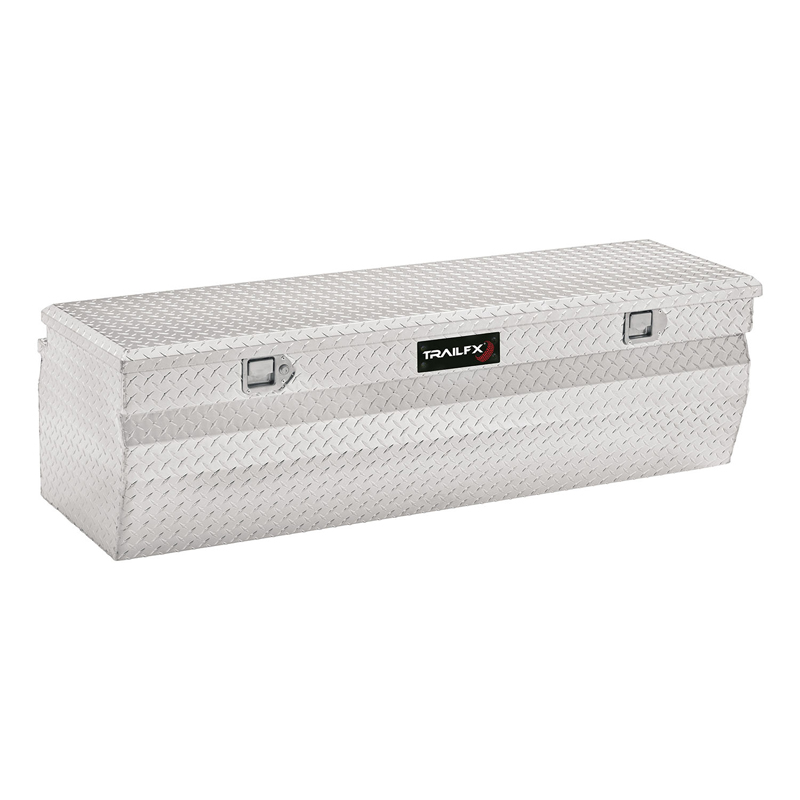

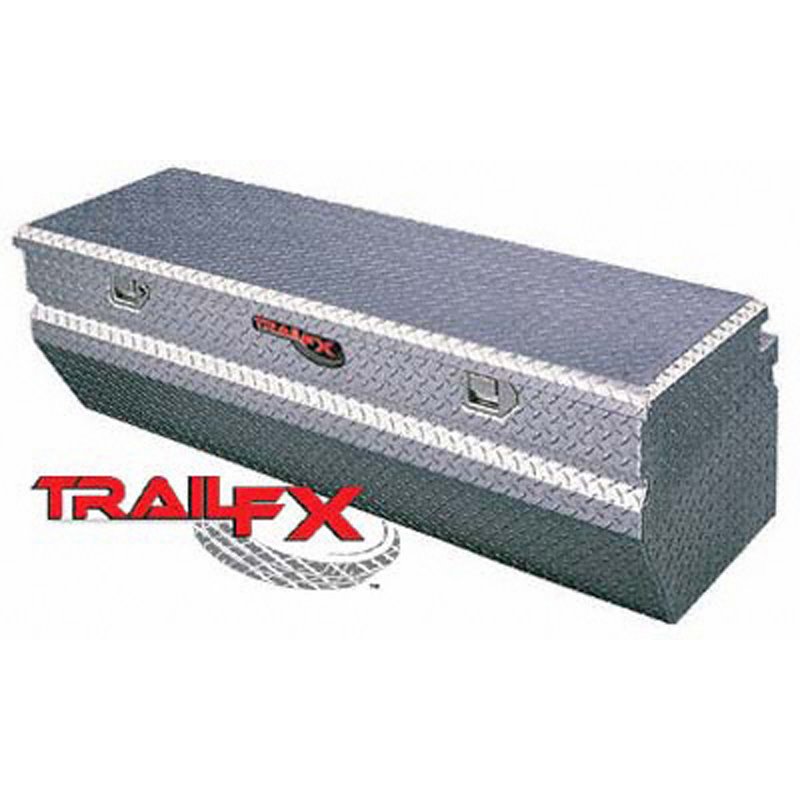

TrailFX | Chest Sgl Lid Alum 54x20x17 - Dakota / F-150 / Raider 2000-2019

Dodge / Ram

2005-2011 Dakota V6 3.7L SEE NOTE1
2005-2011 Dakota V8 4.7L SEE NOTE1

Ford

2015-2019 F-150 V6 2.7L Turbo SEE NOTE2
2015-2019 F-150 V6 2.7L Turbo SEE NOTE3
2018-2019 F-150 V6 3.0L Turbo Diesel SEE NOTE3
2018-2019 F-150 V6 3.0L Turbo Diesel SEE NOTE3
2018-2019 F-150 V6 3.3L SEE NOTE3
2018-2019 F-150 V6 3.3L SEE NOTE3
2015-2017 F-150 V6 3.5L SEE NOTE3
2015-2017 F-150 V6 3.5L SEE NOTE3
2011-2014 F-150 V6 3.5L Turbo SEE NOTE3
2011-2014 F-150 V6 3.5L Turbo SEE NOTE4
2015-2019 F-150 V6 3.5L Turbo SEE NOTE4
2015-2019 F-150 V6 3.5L Turbo SEE NOTE4
2011-2014 F-150 V6 3.7L SEE NOTE4
2011-2014 F-150 V6 3.7L SEE NOTE4
2010 F-150 V6 4.2L SEE NOTE4
2010 F-150 V6 4.2L SEE NOTE4
2000-2009 F-150 V6 4.2L SEE NOTE5
2009 F-150 V6 4.2L SEE NOTE6
2010 F-150 V8 4.6L SEE NOTE6
2010 F-150 V8 4.6L SEE NOTE6
2000-2009 F-150 V8 4.6L SEE NOTE6
2009 F-150 V8 4.6L SEE NOTE6
2011-2014 F-150 V8 5.0L SEE NOTE6
2011-2014 F-150 V8 5.0L SEE NOTE6
2015-2019 F-150 V8 5.0L SEE NOTE6
2015-2019 F-150 V8 5.0L SEE NOTE6
2010 F-150 V8 5.4L SEE NOTE6
2010 F-150 V8 5.4L SEE NOTE6
2000-2009 F-150 V8 5.4L SEE NOTE6
2009 F-150 V8 5.4L SEE NOTE6
2000-2004 F-150 V8 5.4L Supercharged SEE NOTE6
2010-2014 F-150 V8 6.2L SEE NOTE6
2010-2014 F-150 V8 6.2L SEE NOTE6
2004 F-150 Heritage V6 4.2L SEE NOTE6
2004 F-150 Heritage V6 4.2L SEE NOTE7
2004 F-150 Heritage V8 4.6L SEE NOTE7
2004 F-150 Heritage V8 4.6L SEE NOTE7
2004 F-150 Heritage V8 5.4L SEE NOTE7
2004 F-150 Heritage V8 5.4L SEE NOTE7
2004 F-150 Heritage V8 5.4L Supercharged SEE NOTE7
2004 F-150 Heritage V8 5.4L Supercharged SEE NOTE7

Mitsubishi

2006-2009 Raider V6 3.7L SEE NOTE8
2006-2007 Raider V8 4.7L SEE NOTE8

Note 1: ; Bed Length (IN): 76.8; Bed Length (mm): 195.1
Note 2: ; Bed Length (IN): 78.8; Bed Length (mm): 200.2
Note 3: ; Bed Length (IN): 97.4; Bed Length (mm): 247.4
Note 4: ; Bed Type: Fleetside; Bed Length (IN): 78.8; Bed Length (mm): 200.2
Note 5: ; Bed Type: Fleetside; Bed Length (IN): 97.4; Bed Length (mm): 247.4
Note 6: ; Bed Type: Stepside; Bed Length (IN): 78.8; Bed Length (mm): 200.2
Note 7: Do not over-tighten: Under normal install the J-Bolt will contact the bottom edge of the plastic bed rail cap. If the bolt is over-tightened the plastic could deform and the bolt will then contact the aluminum bed rail flange. If over tightening continues the paint on the aluminum flange could be damaged. This is when galvanic corrosion would start to become an issue.;; Bed Length (IN): 78.9; Bed Length (mm): 200.4
Note 8: Do not over-tighten: Under normal install the J-Bolt will contact the bottom edge of the plastic bed rail cap. If the bolt is over-tightened the plastic could deform and the bolt will then contact the aluminum bed rail flange. If over tightening continues the paint on the aluminum flange could be damaged. This is when galvanic corrosion would start to become an issue.;; Bed Length (IN): 97.6; Bed Length (mm): 247.9
