ICON Vehicle Dynamics – Radius Arm System

Description

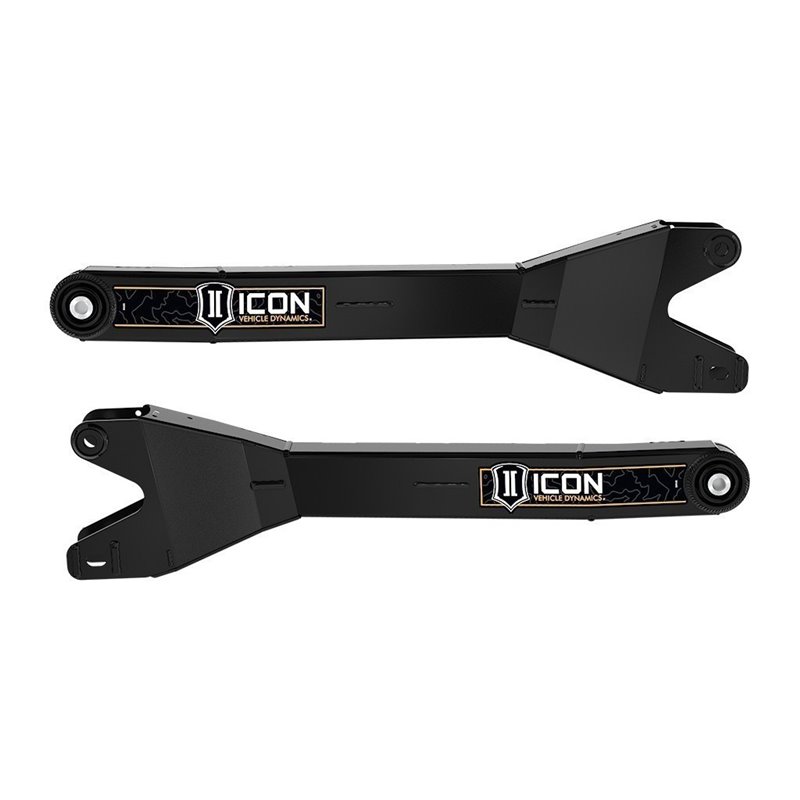

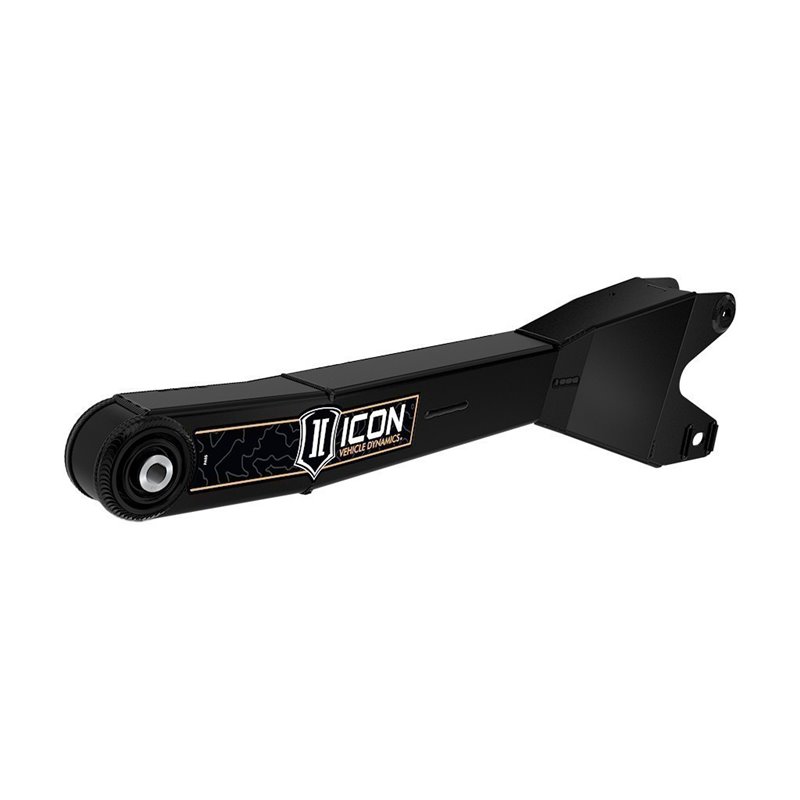

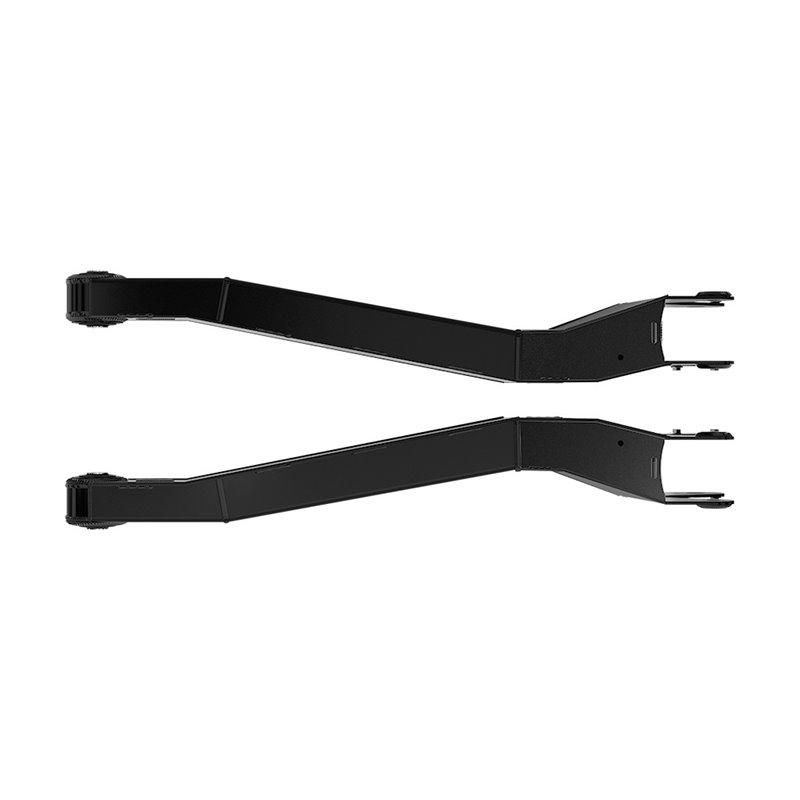

The ICON Vehicle Dynamics radius arm system (ref. 64042) is designed for Ford F-250 and F-350 Super Duty 4WD trucks. Equipped with adjustable caster cams, it works at stock height up to 3 inches of front lift with the arm installed in the factory pivot, eliminating the need for caster bushings. The sealed pivot bushing minimizes road feedback and ensures a long, quiet operational life. The fully boxed fabricated design ensures strength and uses a profile optimized for tire clearance at full steering lock, allowing a 37-inch tall tire with a 5.5-inch backspace wheel to clear without contact. CNC machined and laser-cut steel components with a semi-gloss black powder coat finish. (See Application Section)

Specifications

• Reference: 64042
• Brand: ICON Vehicle Dynamics
• Type: Radius arm system
• Adjustable caster cams built-in
• Replaceable sealed pivot bushing
• Fully boxed fabricated design
• CNC machined and laser-cut steel components
• 37" tire clearance at full steering lock
• Compatible: 0–3" lift (factory pivot)
• Semi-gloss black powder coat finish
• Application: Ford F-250 / F-350 Super Duty 4WD
• Condition: New
