ICON | 23-24 FSD 4.5in FRONT 2.5 VS RR CDEV PAIR - F-250 / F-350 2023-2025

ICON - Suspension Shock Absorber Set

Description

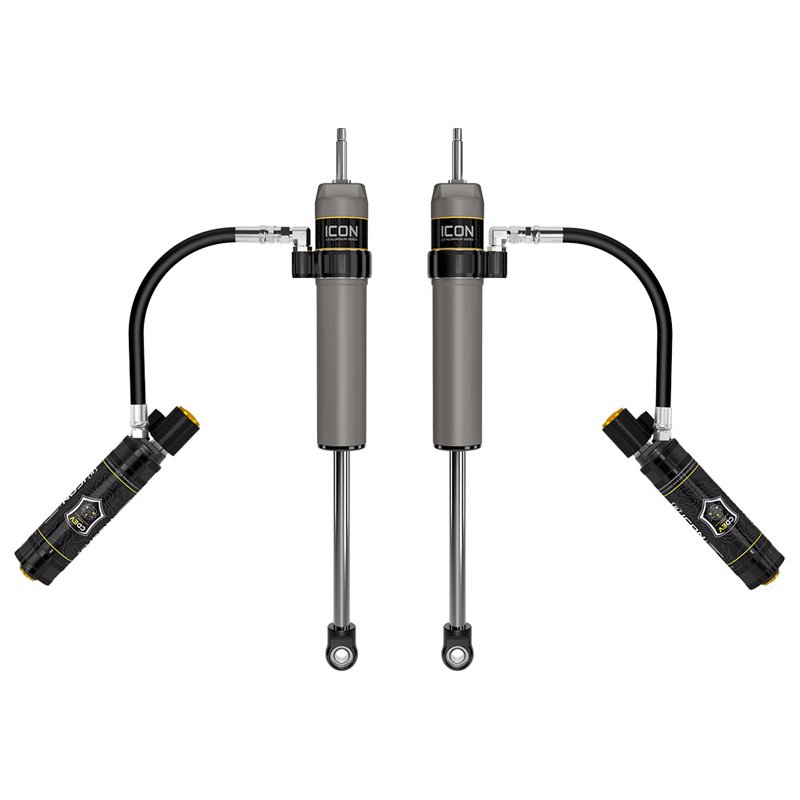

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. Remoyte reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Characteristics

• 30: Yes
• 3390: Performance
• 359: 2.5 IN
• 408: Center of Eylet
• 409: Shoulder of Stem
• 48: EYELET
• 49: Stem
• 50: NO
• 51: Yes
• 905: 2.25 IN
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Add-On Part: 37705EP - 17-24 FSD 0-3" REAR 2.5 VS PB CDEV PAIR
• Add-On Part: 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
• Add-On Part: 61721E - 17-24 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT
• Add-On Part: 93502 - 23-24 FSD IIC INSTALL KIT
• Adjustable Damping: Yes
• Cylinder Color: Gray
• Cylinder Diameter: 2.5 IN
• Cylinder Material: Aluminum
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• External Reservoir: Yes
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
• Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome

Attributs

• 6061 aircraft grade aluminum CNC machined components
• 7/8” diameter induction hardened, chrome plated shock shaft
• Fully rebuildable and retunable

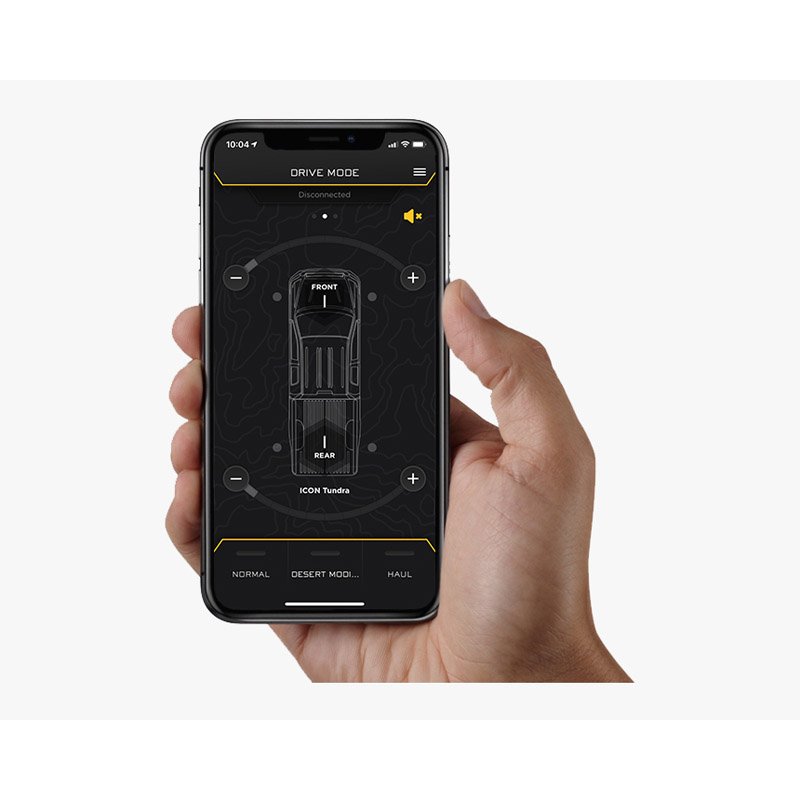

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• Remote reservoirs maintain cooler operating temperatures during extended off-road use and allow for longer suspension travel
