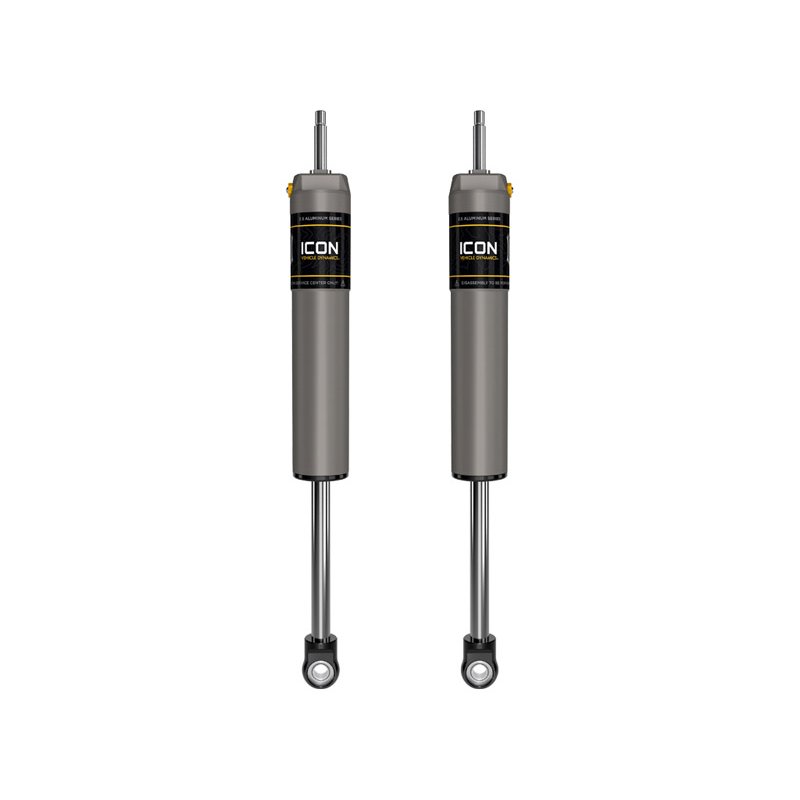

ICON | 23-24 FSD 4.5in FRONT 2.5 VS IR PAIR - F-250 / F-350 2023-2025

ICON - Suspension Shock Absorber Set

Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 Internal Reservoir shocks provide improved suspension performance, better ride quality, and heat dissipation properties than the standard 2.0 Aluminum Series Internal Reservoir shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

Characteristics

• 30: Yes
• 3390: Performance
• 359: 2.5 IN
• 408: Center of Eylet
• 409: Shoulder of Stem
• 48: EYELET
• 49: Stem
• 50: NO
• 51: Yes
• 905: 2.25 IN
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable Damping: No
• Cylinder Color: Gray
• Cylinder Diameter: 2.5 IN
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: NO
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 257305 - 7/8 SHAFT 13.00 OAL, 8.75 TRAVEL
• Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome

Attributs

• 100% Rebuildable
• 100% Revalveable
• 6061 aircraft grade aluminum CNC machined components
• 7/8” diameter induction hardened, chrome plated shock shaft
• Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
• Nitrogen charged monotube design with internal reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware

Note:

• FREE Delivery
