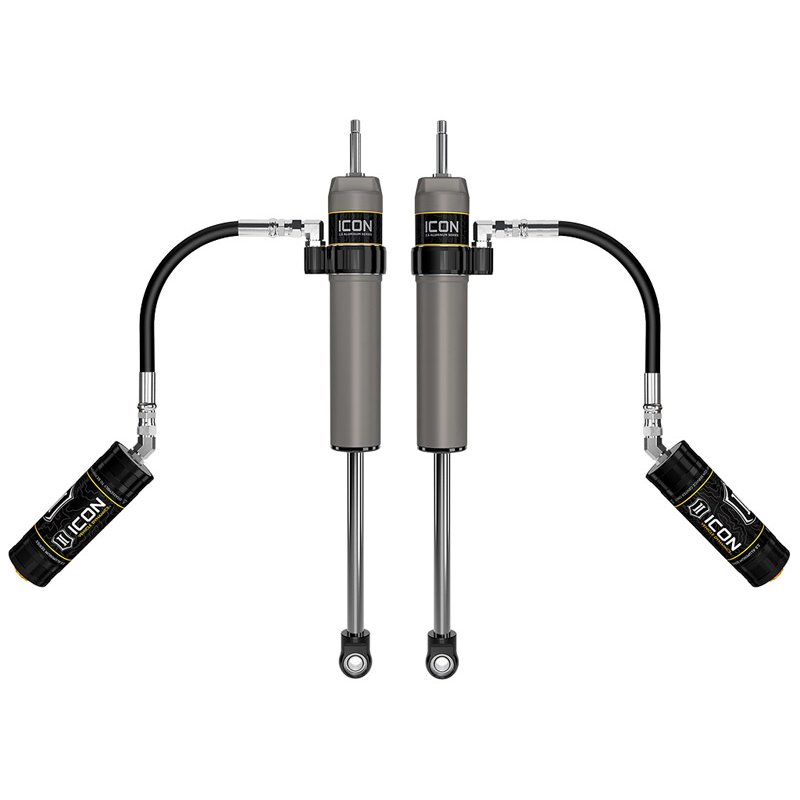

ICON | 24 TACOMA 0-1in REAR 2.5 VS RR PAIR - Tacoma 2.4T 2024-2025

ICON - Suspension Shock Absorber Set

Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Characteristics

• 30: Yes
• 3390: Performance
• 359: 2.5 IN
• 408: Center of Eylet
• 409: Shoulder of Stem
• 48: Eyelet
• 49: Stem
• 50: Yes
• 51: Yes
• 905: 2.25 IN
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: No
• Cylinder Color: Grey
• Cylinder Diameter: 2.5 IN
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome

Attributs

• 6061 aircraft grade aluminum CNC machined components
• 7/8” diameter induction hardened, chrome plated shock shaft
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Fully rebuildable and re-tunable
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Rubber dust boot included for added shaft protection
