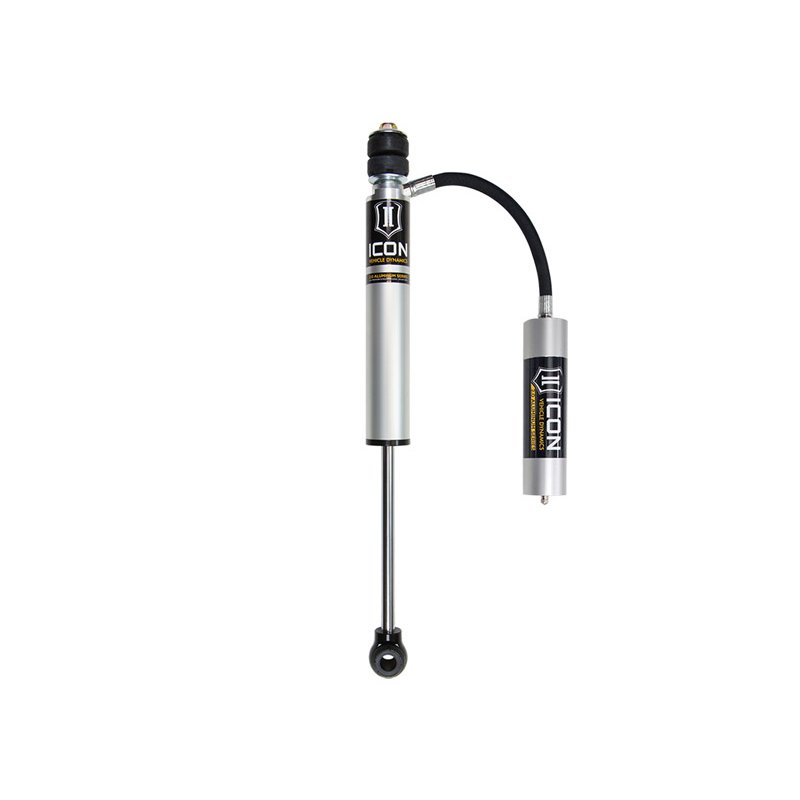

ICON | 24 TACOMA 0-1in REAR 2.0 VS RR - Tacoma 2.4T 2024-2025

ICON - Suspension Shock Absorber

Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Characteristics

• 10526: Digressive
• 10526: Linear
• 10527: No
• 10528: No
• 10529: No
• 10530: Passive
• 10535: 1 IN
• 1183: .625 IN
• 1385: Gray
• 17: Gray
• 17: Silver
• 200: Anodized
• 222: Chrome
• 30: No
• 3065: 2 IN
• 3085: Single Tube
• 3390: Performance
• 408: Center of Eyelet
• 409: Shoulder of Stem
• 48: Eyelet
• 49: Stem
• 50: No
• 51: Yes
• 5126: Gray
• 52: 2 IN
• 621: Aluminum
• 7233: No
• 8703: Yes
• 9388: Rubber
• 9444: No
• 9476: Yes
• 9783: No
• 9792: No
• 9908: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Damping: No
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Bushing Material: Rubber
• Cylinder Finish: Anodized
• Cylinder Material: Aluminum
• Damping Type: Oil
• Dust Shield: No
• External Reservoir: Yes
• Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
• Shaft Diameter: 0.625 IN
• Suspension Type: Spring

Attributs

• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Fully rebuildable and re-tunable
• Nitrile rubber top out bumper for noise free operation
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Rubber dust boot included for added shaft protection
