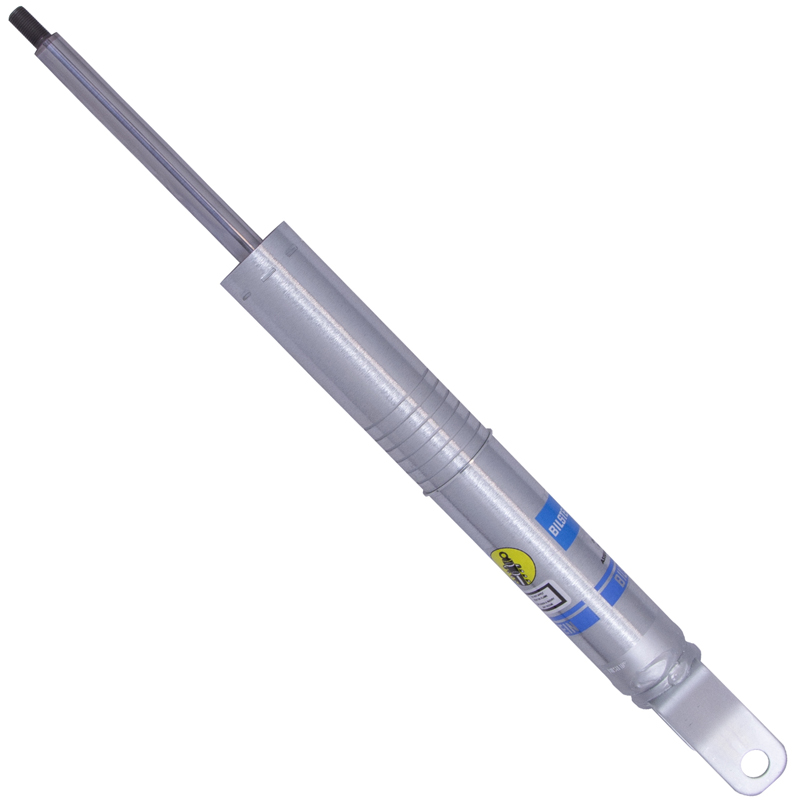

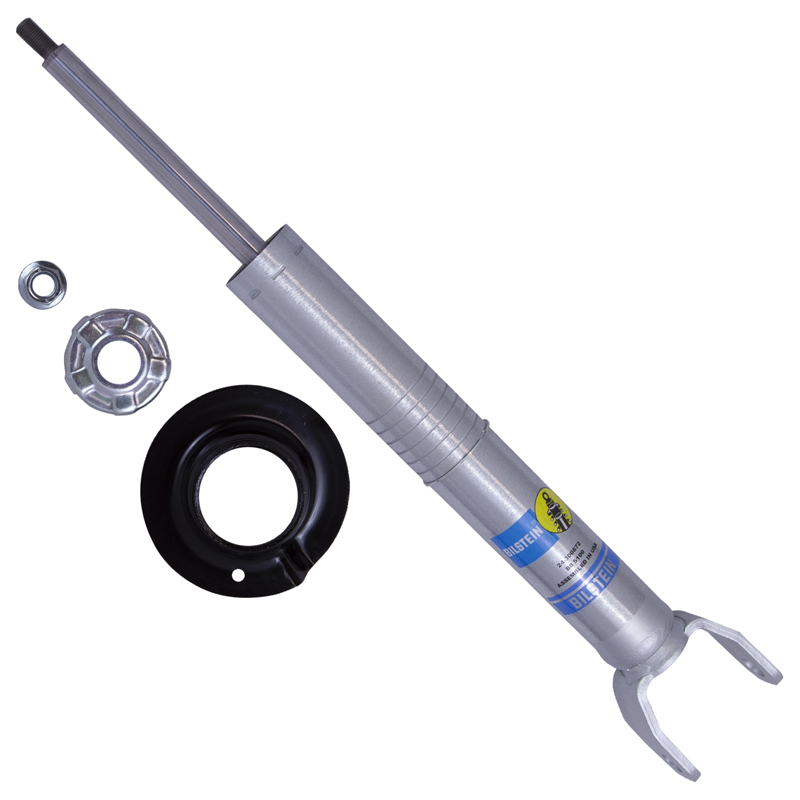

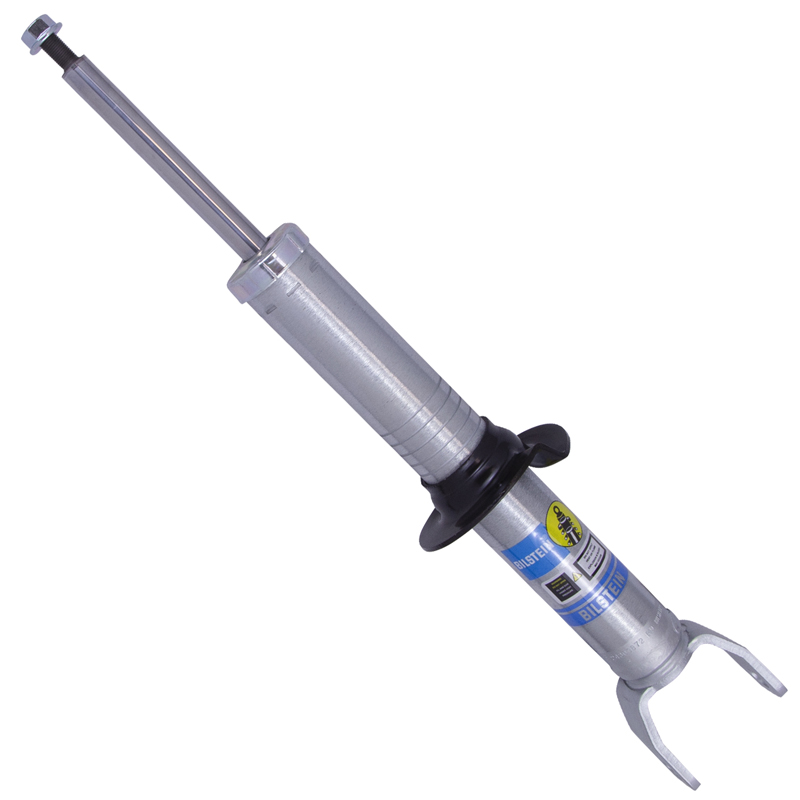

Bilstein | B8 5100 Ride Height Adj. Shock Absorber Front - Ram 1500 2019-2024

24-300872
Bilstein B8 5100 – Front Ride Height Adj. Shock Absorber (24-300872) for Ram 1500. 46mm monotube, zinc plated, 0-2.6" lift, coil springs. (See Application Section)
Free Shipping
CAD $242.96 CAD $269.95 Save 10%

Quantity

In Stock (Updated Every 24H)
  • PROUDLY CANADIAN
  • BEST PRICE GUARANTEE
  • GUARANTEED FITMENT

Bilstein – B8 5100 Ride Height Adjustable

Description

Bilstein B8 5100 Ride Height Adjustable shock absorbers (ref. 24-300872) are designed for Ram 1500 trucks with front OE coilover-style suspension and coil springs. Multiple snap-ring grooves allow the spring seat to be repositioned for 0 to 2.6 inches of front lift, depending on vehicle configuration. Their 46mm monotube design delivers consistent fade-free performance with a patented digressive piston. Condition: New. Sold and shipped by Truck Expert.

Specifications

  • Reference: 24-300872
  • Brand: Bilstein
  • Series: B8 5100 (Ride Height Adjustable)
  • Design: 46mm Monotube
  • Finish: Zinc Plated
  • Front Lift: 0 to 2.6" (depending on configuration)
  • Collapsed Length: 406.5mm (16.00 in)
  • Extended Length: 560.9mm (22.08 in)
  • Upper Mount Type: Stem
  • Lower Mount Type: Clevis
  • Spring Seat Included: Yes
  • Compatibility: Ram 1500 (See Application Section)
  • Warranty: Limited Lifetime
  • Condition: New



Note:

  • FREE Delivery

Dodge / Ram

2020-2023 Ram 1500 Rebel V6 3.0L Turbo Diesel SEE NOTE1
2019-2023 Ram 1500 Rebel V6 3.0L Turbo Diesel SEE NOTE2
2020-2023 Ram 1500 Big Horn / Laramie / Lone Star / Tradesman V6 3.0L Turbo Diesel SEE NOTE3
2022-2023 Ram 1500 HFE V6 3.0L Turbo Diesel SEE NOTE3
2020-2021 Ram 1500 Laramie Longhorn V6 3.0L Turbo Diesel SEE NOTE3
2021-2023 Ram 1500 Limited Longhorn V6 3.0L Turbo Diesel SEE NOTE3
2021 Ram 1500 Longhorn V6 3.0L Turbo Diesel SEE NOTE3
2019-2022 Ram 1500 Big Horn / HFE / Laramie / Lone Star V6 3.0L Turbo Diesel SEE NOTE4
2019-2021 Ram 1500 Laramie Longhorn V6 3.0L Turbo Diesel SEE NOTE4
2021-2022 Ram 1500 Limited Longhorn V6 3.0L Turbo Diesel SEE NOTE4
2021 Ram 1500 Longhorn V6 3.0L Turbo Diesel SEE NOTE4
2020-2022 Ram 1500 Tradesman V6 3.0L Turbo Diesel SEE NOTE4
2023 Ram 1500 Big Horn / HFE / Laramie / Limited Longhorn / Lone Star / Tradesman V6 3.0L Turbo Diesel SEE NOTE5
2019 Ram 1500 Tradesman V6 3.0L Turbo Diesel SEE NOTE6
2019-2024 Ram 1500 Rebel V6 3.6L SEE NOTE2
2019-2022 Ram 1500 Big Horn / HFE / Laramie / Lone Star V6 3.6L SEE NOTE4
2019-2021 Ram 1500 Laramie Longhorn V6 3.6L SEE NOTE4
2021-2022 Ram 1500 Limited Longhorn V6 3.6L SEE NOTE4
2021 Ram 1500 Longhorn V6 3.6L SEE NOTE4
2020-2022 Ram 1500 Tradesman V6 3.6L SEE NOTE4
2023-2024 Ram 1500 Big Horn / HFE / Laramie / Limited Longhorn / Lone Star / Tradesman V6 3.6L SEE NOTE5
2019 Ram 1500 Tradesman V6 3.6L SEE NOTE6
2019-2024 Ram 1500 Rebel V8 5.7L SEE NOTE2
2019-2022 Ram 1500 Big Horn / HFE / Laramie / Lone Star / Tradesman V8 5.7L SEE NOTE4
2019-2021 Ram 1500 Laramie Longhorn V8 5.7L SEE NOTE4
2021-2022 Ram 1500 Limited Longhorn V8 5.7L SEE NOTE4
2021 Ram 1500 Longhorn V8 5.7L SEE NOTE4
2023-2024 Ram 1500 Big Horn / HFE / Laramie / Limited Longhorn / Lone Star / Tradesman V8 5.7L SEE NOTE5
2019 Ram 1500 Tradesman V8 5.7L SEE NOTE6
2021-2024 Ram 1500 Rebel V8 6.2L Supercharged SEE NOTE2
2021-2022 Ram 1500 Big Horn / HFE / Laramie / Limited Longhorn / Lone Star / Tradesman V8 6.2L Supercharged SEE NOTE4
2021 Ram 1500 Laramie Longhorn / Longhorn V8 6.2L Supercharged SEE NOTE4
2023-2024 Ram 1500 Big Horn / HFE / Laramie / Limited Longhorn / Lone Star / Tradesman V8 6.2L Supercharged SEE NOTE5

Note 1: Provides 0-1.6" Front Lift; Without Air Suspension;; Front Spring Type: Coil
Note 2: Provides 0-2" Front Lift; Without Air Suspension;; Front Spring Type: Coil
Note 3: Provides 0-2.6" Front Lift without factory Off-Road Package; 0-1.6" Front Lift with factory Off-Road Package; Without Air Suspension;; Front Spring Type: Coil
Note 4: Provides 0-2.6" Front Lift without factory Off-Road Package; 0-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension;; Front Spring Type: Coil
Note 5: Provides 0-2.6" Front Lift without factory Off-Road Package; 0-2" Front Lift with factory Off-Road Package; Without Air Suspension;; Front Spring Type: Coil
Note 6: Without Air Leveling Suspension; Provides 0-2.6" Front Lift without factory Off-Road Package; 0-2" Front Lift with factory Off-Road Package;; Front Spring Type: Coil
