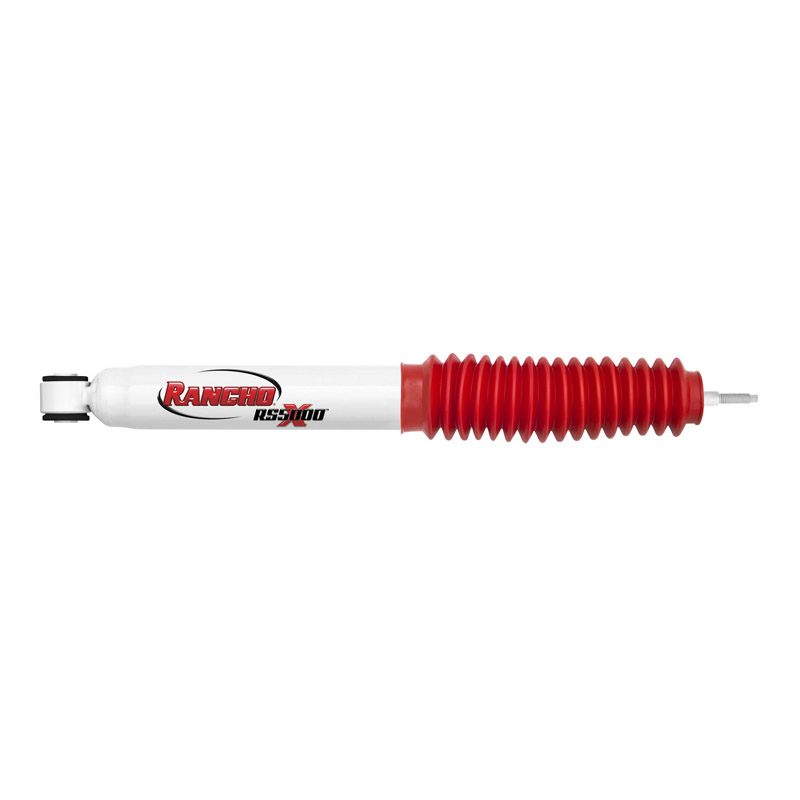

Rancho | Shock Absorber - Tundra 2007-2021

Rancho - Suspension Shock Absorber

Description

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

Characteristics

• 10526: Progressive
• 10527: No
• 10528: No
• 10529: No
• 10530: Passive
• 10531: Painted
• 10534: 0 IN
• 10535: 0 IN
• 107: 14.73 IN
• 107: 374.1 MM
• 108: 9.65 IN
• 108: 245.1 MM
• 1183: 0.622 IN
• 1183: 15.8 MM
• 1385: White
• 17: White
• 200: Painted
• 222: Nitrocarburized
• 2329: Steel
• 26: Telescopic
• 30: Yes
• 3065: 2.251 IN
• 3065: 57.2 MM
• 3085: Twin Tube
• 3390: Performance
• 37: 24.38 IN
• 37: 619.3 MM
• 38: 9.65 IN
• 38: 245.1 MM
• 408: Center of Loop
• 409: Base of Stem
• 50: Yes
• 51: Yes
• 5126: White
• 52: 2.251 IN
• 52: 57.2 MM
• 621: Steel
• 7233: No
• 8703: Yes
• 9388: Rubber
• 9444: No
• 9476: No
• 9615: No
• 9618: No
• 9619: No
• 9620: No
• 9621: No
• 9783: No
• 9786: 2.99 IN
• 9786: 75.946 MM
• 9792: No
• 9801: 35 MM
• 9908: Yes
• Adjustable Damping: No
• Air Adjustable: No
• Air Ride Suspension: No
• Bearing Plate Included: No
• Coil Over Springs Included: No
• Dust Shield Color: Red
• Lower Mount Code: LS38
• Lower Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
• New Or Remanufactured: New
• Parts Pack(s): P01167
• Shock Absorber Bore Size: 1.3779527559055118 IN
• Spring Included: No
• Spring Isolators Included: No
• Spring Seat Included: No
• Upper Mount Code: S5
• Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch

Attributs

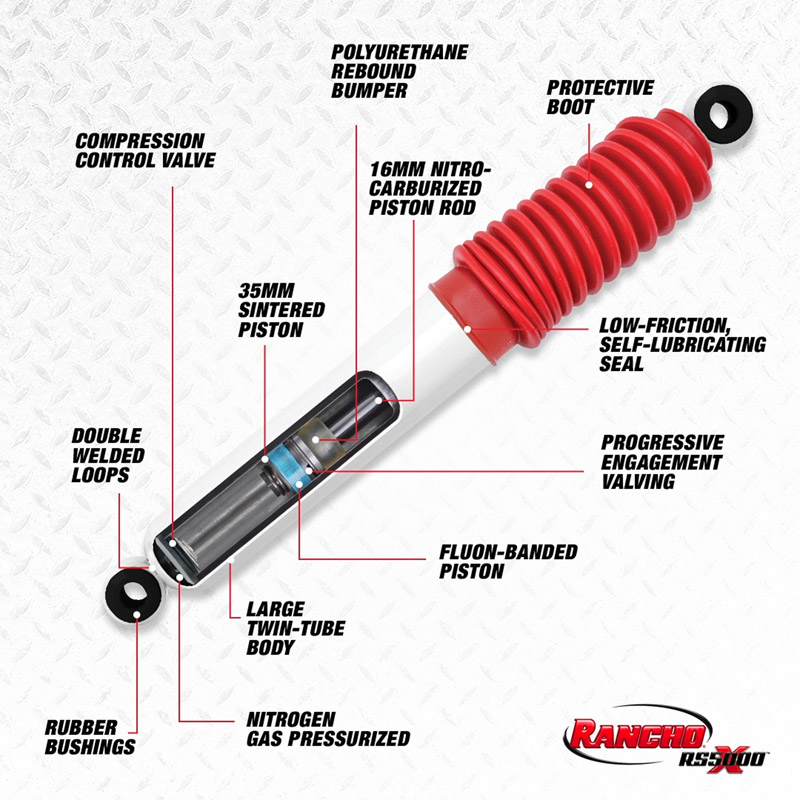

• BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
• BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
• HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
• IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
• MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
• MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
• REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
• SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
• STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
