Mishimoto – Compact Baffled Oil Catch Can

Description

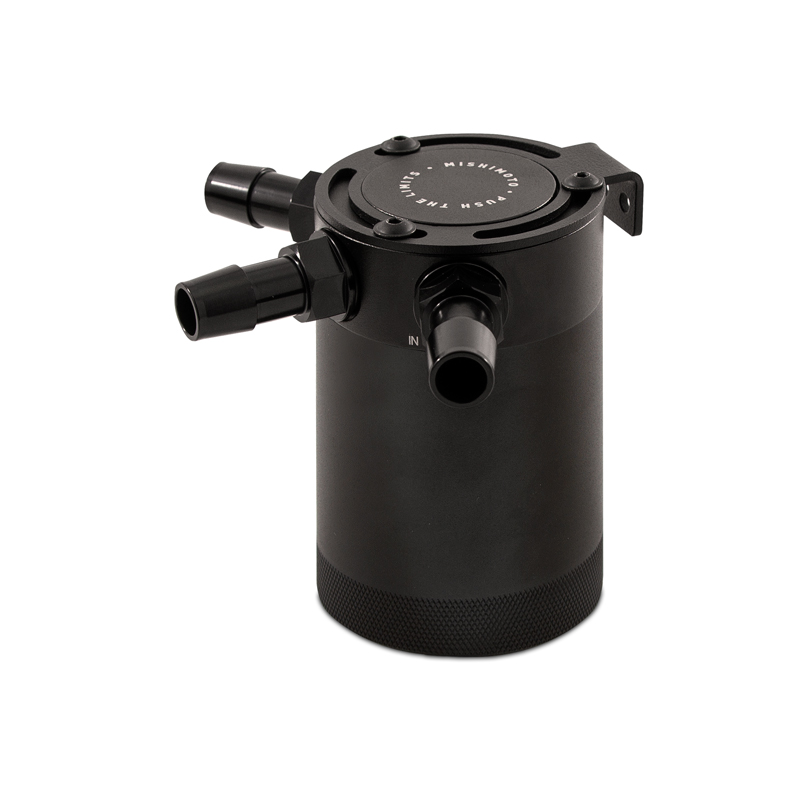

The Mishimoto Compact Baffled Oil Catch Can (MMBCC-CBTHR-BK) is available in a 3-port configuration and designed to separate oil particles from PCV/CCV air before it reaches the intake. The internal air diverter keeps air turbulating longer to maximize separation, while the 50-micron bronze filter catches remaining contaminants. An internal baffle prevents oil splash under race conditions. The 100% billet 6061 aluminum can features 3/8 NPT threads and supports multiple mounting angles. Unlike heated AOS systems that drain blow-by back into the oil pan, this catch can permanently traps contaminants. The can is 100% washable. Backed by the Mishimoto Lifetime Warranty.

Specifications

• Brand: Mishimoto
• Part Number: MMBCC-CBTHR-BK
• Category: Oil Separator / Oil Catch Can
• Number of Ports: 3
• Color: Black
• Finish: Anodized
• Material: 6061 Billet Aluminum
• Seals: Viton O-rings
• Filter: 50-Micron Bronze
• Capacity: 3 fl. oz.
• Threads: 3/8 NPT (inlet, outlet, drain)

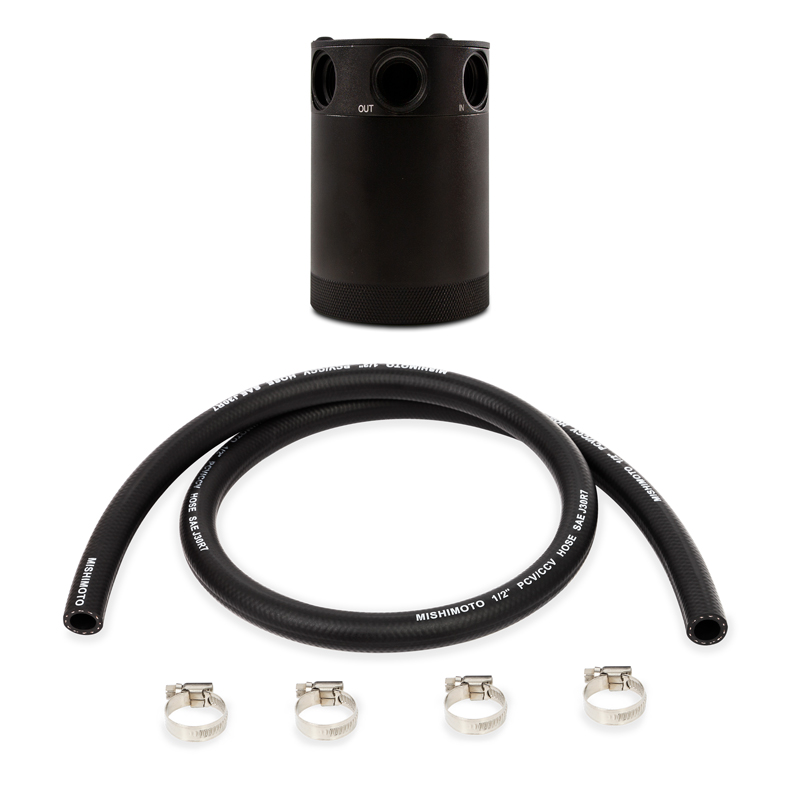

• Includes 3 CNC-machined aluminum 1/2in barbed hose fittings
• Condition: New
• Sold and shipped by Truck Expert
