Dynomax – Super Turbo Muffler

Description

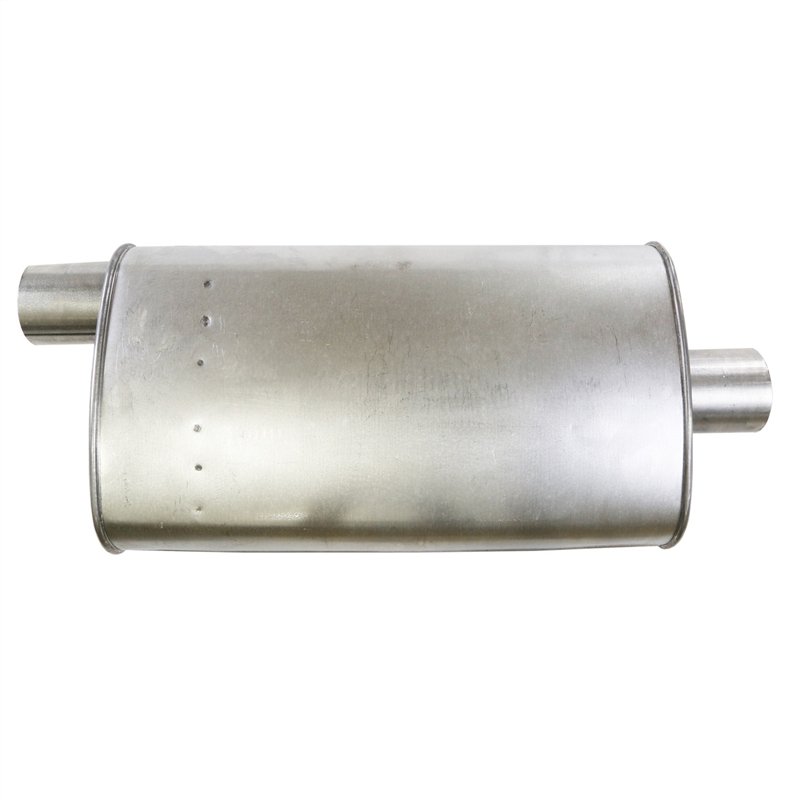

The Dynomax Super Turbo Muffler (part no. 17769) is the largest-body variant in the Super Turbo lineup, engineered for truck and heavy-duty performance applications that demand maximum internal volume. Featuring an oval body measuring 5.5 in. H × 11 in. W × 20 in. L with a 27 in. overall length, it provides superior exhaust sound absorption and flow management for larger-displacement engines. The 3.0 in. single offset inlet and 3.0 in. center outlet deliver flexible routing for vehicles with center-exit exhaust configurations. The reversible design adds even more installation versatility. The exclusive patented flow director channels exhaust flow and eliminates turbulence, while large internal flow tubes improve exhaust gas flow and reduce backpressure. Fiberglass matting technology absorbs unwanted interior resonance while maintaining a mellow performance tone. Dyno proven up to 700 SCFM / 636 HP. Backed by a limited lifetime warranty and 90-Day Performance & Sound Guarantee. Made in USA.

Specifications

• Brand: Dynomax
• Part Number: 17769
• Application: Universal fit (HD/truck size)
• Material: Aluminized Steel
• Body Shape: Oval (large format)
• Body Dimensions: 5.5 in. H × 11 in. W × 20 in. L
• Overall Length: 27 in.
• Inlet Inside Diameter: 3.0 in. – Type: Single Offset
• Outlet Outside Diameter: 3.0 in. – Type: Center Outlet
• Reversible: Yes
• Patented Flow Director: Yes
• Flow Rating: Up to 700 SCFM / 636 HP max.
• Warranty: Limited Lifetime + 90-Day Sound & Performance Guarantee
• Condition: New
• Sold and shipped by Truck Expert
