Dynomax | DynoMax Super Turbo Muffler

Dynomax – Super Turbo Muffler

Description

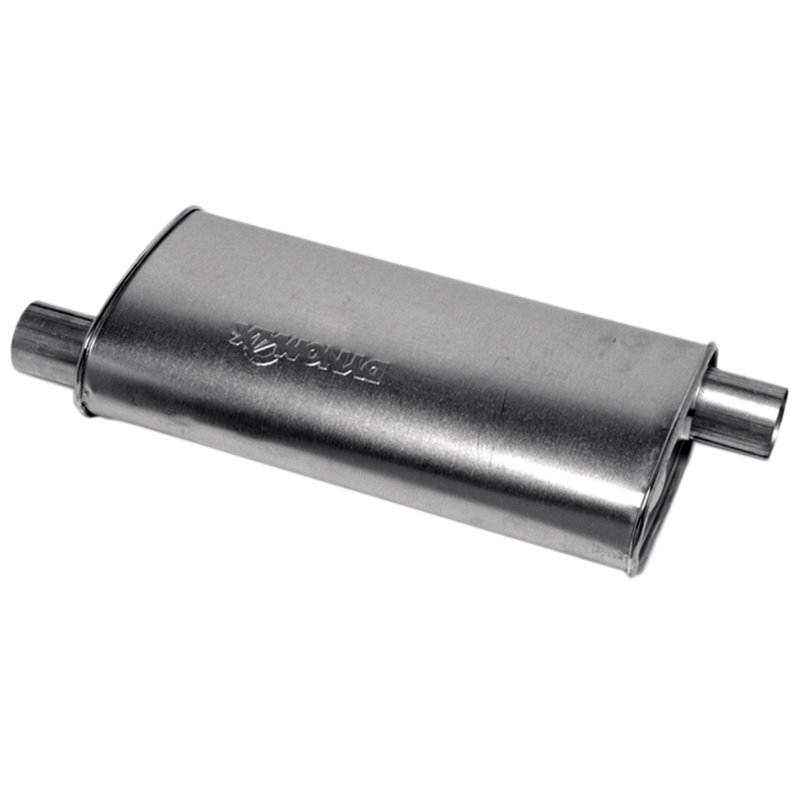

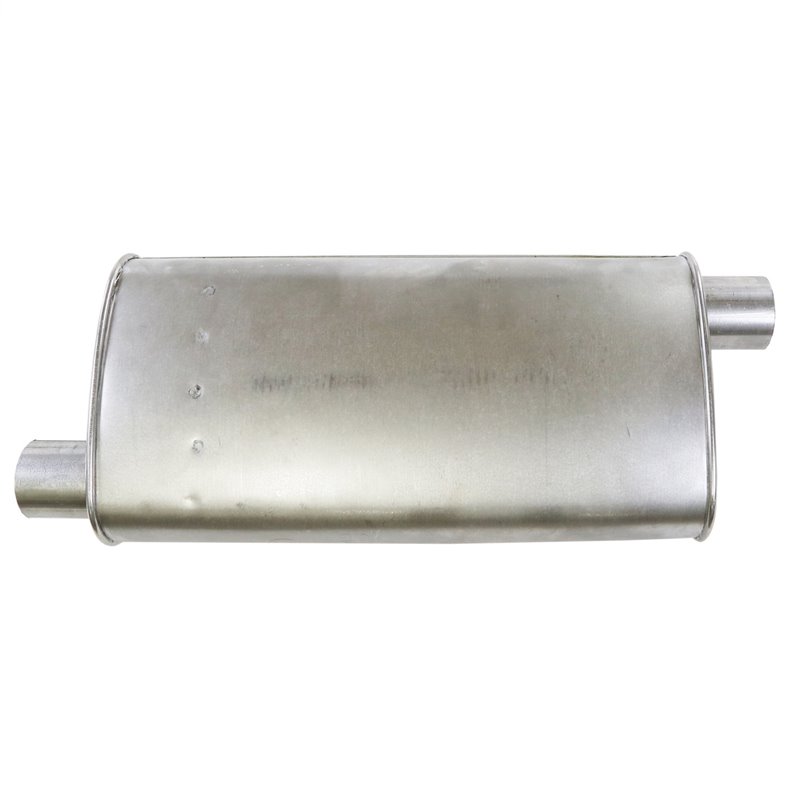

The Dynomax Super Turbo Muffler (part no. 17749) is the offset-in / offset-out variant of the 2.5 in. long-body Super Turbo lineup, offering the same large oval body dimensions as the 17748 (4.25 in. H × 9.75 in. W × 20 in. L, 25.5 in. overall) but with a single offset inlet — as opposed to the 17748’s center inlet. This configuration suits vehicles with a fully offset exhaust routing on both ends, such as the Chevrolet C1500. The exclusive patented flow director channels exhaust flow and eliminates turbulence, while large internal flow tubes improve exhaust gas flow and reduce backpressure. Fiberglass matting technology absorbs unwanted interior resonance while maintaining a mellow performance tone. Reversible design for maximum installation flexibility. Dyno proven up to 700 SCFM / 636 HP. Backed by a limited lifetime warranty and 90-Day Performance & Sound Guarantee. Made in USA.

Specifications

• Brand: Dynomax
• Part Number: 17749

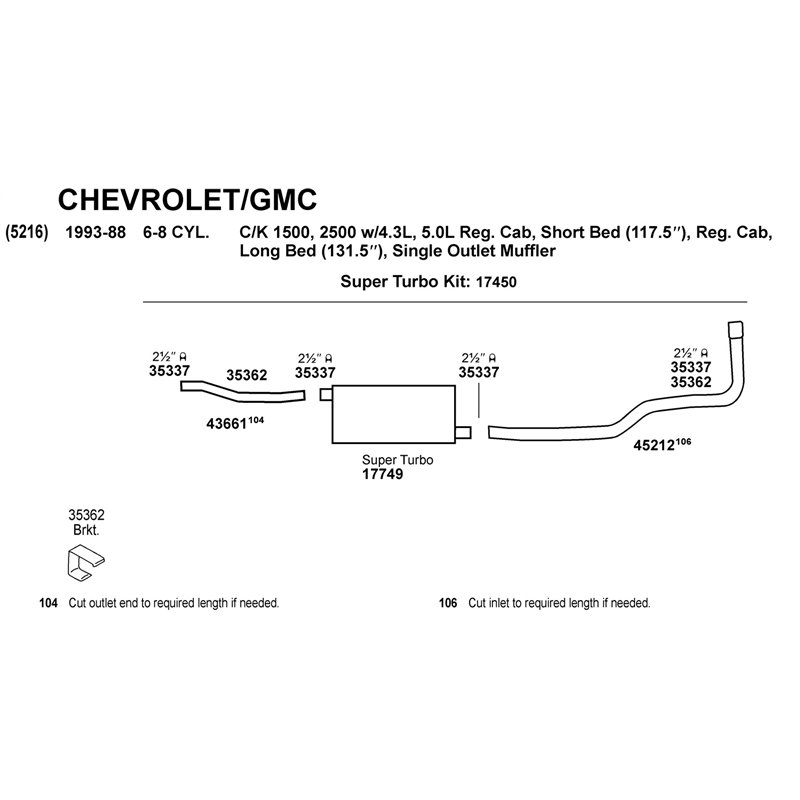

• Application: Universal fit (popular: Chevrolet C1500)
• Material: Aluminized Steel
• Body Shape: Oval
• Body Dimensions: 4.25 in. H × 9.75 in. W × 20 in. L
• Overall Length: 25.5 in.
• Inlet Inside Diameter: 2.5 in. – Type: Single Offset
• Outlet Outside Diameter: 2.5 in. – Type: Single Offset Outlet
• Reversible: Yes
• Patented Flow Director: Yes
• Flow Rating: Up to 700 SCFM / 636 HP max.
• Warranty: Limited Lifetime + 90-Day Sound & Performance Guarantee
• Condition: New
