Dynomax | DynoMax Super Turbo Muffler

Dynomax – Super Turbo Muffler

Description

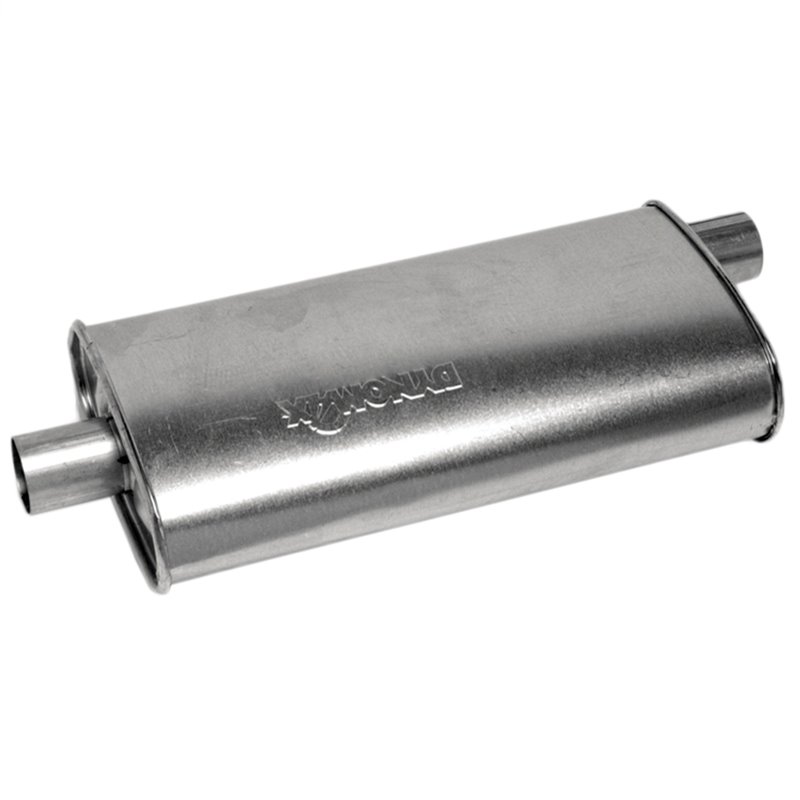

The Dynomax Super Turbo Muffler (part no. 17747) stands out in the Super Turbo lineup with its single center inlet (2.25 in.) paired with a single offset outlet, a long 20 in. oval body (4.25 in. H × 9.75 in. W), and a 25.5 in. overall length. This configuration is particularly suited to vehicles with a center-inlet exhaust system, such as the Jeep Cherokee, where the factory routing requires a straight-through center connection. The exclusive patented flow director design channels exhaust flow and eliminates turbulence, while large internal flow tubes improve exhaust gas flow and reduce backpressure. Fiberglass matting technology absorbs unwanted interior resonance while maintaining a mellow performance tone. Reversible design for installation flexibility. Dyno proven to flow up to 700 SCFM and support up to 636 HP. Backed by a limited lifetime warranty and the exclusive 90-Day Performance & Sound Guarantee. Made in USA.

Specifications

• Brand: Dynomax
• Part Number: 17747

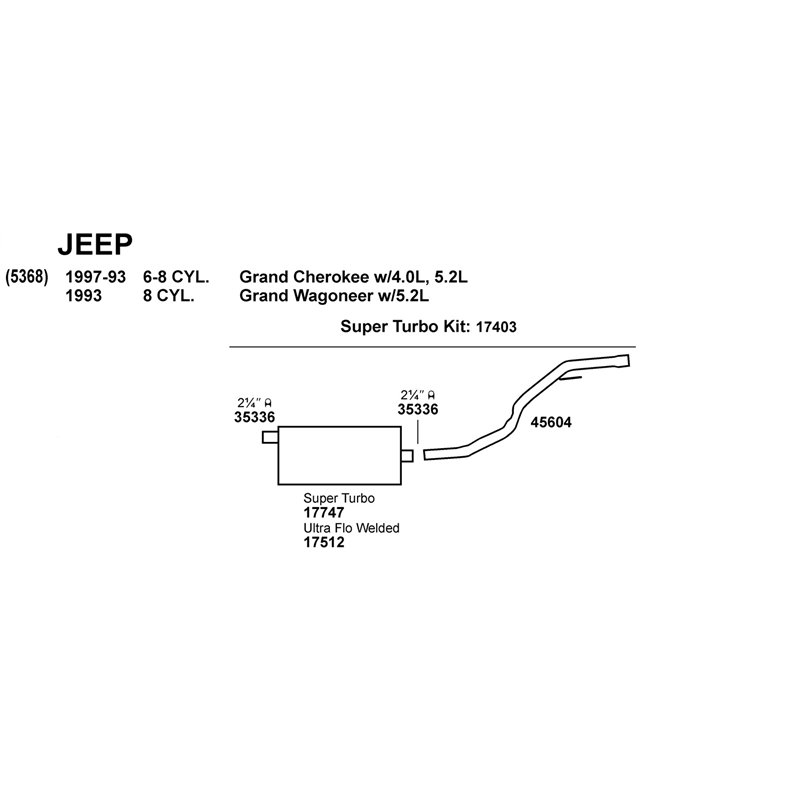

• Application: Universal fit (popular: Jeep Cherokee)
• Material: Aluminized Steel
• Body Shape: Oval
• Body Dimensions: 4.25 in. H × 9.75 in. W × 20 in. L
• Overall Length: 25.5 in.
• Inlet Inside Diameter: 2.25 in. – Type: Single Center
• Outlet Outside Diameter: 2.25 in. – Type: Single Offset Outlet
• Reversible: Yes
• Patented Flow Director: Yes
• Flow Rating: Up to 700 SCFM / 636 HP max.
• Warranty: Limited Lifetime + 90-Day Sound & Performance Guarantee
• Condition: New
• Sold and shipped by Truck Expert
