ICON | 4WD 2.75-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA - F-150 2021-2025

ICON - Suspension Lift Kit

Description

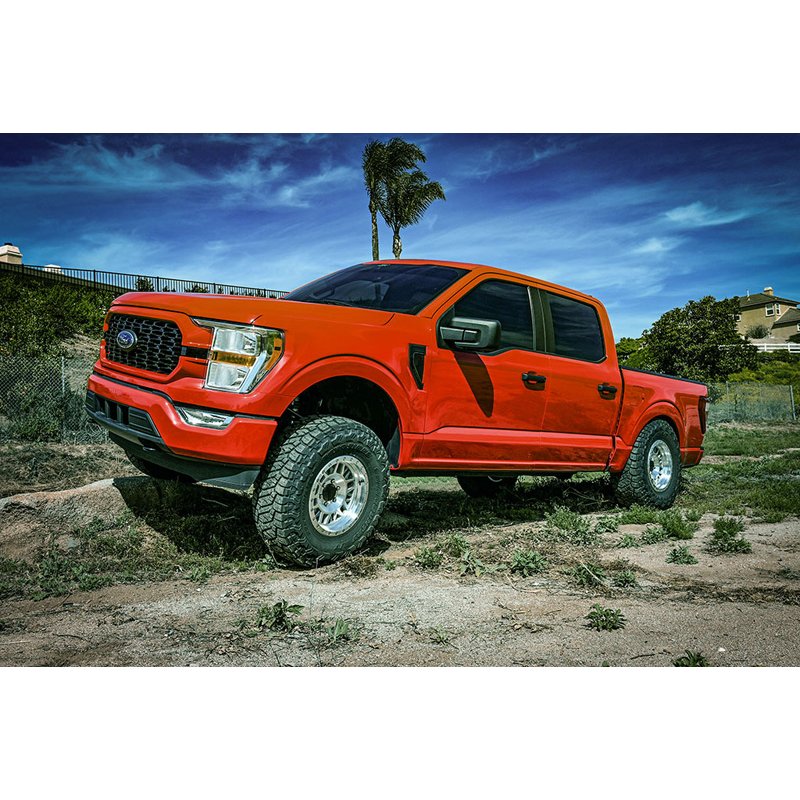

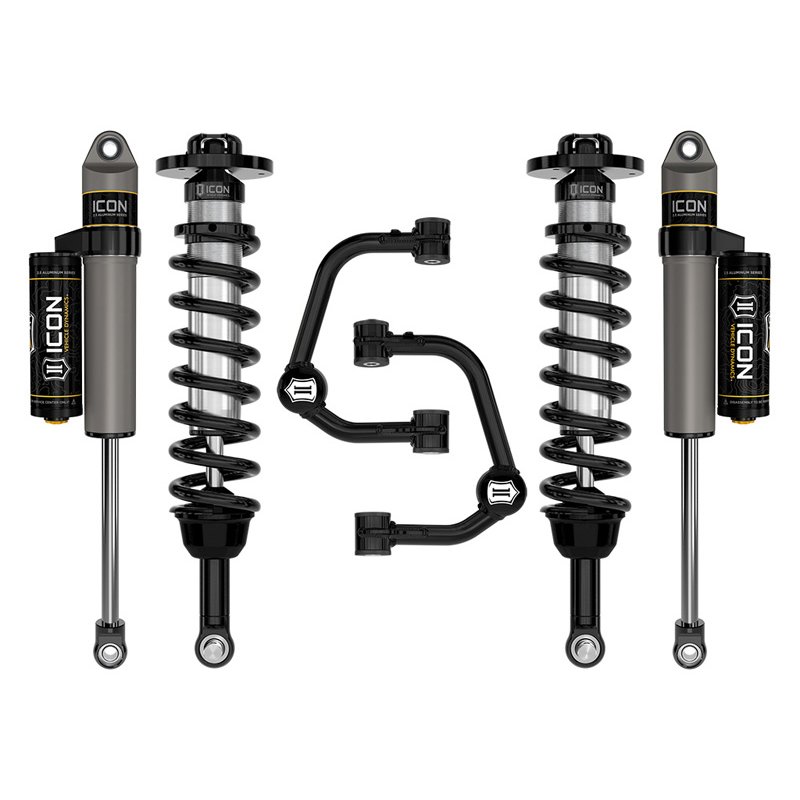

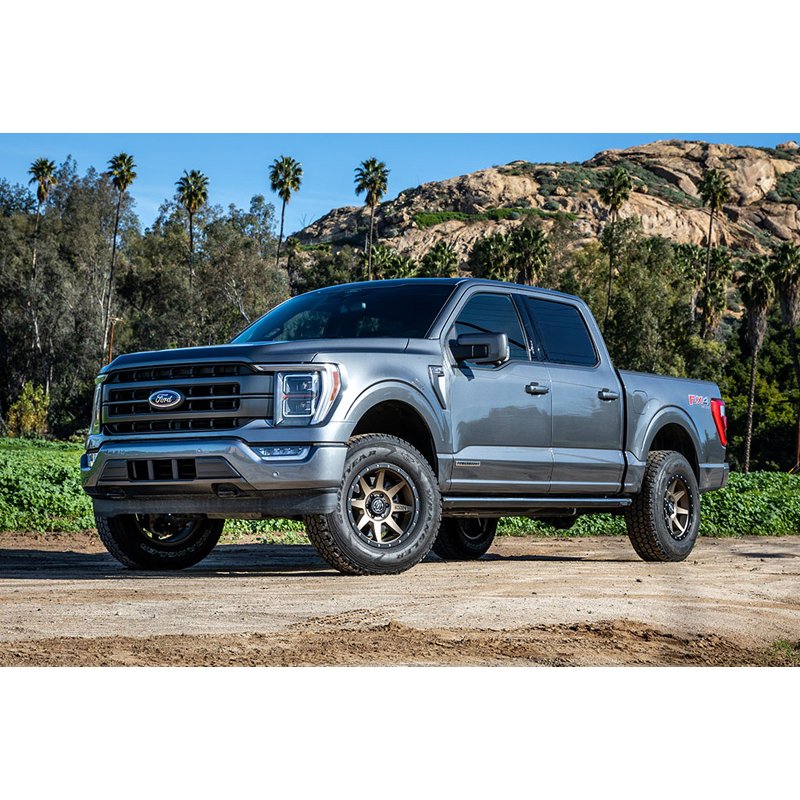

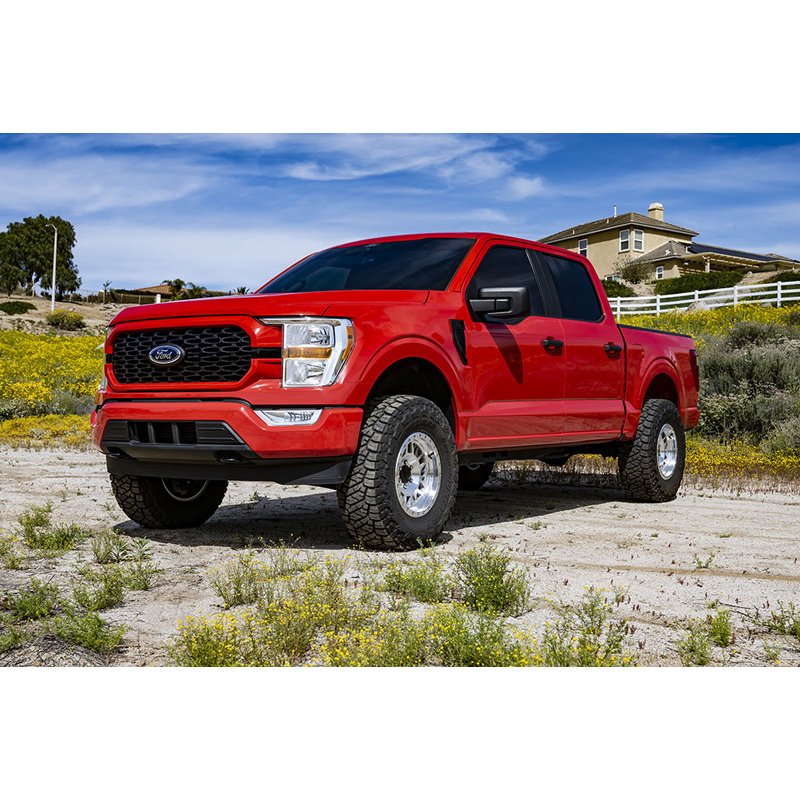

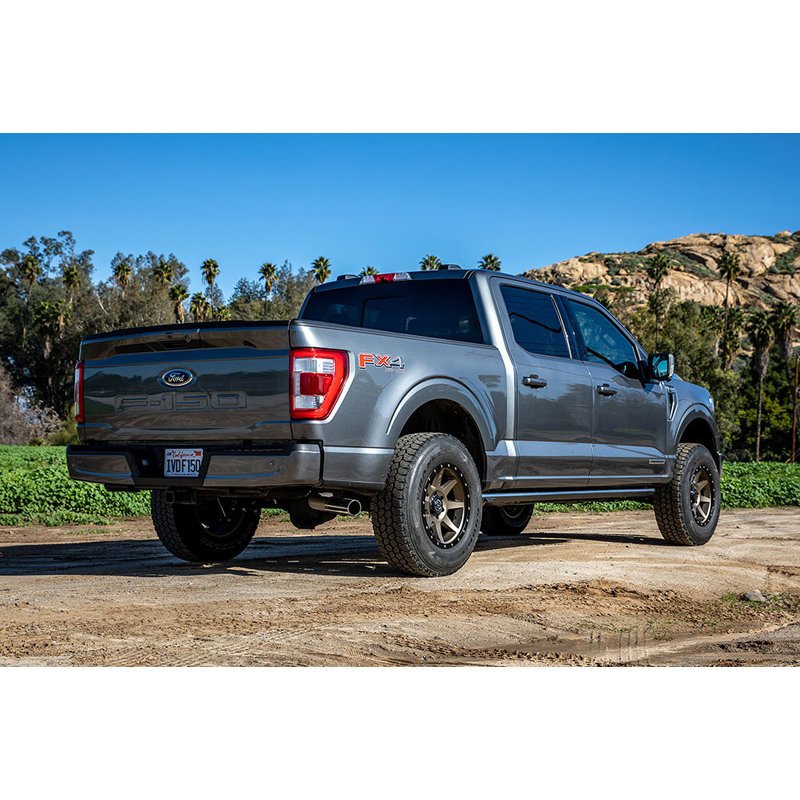

ICON Vehicle Dynamics 2021-2025 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.75-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular Delta Joint Pro upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, increasing caster over stock and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2025 F-150 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Characteristics

• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.5 IN
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Adjustable Compression: No
• Adjustable Control Arm: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Coil Quantity Front: 2
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5 IN
• Maximum Lift Front: 3.5 IN
• Minimum Lift Front: 2.75 IN
• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5 IN
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset

Attributs

• Adjustable coilovers offer 2.75-3.5" of front lift height over stock

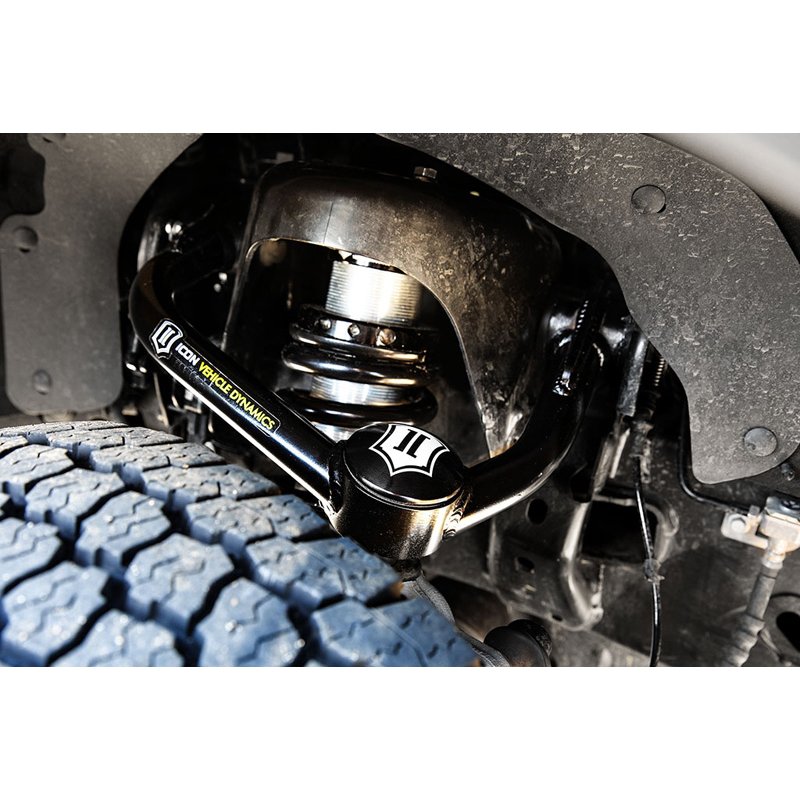

• Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
