ReadyLift | Suspension Lift Kit - Silverado / Sierra 2500 HD / 3500 HD 6.0L / 6.6L 2011-2019

ReadyLift - Suspension Lift Kit

Description

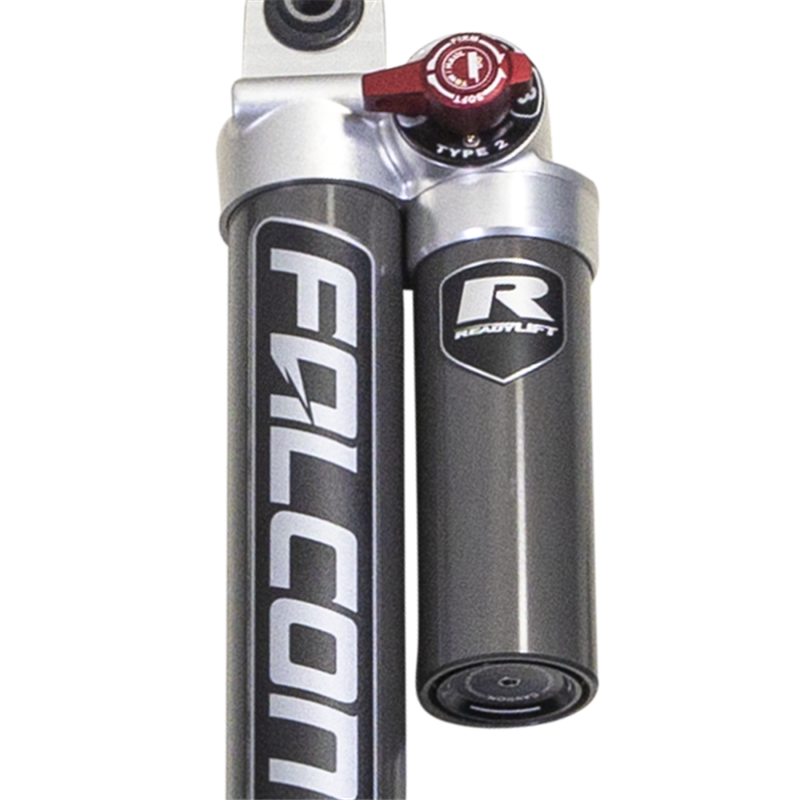

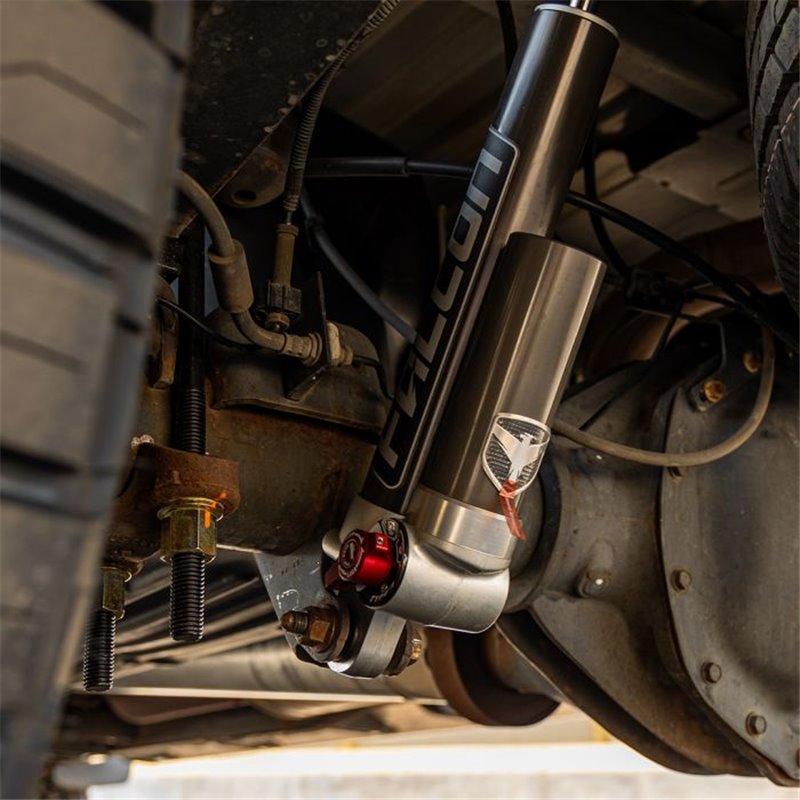

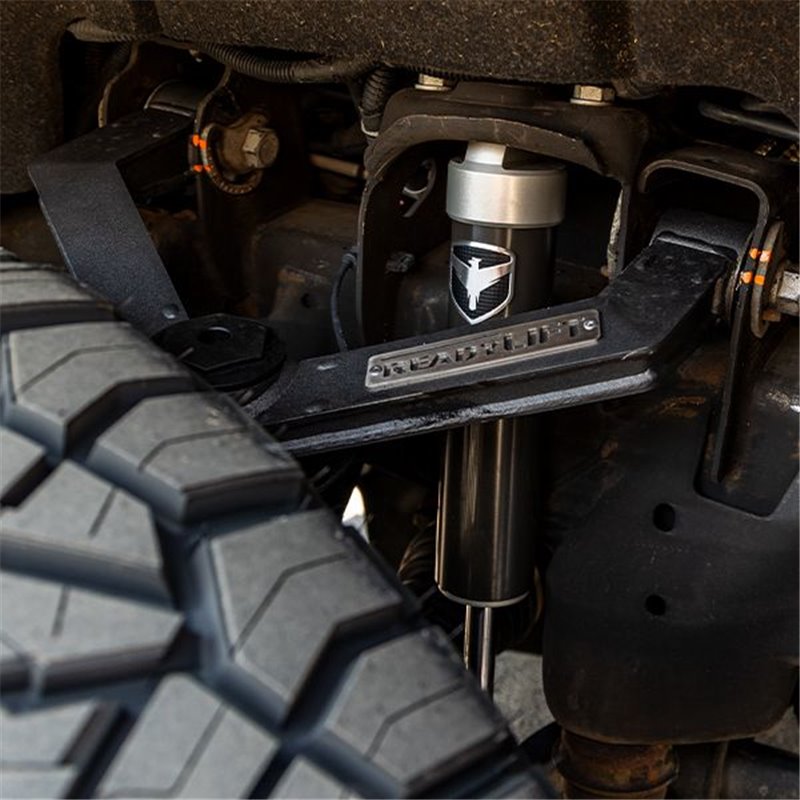

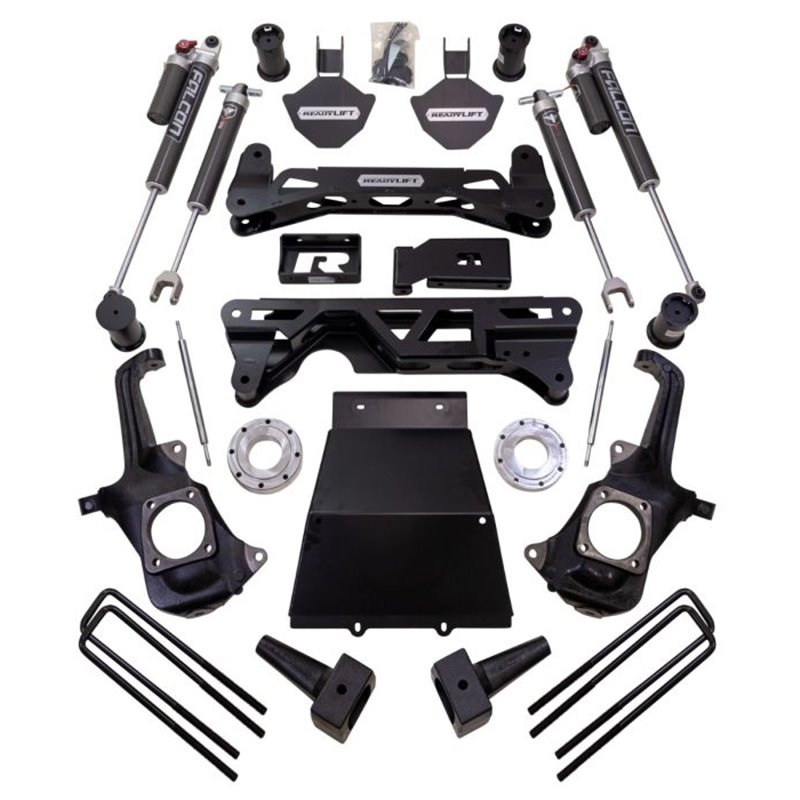

Features:- Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.- Improved dynamic roll control and low-speed damping.- Dramatic improvement in on-road comfort and off-road performance.- Optimized fitment for unobstructed suspension travel and articulation.- 6061-T6 aluminum alloy shock body resists Impact to protect internal components.- Smooth-honed internal shock body surface for long-term performance.- 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.- Large shaft diameter provides a wide range of adjustments on adjustable shocks.- Hard anodized 6061-T6 aluminum alloy billet piston.- 1-piece Teflon bronze piston wear band w/ O-ring.- Heavy-duty fabricated steel components utilizing 3/16? and 1/4? steel plate- Full-coverage differential skid plate constructed from 3/16? steel plate- Laser cut, CNC formed heavy-duty front/rear drop crossmembers.- 5”-6” lift allows up to 35x12.50 with a 20×9” with 0 offsetNOTE: Some SRW (Single Rear Wheel) models may require custom U-Bolts to accommodate the factory tow package. Will not fit DRW (Dual Rear Wheel) applications without custom U-bolts. Towing Capacity will be reduced with the installation of this kit. This kit is primarily designed to only be driven in 2WD at speed on public roads and that 4WD is only to be used off-road or in adverse slow speed conditions due to drive line vibrations at high speeds. A double cardan driveshaft may be required to help eliminate some of the high-speed 4WD front driveline vibrations when kits are 5-8'' high.

Characteristics

• 3097: Yes
• Color: Black
• Fitment: Direct Fitment
• Front Lift Component: Strurt with Crossmember
• Front Lift Height: 6 Inches
• Front or Rear: Front and Rear
• Front Shocks: Yes
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 37 Inch
• Rear Lift Component: Block and U-bolt
• Rear Lift Height: 4 Inches
• Rear Shocks: Yes

Attributs

• 1-piece Teflon bronze piston wear band w/ O-ring
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• 5”-6” lift allows up to 35x12.50 with a 20×9” with 0 offset
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Custom U-bolt length may vary by vehicle application.If the ReadyLIFT kit's standard U-bolts are too short, ReadyLIFT recommends locally sourcing custom U-bolts built to each truck's specifications.
• Dramatic improvement in on-road comfort and off-road performance
• Full-coverage differential skid plate constructed from 3/16? steel plate
• Hard anodized 6061-T6 aluminum alloy billet piston
• Heavy-duty fabricated steel components utilizing 3/16? and 1/4? steel plate
• Improved dynamic roll control and low-speed damping
• Large shaft diameter provides a wide range of adjustments on adjustable shocks
• Laser cut, CNC formed heavy-duty front/rear drop crossmembers
• Note:  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.  Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately.
• Optimized fitment for unobstructed suspension travel and articulation
• Smooth-honed internal shock body surface for long-term performance
• Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners

Note:
