ICON | 24 LAND CRUISER 250 SERIES 1.25-3in LIFT STAGE 1 SUSPENSION SYSTEM - Land Cruiser 2.4T 2024-2025

ICON - Suspension Lift Kit

Description

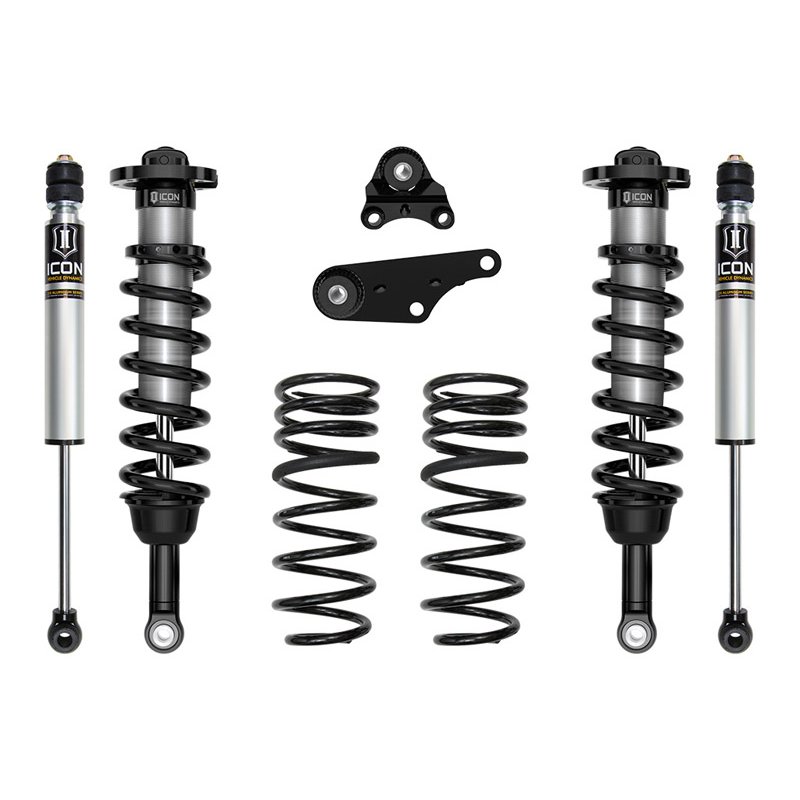

ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Characteristics

• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3 IN
• 7325: 2
• Active or Passive Suspension: Passive
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 54202 - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• Add-On Part: 58452DJ - 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
• Add-On Part: 58552DJ - 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• Add-On Part: 58552GDJ - 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT GOLD ANO
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Coil Quantity Front: 2
• Front Shock Body Diameter: 2.5 IN
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3 IN
• Maximum Lift Rear: 2 IN
• Minimum Lift Front: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Rear Shock Body Diameter: 2 IN
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
• Reservoir Style: Internal

Attributs

• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
