ICON Alloys | 2007-21 Toyota Tundra, 1-3in Lift, Stage 9 Suspension System, Billet UCA - Tundra 2007-2021

Icon Vehicle Dynamics – Stage 9 Suspension System Billet UCA RXT CDCV 1-3" – Toyota Tundra

Description

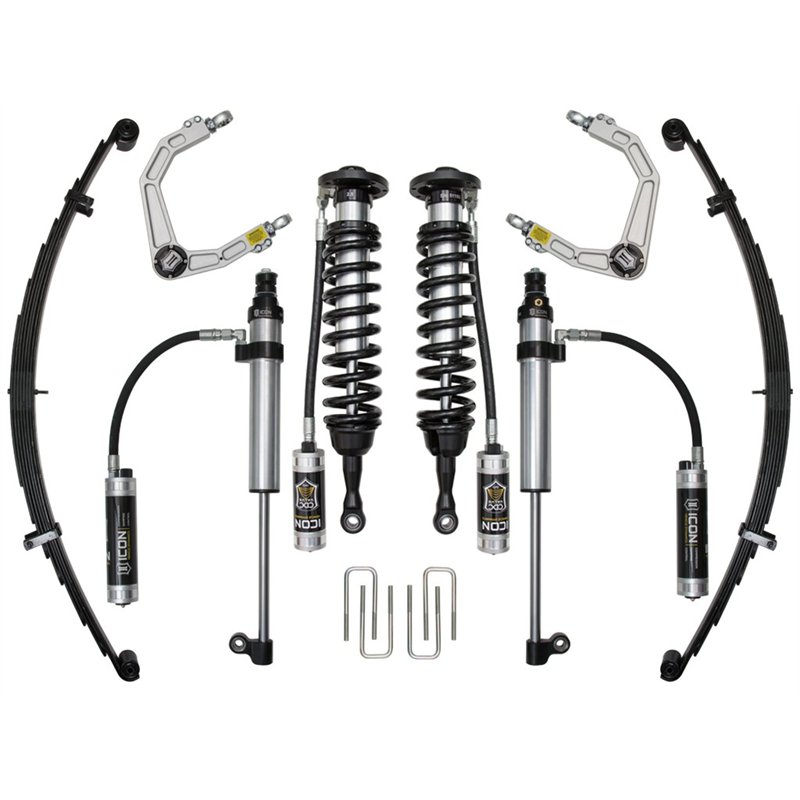

The ICON Vehicle Dynamics Stage 9 Billet UCA Suspension System (ref. K53029) is the most advanced configuration for the Toyota Tundra, combining CDCV coilovers adjustable from 1-3" with 10 settings of compression damping adjustment, ICON billet UCAs, an RXT multi-rate leaf spring with 3 user-adjustable spring rates, and 2.5 Aluminum Series RXT remote reservoir rear shocks with impact-extruded aluminum cylinders and 7/8" shafts. The side-mounted lower eyelet increases rear wheel travel while using the factory mounting location. Ten aluminum reservoirs in the RXT shocks ensure consistent damping. Shocks are fully rebuildable and revalveable. Military wrap eyelets and galvanized leaf separators included. (See Application Section)

Specifications

• Part Number: K53029
• Brand: Icon Vehicle Dynamics
• Front Lift: 1-3" (adjustable)
• Front coilover shocks with CDCV: 10 settings of compression damping adjustment
• ICON billet aluminum UCAs (included)
• 2.5 Aluminum Series RXT remote reservoir rear shocks
• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates
• Side-mounted lower eyelet: increased rear travel using factory mounting location
• 10 aluminum reservoirs in RXT shocks for consistent damping
• Military wrap eyelets, galvanized separators, tip inserts (included)
• Fitment: Toyota Tundra (See Application Section)
• Condition: New
• Sold and shipped by Truck Expert
