ICON | 24 TACOMA 1.25-3in STAGE 5 SUSPENSION SYSTEM TUBULAR WITH TRIPLE RATE SPRING - Tacoma 2.4T 2024-2025

ICON - Suspension Lift Kit

Description

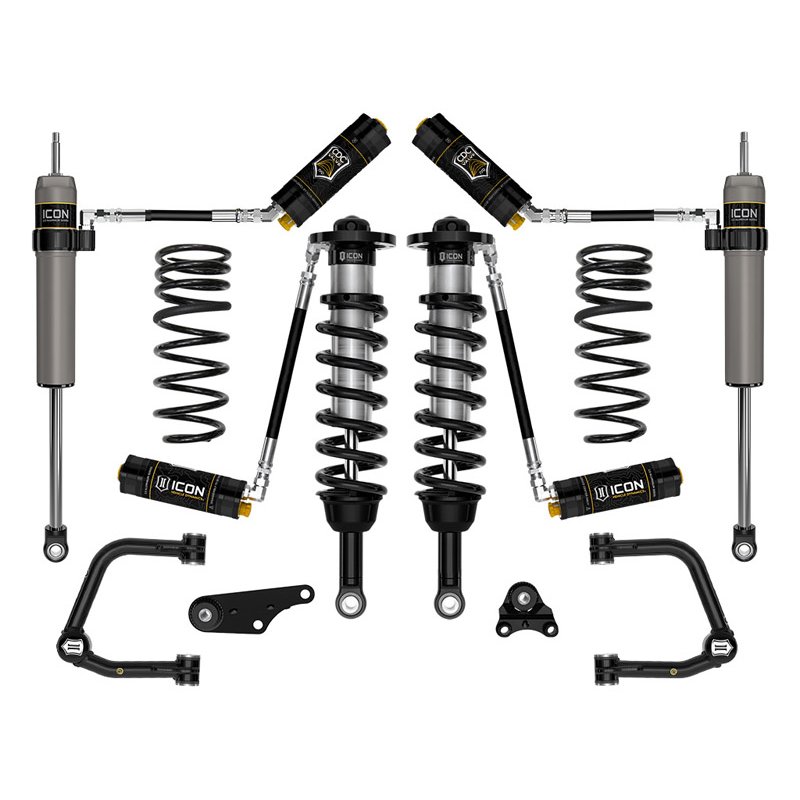

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Characteristics

• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3 IN
• 7325: 2
• 7326: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 54202 - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• Adjustable Compression: Yes
• Adjustable Control Arm: No
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Coil Quantity Front: 2
• Damping Adjustment Type: Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5 IN
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3 IN
• Maximum Lift Rear: .5 IN
• Minimum Lift Front: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5 IN
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset

Attributs

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• 6061 aircraft grade aluminum CNC machined components
• Adjustable coilovers provide 1.25-3" front lift height over stock
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• ICON engineered front and rear coil springs
• Increased wheel travel and improved ride quality over stock
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
