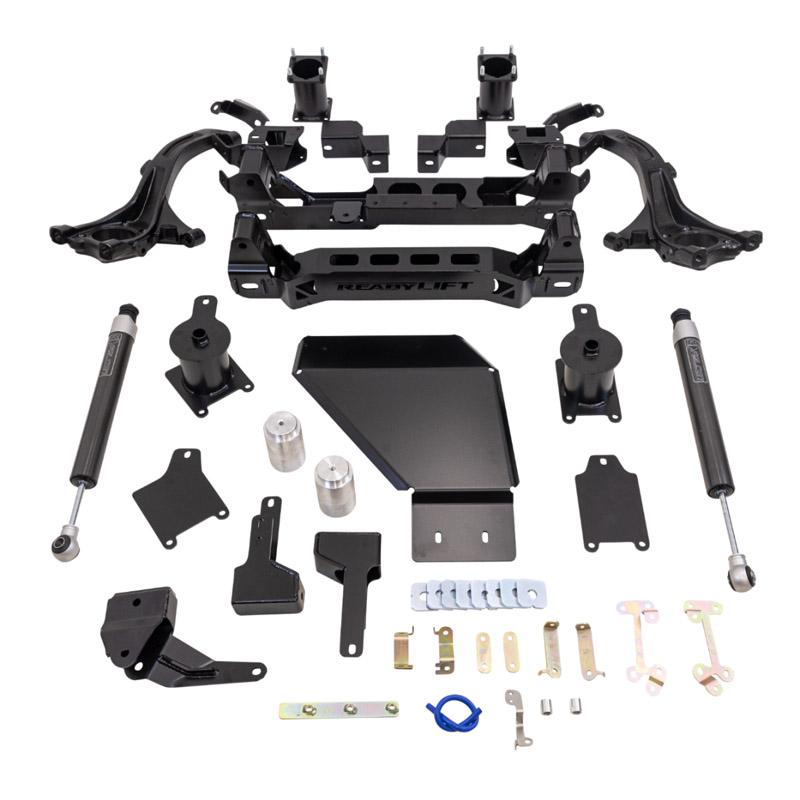

ReadyLIFT | Suspension Lift Kit - Tundra 3.4T 2022-2025

ReadyLIFT - Suspension Lift Kit

Description

ReadyLIFT's success with leveling and SST lift kits for the 2022-UP Toyota Tundra has led to the introduction of two new suspension solutions: 6'' lift kits designed for trucks with rear coil spring and factory air configuration. These kits, inspired by the success of Tundra products, include Falcon 1.1 monotube shocks tailored for 2022+ Toyota Tundra Trucks. These 6'' lift kits boast robust features, such as ultra-strong laser cut, CNC bent, welded, and boxed sub-frame drop assemblies to preserve suspension geometry and enhance ground clearance. The kits also have precision-designed cast iron front knuckles, CNC-machined for fit while minimizing the need for trimming factory tie rods. The innovative differential drop system, easy to install, maintains proper CV axle and driveline angles. With kit numbers 44-52620 (non-rear air) and 44-52660 (with rear air), tire wear is minimized due to maintained alignment and geometry. The kits include bump stop extensions and sway bar frame mount brackets for maintaining factory sway bar geometry. These features create a superior driving and handling experience for the Toyota Tundra. The 6'' Big Lift offers benefits like accommodating 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires, and a max tire option with trimming at 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires. It also includes two Falcon 1.1 monotube rear shocks, retains the factory turning radius, and allows the use of stock 20'' wheels. Not suitable for 2022+ Tundra TRD Pro with Bilstein coilover shocks or the TRD rear sway bar option, and is only compatible with factory 20" wheels (not 18"). Most aftermarket wheels fit but should be confirmed before installation.

Characteristics

• 3097: Yes
• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 6 Inches
• Front or Rear: Front and Rear
• Front Shocks: None
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 35 Inch
• Rear Lift Component: Coil Spring
• Rear Lift Height: 6 Inches
• Rear Shocks: Falcon 1.1 Monotube

Attributs

• Allows for 5.75" backspace (1820mm Offset) on 20x9 wheels with 35" tires
• Allows for 5.75"" backspace (18 Allows for 5.75"" backspace (1820mm Offset) on 20x9 wheels with 35"" tires
• Compatible with auto adjust headlights
• Compatible with stock 20" wheels
• Includes two Falcon 1.1 monotube rear shocks
• Maximum tire size with trimming is 5.5" backspace (1013mm Offset) on 20x9 wheels with 37" tires
• Maximum tire size with trimming is 5.5"" backspace (10 Maximum tire size with trimming is 5.5"" backspace (1013mm Offset) on 20x9 wheels with 37"" tires
• Not compatible with 2022+ Tundra TRD Pro with Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with Load
• Not compatible with 2022+ Tundra TRD Pro with Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)
• Retains factory turning radius

Note:

• FREE Delivery
