ICON Alloys | 19-21 Ford Ranger, 0-3.5in Lift, Stage 2 Susp System, Tubular UCA Al Knuckle - Ranger 2.3T 2019-2021

ICON Vehicle Dynamics – Stage 2 Tubular UCA + Al Knuckle Suspension – Ford Ranger

Description

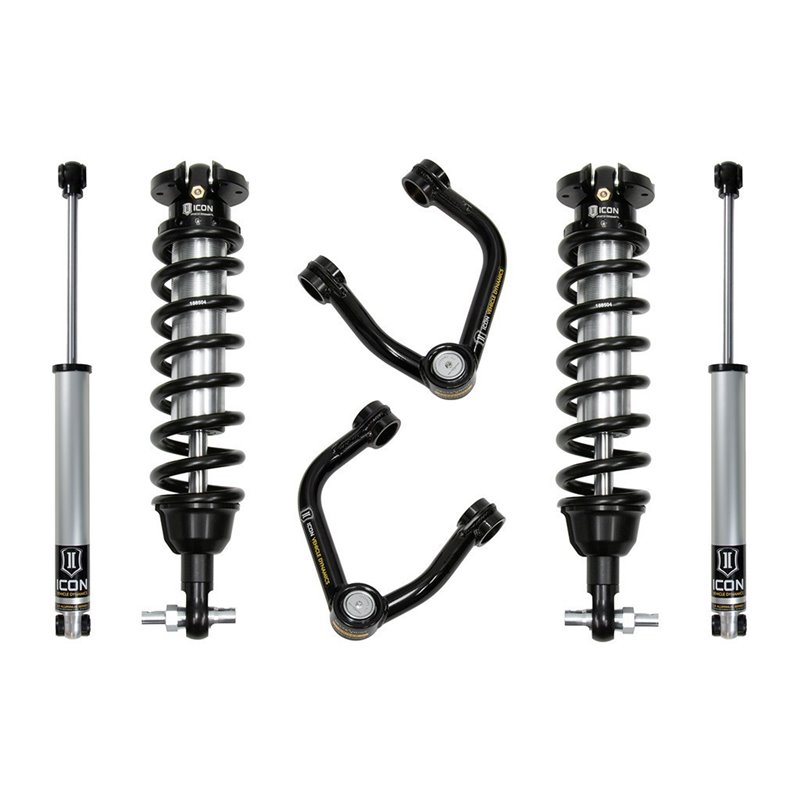

The ICON Vehicle Dynamics Stage 2 Tubular UCA + Aluminum Knuckle Suspension System (ref. K93202TA) is designed for the Ford Ranger and provides an adjustable front lift of 0 to 3.5 inches. This 100% bolt-on system features vehicle-specific tuned, extended travel 2.5 Series coilover shocks with an internal reservoir. The tubular Upper Control Arms improve overall front-end geometry with built-in additional caster and improved suspension component clearance. The patented Delta Joint (U.S. Pat. 10,731,700) replaces the OE ball joint, eliminating bind and enabling full bump and droop travel of the front suspension. This system delivers a 35% increase in front wheel travel over stock. Rear 2.0 Aluminum Series monotube shocks balance front-to-rear performance. Fits both 2WD and 4WD applications. (See Application Section)

Specifications

• Reference: K93202TA
• Manufacturer: ICON Vehicle Dynamics
• Adjustable front lift: 0 to 3.5 in
• Extended travel 2.5 Series coilover shocks with internal reservoir
• Tubular Upper Control Arms with patented Delta Joint
• Patented Delta Joint (U.S. Pat. 10,731,700) – 5-year warranty
• Built-in additional caster in tubular UCA design
• +35% front wheel travel over stock
• 2.0 Aluminum Series monotube IFP rear shocks
• 100% bolt-on installation – 2WD and 4WD
• Lifetime guarantee against ICON component and coil spring breakage
• Condition: New
• Sold and shipped by Truck Expert

Note:

• FREE Delivery
