ICON Alloys | 22-23 Toyota Tundra 1.25-3.25in Lift Stage 4 3.0 Suspension System, Billet - Tundra 3.4T / 3.5T 2022-2025

Icon Vehicle Dynamics – Stage 4 3.0 Complete Suspension System

Description

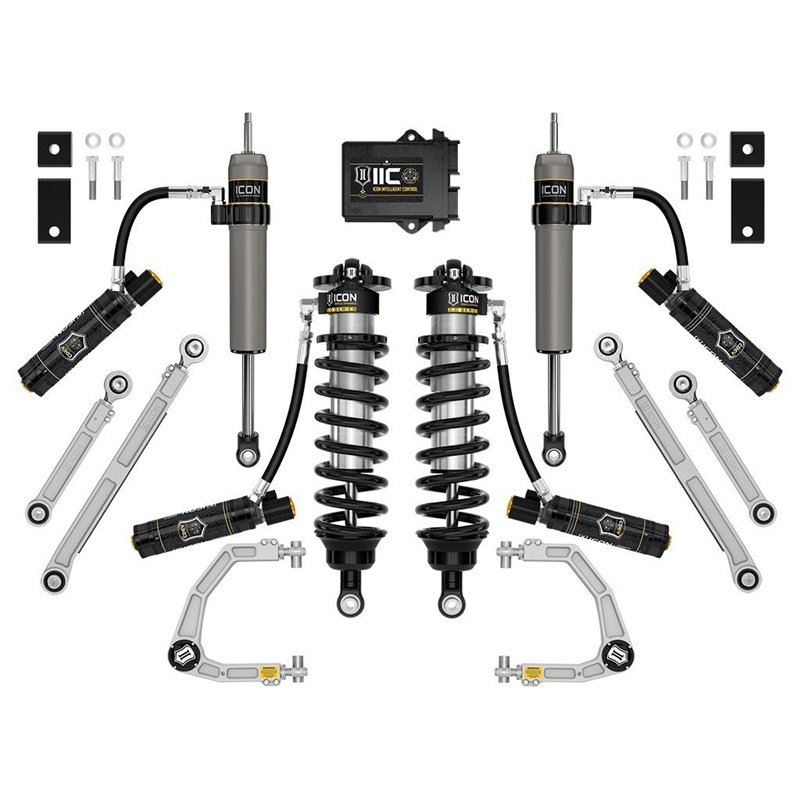

The ICON Vehicle Dynamics Stage 4 3.0 suspension system (ref. K53214) is designed specifically for the Toyota Tundra V6 3.4T and V6 3.5T Turbo. This premium system features 3.0 Series front remote reservoir coilovers with CDEV valve technology and ICON Intelligent Control (IIC), enabling active in-vehicle compression damping adjustment. At the rear, 2.5 Aluminum Series CDEV remote reservoir shocks complement the setup, along with billet aluminum front upper control arms, a billet rear upper/lower link assembly, and a front sway bar drop kit. The adjustable front lift height of 1.25–3.25 in. accommodates tires up to 35 in. Billet UCAs provide up to 40% more front wheel travel with on-vehicle caster/camber adjustment. All ICON shocks are fully rebuildable and re-tunable. (See Application Section)

Specifications

• Reference: K53214
• Manufacturer: Icon Vehicle Dynamics
• Compatibility: Toyota Tundra V6 3.4T / V6 3.5T Turbo (see Application)
• Front lift range: 1.25–3.25 in.
• 3.0 Series front coilovers with remote reservoir and multi-stage tunable hydraulic Bump Zone
• CDEV technology + ICON Intelligent Control (IIC) – active in-vehicle compression damping adjustment
• 2.5 Aluminum Series rear remote reservoir CDEV shocks – 20% increase in wheel travel
• Billet aluminum UCAs – on-vehicle caster/camber adjustment, 90° articulation (Delta Joint Pro, US Pat. 10,731,700)
• Billet rear upper/lower links – improved rear articulation and on-vehicle pinion angle adjustment
• Front sway bar drop brackets included
• Up to 40% increase in front wheel travel over stock
• Tire fitment up to 35 in.
• Condition: New
• Sold and shipped by Truck Expert
