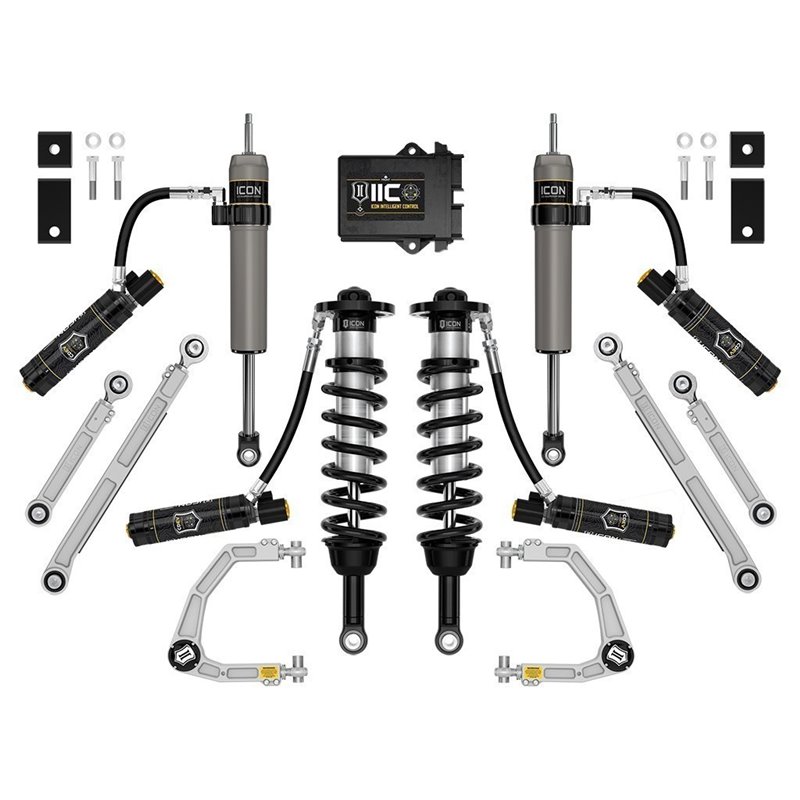

ICON Alloys | 22-23 Toyota Tundra 2-3.5in Lift, Stage 13, 2.5 Suspension System, Billet - Tundra 3.4T / 3.5T 2022-2025

Icon Vehicle Dynamics – Stage 13 CDEV/IIC Billet UCA + Rear Links 2.5 Suspension System

Description

The ICON Vehicle Dynamics Stage 13 suspension system for the Toyota Tundra builds upon the Stage 12 system with the addition of billet aluminum adjustable upper and lower rear links. These links improve rear end articulation and allow for on-vehicle pinion angle adjustment. All shocks are equipped with CDEV for near-instantaneous active adjustment via the ICON Intelligent Control (IIC) system. The system includes 2.5 Series CDEV remote reservoir front coilovers, billet aluminum UCAs with patented Delta Joint Pro technology (U.S. Pat. 10,731,700, 90 degrees of total articulation) providing an adjustable front lift of 1.25 to 3.5 inches, sway bar drop brackets, and 2.5 Aluminum Series CDEV remote reservoir rear shocks. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53203
• Brand: Icon Vehicle Dynamics
• Adjustable Front Lift: 1.25 to 3.5 inches
• Front Shocks: 2.5 Series CDEV remote reservoir coilovers
• CDEV + IIC Technology: Active automatic damping adjustment
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Rear Upper and Lower Links: Billet aluminum
• Rear Shocks: 2.5 Aluminum Series CDEV remote reservoir
• Sway bar drop brackets included
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert
