ICON Alloys | 22-23 Toyota Tundra 2-3.5in Lift, Stage 12, 2.5 Suspension System, Tubular - Tundra 3.4T / 3.5T 2022-2025

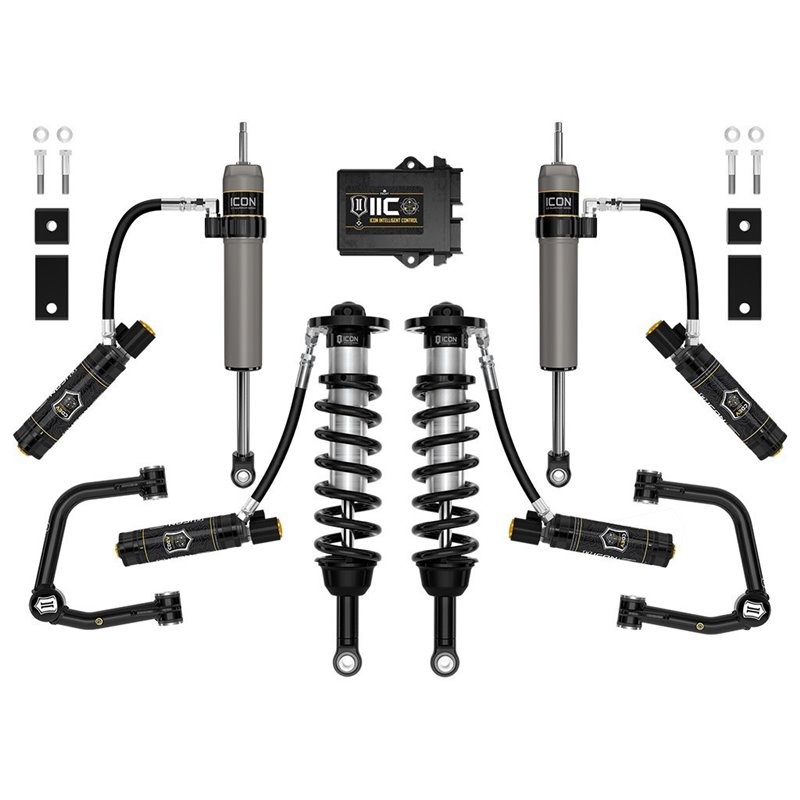

Icon Vehicle Dynamics – Stage 12 CDEV/IIC Tubular UCA 2.5 Suspension System

Description

The ICON Vehicle Dynamics Stage 12 Tubular UCA suspension system for the Toyota Tundra is the first stage to feature CDEV (Compression Damping Electronic Valve) equipped 2.5 Series coilovers and rear shocks. This system enables near-instant active electronic damping adjustment via the ICON Intelligent Control (IIC) system. IIC uses onboard sensors to monitor G-forces and vehicle chassis movement, making near-instantaneous compression damping changes at each individual shock. Control the system wirelessly via the IIC app. This tubular UCA variant offers a front lift of 2 to 3.5 inches with the included tubular UCAs. 100% bolt-on installation. Up to 35" tire fitment. (See Application Section)

Specifications

• Part Number: K53202T
• Brand: Icon Vehicle Dynamics
• Front Lift: 2 to 3.5 inches
• Front Shocks: 2.5 Series CDEV remote reservoir coilovers
• CDEV Technology: Active damping adjustment via IIC system
• Upper Control Arms: Tubular UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Front Wheel Travel Increase: Up to 40% over stock
• Rear Shocks: 2.5 Aluminum Series CDEV remote reservoir
• Wireless control via IIC app (ICON Intelligent Control)
• Sway bar drop brackets included
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert

Note:

• FREE Delivery
