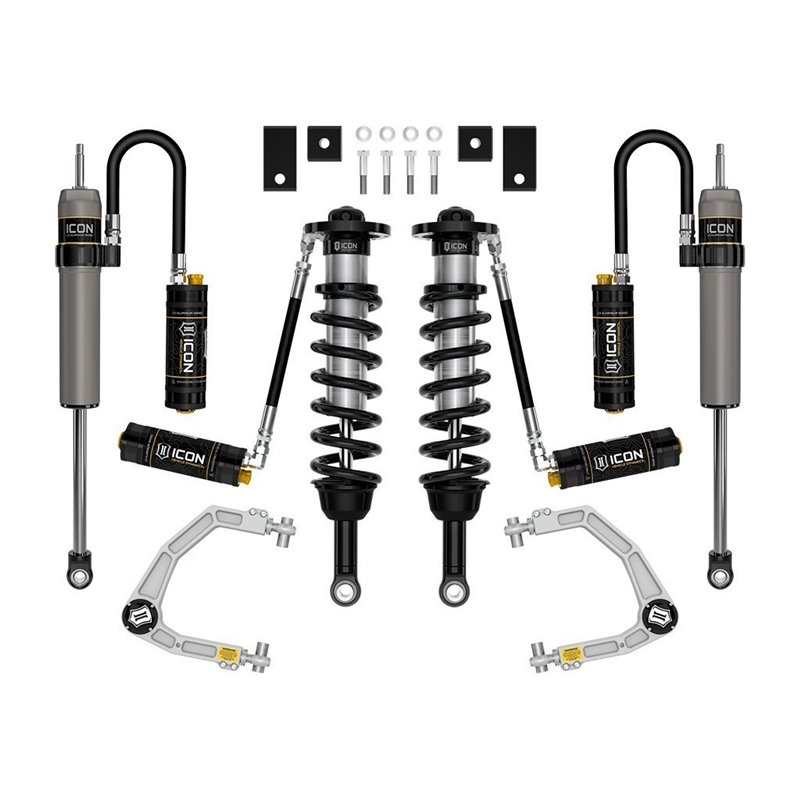

ICON Alloys | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 9, 2.5 Suspension System, Billet - Tundra 3.4T 2022-2025

Icon Vehicle Dynamics – Stage 9 CDCV Billet UCA 2.5 Suspension System

Description

The ICON Vehicle Dynamics Stage 9 suspension system for the Toyota Tundra upgrades front and rear shocks to include Compression Damping Control Valves (CDCV) for precisely dialing in suspension performance. CDCV controls fluid flow under compression, offering 10 damping settings from soft to hard to suit any terrain – street driving, rock crawling, or high-speed desert running. The system includes 2.5 Series remote reservoir front coilovers with CDCV, billet aluminum UCAs with patented Delta Joint Pro technology (U.S. Pat. 10,731,700, 90 degrees of total articulation) providing an adjustable front lift of 1.25 to 3.5 inches, sway bar drop brackets, and 2.5 Aluminum Series remote reservoir rear shocks with CDCV. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53199
• Brand: Icon Vehicle Dynamics
• Adjustable Front Lift: 1.25 to 3.5 inches
• Front Shocks: 2.5 Series remote reservoir coilovers with CDCV
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• CDCV: 10 compression damping settings (soft to hard)
• Front Wheel Travel Increase: Up to 40% over stock
• Rear Shocks: 2.5 Aluminum Series remote reservoir with CDCV
• Sway bar drop brackets included
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert

Note:

• FREE Delivery
