ICON Alloys | 22-23 Toyota Tundra 2-3.5in Lift, Stage 5, 2.5 Suspension System, Tubular - Tundra 3.4T / 3.5T 2022-2025

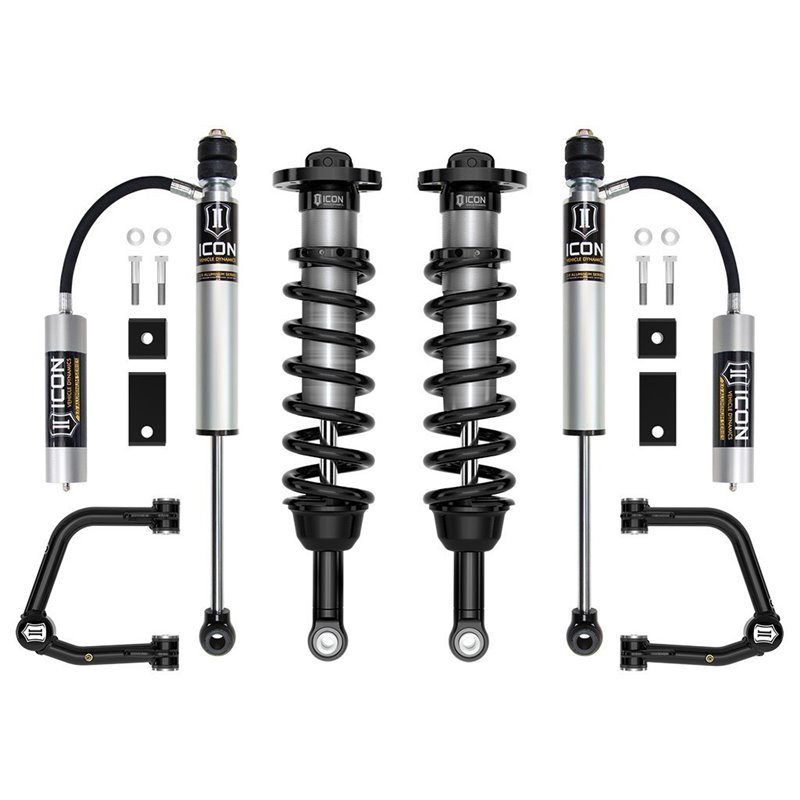

Icon Vehicle Dynamics – Stage 5 Tubular UCA 2.5 Suspension System

Description

The ICON Vehicle Dynamics Stage 5 Tubular UCA suspension system for the Toyota Tundra builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions for greater heat dissipation. This system offers a front lift of 2 to 3.5 inches with the included tubular UCAs, improved on- and off-road performance, and up to 35-inch tire fitment. The 2.5 Series internal reservoir coilovers deliver superior front damping. The tubular UCAs feature the patented Delta Joint Pro technology (U.S. Pat. 10,731,700) with 90 degrees of total articulation and allow up to 40% more wheel travel. Sway bar drop brackets and 2.0 remote reservoir rear shocks complete the kit. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53195T
• Brand: Icon Vehicle Dynamics
• Front Lift: 2 to 3.5 inches (with included tubular UCAs)
• Front Shocks: 2.5 Series with internal reservoirs
• Upper Control Arms: Tubular UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Front Wheel Travel Increase: Up to 40% over stock
• Rear Shocks: 2.0 Aluminum Series remote reservoir
• Sway bar drop brackets included
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert
