ICON Alloys | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 5, 2.5 Suspension System, Billet - Tundra 3.4T / 3.5T 2022-2025

Icon Vehicle Dynamics – Stage 5 Billet UCA 2.5 Suspension System

Description

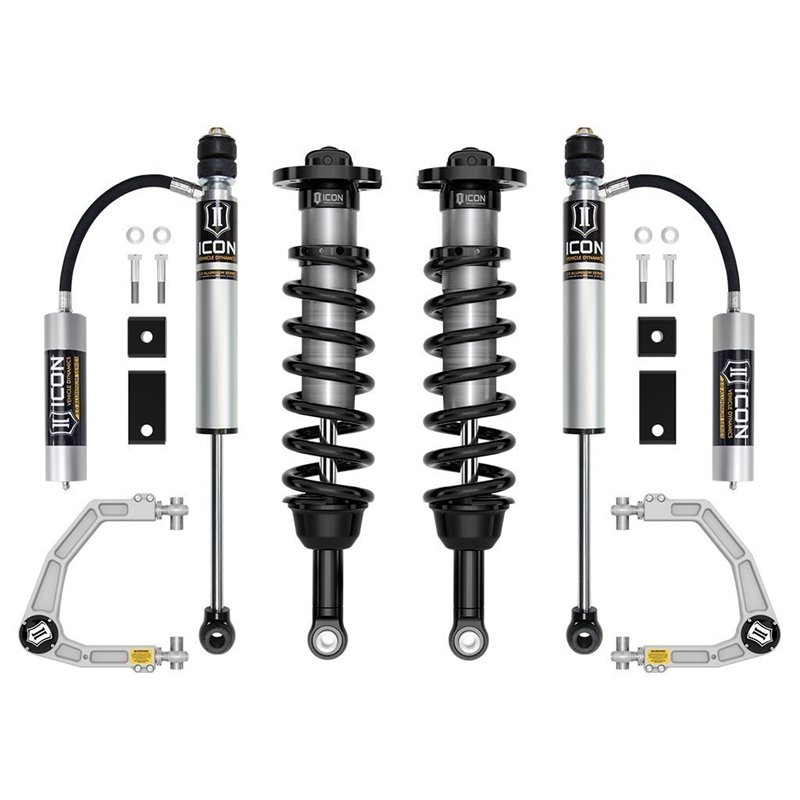

The ICON Vehicle Dynamics Stage 5 suspension system for the Toyota Tundra builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions for greater heat dissipation. This system offers an adjustable front lift of 1.25 to 3.5 inches with the included billet UCAs, improved on- and off-road performance, and up to 35-inch tire fitment. The 2.5 Series internal reservoir coilovers deliver superior front damping. The billet aluminum UCAs feature the patented Delta Joint Pro technology (U.S. Pat. 10,731,700) with 90 degrees of total articulation and allow up to 40% more wheel travel. Sway bar drop brackets and 2.0 remote reservoir rear shocks complete the kit. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53195
• Brand: Icon Vehicle Dynamics
• Adjustable Front Lift: 1.25 to 3.5 inches
• Front Shocks: 2.5 Series with internal reservoirs
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Front Wheel Travel Increase: Up to 40% over stock
• Rear Shocks: 2.0 Aluminum Series remote reservoir
• Sway bar drop brackets included
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert

Note:

• FREE Delivery
