ICON Alloys | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 4, 2.5 Suspension System, Billet - Tundra 3.4T 2022-2025

Icon Vehicle Dynamics – Stage 4 Billet UCA 2.5 Suspension System

Description

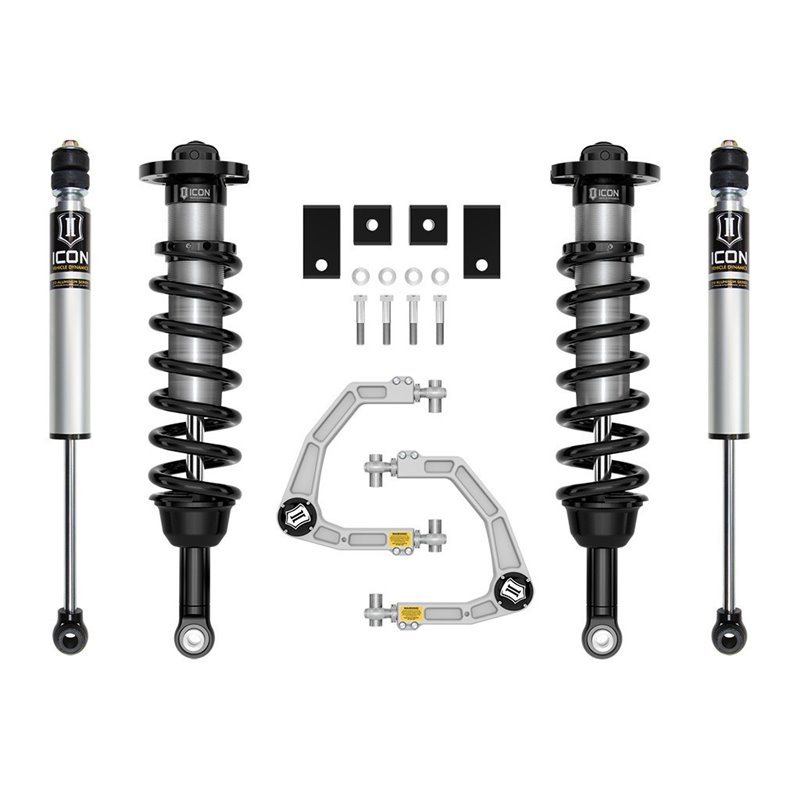

The ICON Vehicle Dynamics Stage 4 suspension system for the Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. This system offers an adjustable front lift of 1.25 to 3.5 inches, improved on- and off-road performance, and improved alignment specifications for up to 35-inch tire fitment. The 2.5 Series internal reservoir coilovers deliver superior damping and vehicle control. The billet aluminum UCAs feature the patented Delta Joint Pro technology (U.S. Pat. 10,731,700) with 90 degrees of total articulation, allowing up to 40% more wheel travel. Sway bar drop brackets and 2.0 Series rear shocks complete the kit. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53194
• Brand: Icon Vehicle Dynamics
• Adjustable Front Lift: 1.25 to 3.5 inches
• Front Shocks: 2.5 Series threaded-body coilovers with internal reservoirs
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Front Wheel Travel Increase: Up to 40% over stock
• Sway bar drop brackets included
• Rear Shocks: 2.0 Aluminum Series
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by Truck Expert
