ICON Alloys | 22-23 Toyota Tundra 0-3in Lift Stage 2, 2.5 EXP Suspension System, Billet - Tundra 3.4T / 3.5T 2022-2025

Icon Vehicle Dynamics – Stage 2 Billet UCA Suspension System

Description

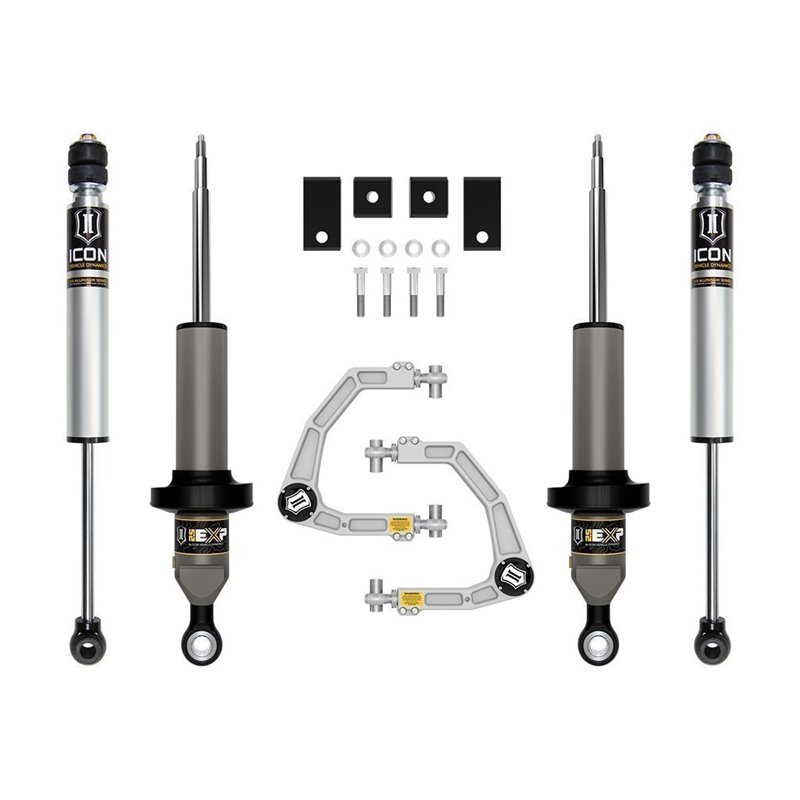

The ICON Vehicle Dynamics Stage 2 suspension system for the Toyota Tundra is vehicle-specific and provides 0 to 3 inches of front lift. The system includes a pair of 2.5 EXP Series coilovers with internal reservoirs that utilize the factory coil and coil hardware, along with billet aluminum upper control arms (UCAs) for precise alignment correction at any ride height. The 2.0 Series rear shocks balance the front-to-rear tuning for optimal on- and off-road performance. The entire kit is 100% bolt-on – no drilling, cutting, or welding is required for installation. The billet UCAs feature the patented Delta Joint Pro technology (U.S. Pat. 10,731,700) with 90 degrees of total articulation, allowing full wheel travel without overstressing OE components. Included sway bar drop brackets reduce bind in OE sway bar links. (See Application Section)

Specifications

• Part Number: K53192
• Brand: Icon Vehicle Dynamics
• Front Lift: 0 to 3 inches
• Front Shocks: 2.5 EXP Series with internal reservoirs
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Rear Shocks: 2.0 Aluminum Series
• 100% bolt-on installation – no drilling or welding required
• Sway bar drop brackets included
• Up to 35" tire fitment
• All ICON shocks are fully rebuildable and re-tunable
• Condition: New
• Sold and shipped by Truck Expert
