ICON Alloys | 2005-2015 Toyota Tacoma 0-3.5in Lift/2016-2023 Tacoma 0-2.75in Lift, Stage 4 Suspension System, Tubular UCA - Taco

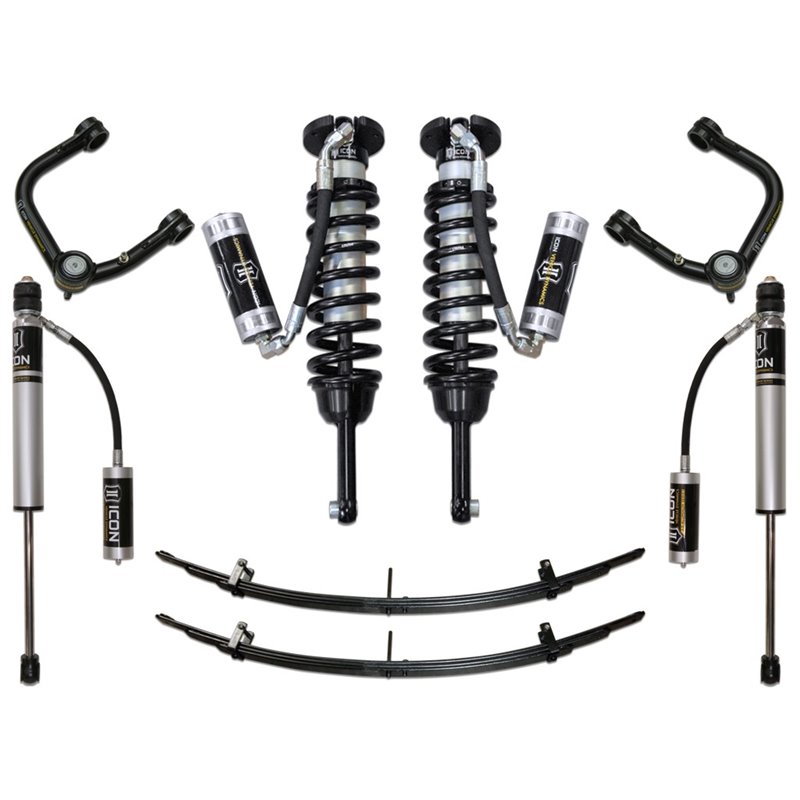

Icon Vehicle Dynamics – Stage 4 Tubular UCA + Remote Reservoir Suspension System (Toyota Tacoma)

Description

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. The Stage 4 Tubular UCA system includes vehicle-specific tuned 2.5 in Extended Travel coilover shocks with remote reservoirs for exceptional cooling properties and consistent performance under hard use, adjustable from 0-3.5 in of lift on 2005-2015 models or 0-2.75 in on 2016-2023 models. When used with the included ICON tubular UCA kit, these extended travel coilovers add increased droop travel to the front suspension. The tubular UCA kit improves front-end geometry with built-in additional caster and improved suspension clearance. The serviceable ICON Delta Joint replaces the OE ball joint and eliminates bind. The included rear Add-A-Leaf Kit lowers the rear spring rate by approximately 10% for a more compliant ride while providing 1.5 in of rear lift. Remote reservoir 2.0 Aluminum Series rear shocks balance performance front to rear. Compatible with Toyota Tacoma (See Application Section).

Specifications

• Part Number: K53004T
• Brand: Icon Vehicle Dynamics
• Adjustable Lift: 0-3.5 in front (2005-2015) / 0-2.75 in front (2016-2023)
• 2.5 in Extended Travel coilover shocks with remote reservoirs
• Tubular UCAs with patented ICON Delta Joint (U.S. Pat. 10,731,700) and built-in caster correction
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8 in shafts
• Add-A-Leaf Kit – 1.5 in rear lift, more compliant ride
• CAD-plated coilover shock bodies with 7/8 in shafts
• FK Rod End bearings for extended longevity
• 6061 aircraft-grade aluminum CNC machined components
• Bolt-on installation – no cutting or welding
• Condition: New
• Sold and shipped by Truck Expert
