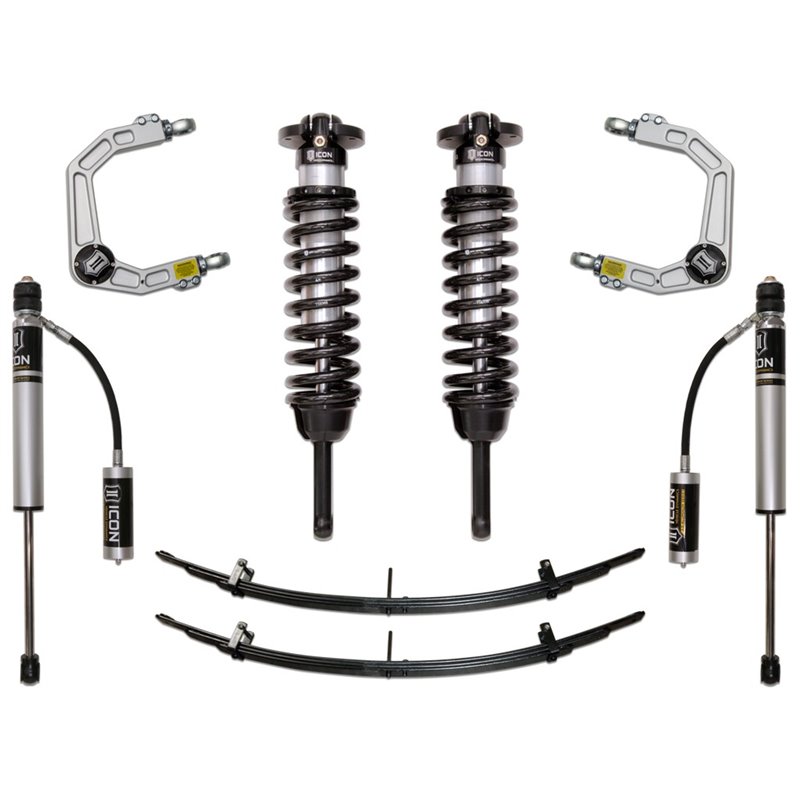

ICON Alloys | 2005-2015 Toyota Tacoma 0-3.5in Lift/2016-2023 Tacoma 0-2.75in Lift, Stage 3 Suspension System, Billet UCA - Tacom

Icon Vehicle Dynamics – Stage 3 Billet UCA Suspension System (Toyota Tacoma)

Description

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. The Stage 3 system includes vehicle-specific tuned 2.5 in Extended Travel coilover shocks with an internal reservoir and ICON-engineered coil springs, adjustable from 0-3.5 in of lift on 2005-2015 models or 0-2.75 in on 2016-2023 models. When used with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum UCA kit improves front-end geometry with increased on-vehicle camber and caster adjustment and improved suspension clearance. Replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel while eliminating bind. The included rear Add-A-Leaf Kit installs in place of factory overload leaves, reducing the rear spring rate by approximately 10% for a more compliant ride and providing 1.5 in of rear lift. Remote reservoir 2.0 Aluminum Series rear shocks balance performance front to rear. Compatible with Toyota Tacoma (See Application Section).

Specifications

• Part Number: K53003
• Brand: Icon Vehicle Dynamics
• Adjustable Lift: 0-3.5 in front (2005-2015) / 0-2.75 in front (2016-2023)
• 2.5 in Extended Travel coilover shocks with internal reservoir
• Billet aluminum UCAs with patented ICON Delta Joint (U.S. Pat. 10,731,700)
• On-vehicle caster/camber adjustment on billet UCAs
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8 in shafts
• Add-A-Leaf Kit – 1.5 in rear lift, more compliant ride
• CAD-plated coilover shock bodies with 7/8 in shafts
• FK Rod End bearings for extended longevity
• 6061 aircraft-grade aluminum CNC machined components
• Bolt-on installation – no cutting or welding
• Condition: New
• Sold and shipped by Truck Expert
