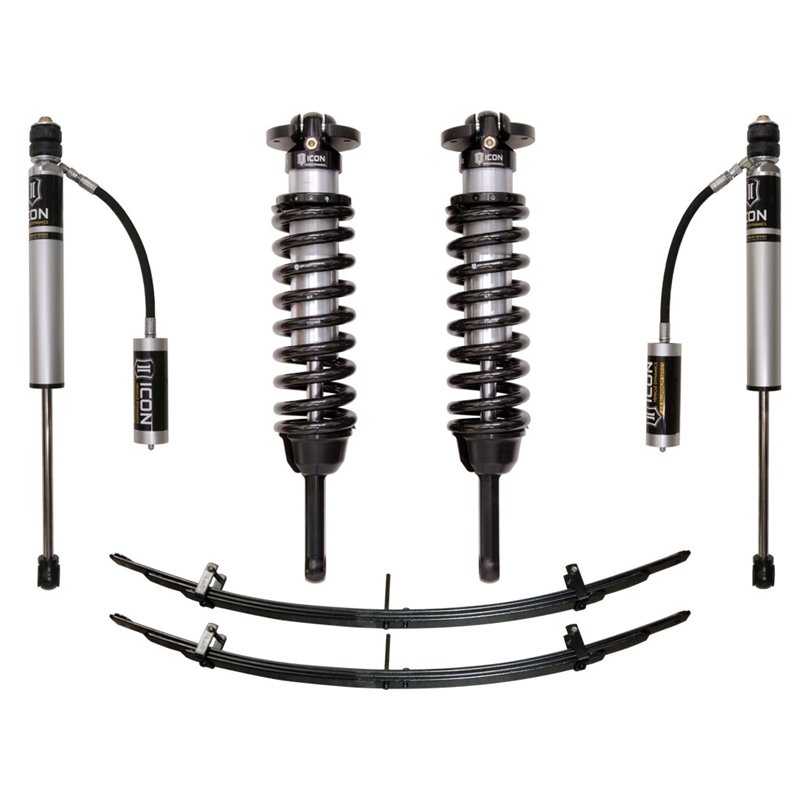

ICON Alloys | 2005-2015 Toyota Tacoma 0-3.5in Lift/2016-2023 Tacoma 0-2.75in Lift, Stage 2 Suspension System - Tacoma 2.7L / 3.5

Icon Vehicle Dynamics – Stage 2 Suspension System (Toyota Tacoma)

Description

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5 in coilover shocks with an internal reservoir and ICON-engineered coil springs, adjustable from 0-3.5 in of lift on 2005-2015 models or 0-2.75 in on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir 2.0 Aluminum Series rear shocks utilize vehicle-specific valving that balances truck performance from front to rear. The included rear Add-A-Leaf Kit installs in place of the factory overload leaves and lowers the rear spring rate by approximately 10% for a more compliant ride while providing 1.5 in of rear lift over stock. Simple bolt-on installation, no cutting or welding required. Compatible with Toyota Tacoma (See Application Section).

Specifications

• Part Number: K53002
• Brand: Icon Vehicle Dynamics
• Adjustable Lift: 0-3.5 in front (2005-2015) / 0-2.75 in front (2016-2023)
• Vehicle-specific tuned 2.5 in coilover shocks with internal reservoir
• ICON-engineered coil springs
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8 in shafts
• Add-A-Leaf Kit – replaces factory overload leaves, 1.5 in rear lift
• CAD-plated coilover shock bodies with 7/8 in shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 6061 aircraft-grade aluminum CNC machined components
• Bolt-on installation – no cutting or welding
• Condition: New
• Sold and shipped by Truck Expert
