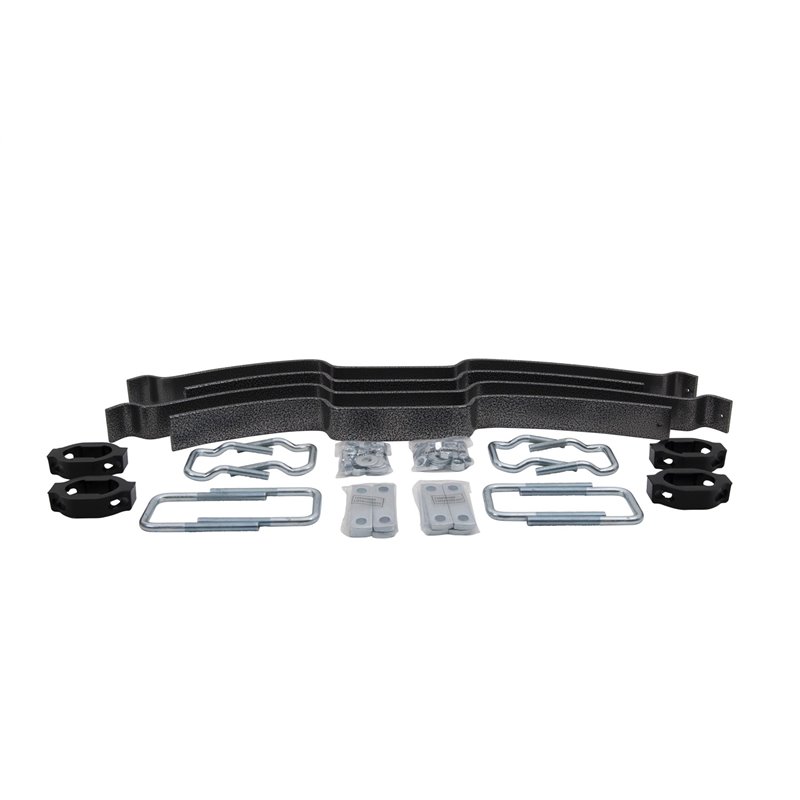

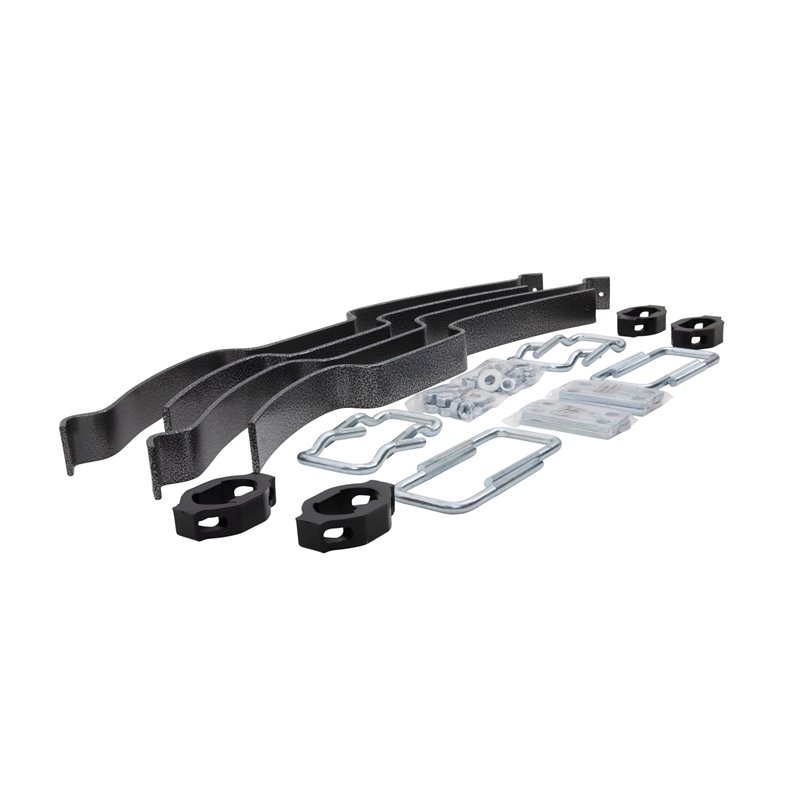

Hellwig | SILENT SUPPORT SYSTEM SERIES HELPER SPRING - Ram 1500 / 2500 / 3500 / F-150 2000-2014
Hellwig – Silent Support System Helper Springs (Dodge/RAM + Ford F-150)
Description
Hellwig Silent Support System helper springs (ref. 61902) provide level load capacity up to 2500 lbs for Dodge/RAM 1500, 2500, 3500 and Ford F-150 trucks. Ideal for 1/2, 3/4, and 1-ton applications, the over-axle mounting design enables fast, easy bolt-on installation. Progressive rate leaves do not affect ride quality when unloaded. If the vehicle is equipped with factory contact overload springs, removal is required prior to installation (U-bolt and center bolt replacement may be needed). Check vehicle fitment in the Application section.
Specifications
- Manufacturer: Hellwig
- Reference: 61902
- Type: Leaf helper springs (Silent Support System)
- Load capacity: Up to 2500 lbs (level load)
- Adjustable length: Yes
- Color: Silver Hammertone
- Material: High-quality spring steel
- Mounting hardware: Included (zinc-plated)
- Progressive rate: Does not affect ride when unloaded
- Note: Removal of factory overload springs may be required (see Application section)
- Compatibility: Dodge/RAM 1500/2500/3500 / Ford F-150 (See Application Section)
- Warranty: Limited lifetime
- Condition: New
- Sold and shipped by Truck Expert
Note:
- FREE Delivery
Dodge / Ram
2002 Ram 1500 V6 3.7L SEE NOTE1
2000-2001 Ram 1500 V6 3.9L SEE NOTE1
2002 Ram 1500 V8 4.7L SEE NOTE1
2000-2001 Ram 1500 V8 5.2L SEE NOTE1
2000-2002 Ram 1500 V8 5.9L SEE NOTE1
2002 Ram 2500 V8 4.7L SEE NOTE4
2002 Ram 2500 V8 4.7L SEE NOTE5
2002 Ram 2500 V8 4.7L SEE NOTE7
2002 Ram 2500 V8 4.7L SEE NOTE10
2000-2001 Ram 2500 V8 5.2L SEE NOTE4
2000 Ram 2500 V8 5.2L SEE NOTE5
2000-2001 Ram 2500 V8 5.2L SEE NOTE6
2001 Ram 2500 V8 5.2L SEE NOTE7
2001 Ram 2500 V8 5.2L SEE NOTE9
2000 Ram 2500 V8 5.2L SEE NOTE11
2000-2002 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE4
2000-2002 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE5
2000-2001 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE6
2001-2002 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE7
2001 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE9
2002 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE10
2000 Ram 2500 L6 5.9L Turbo Diesel SEE NOTE11
2000-2002 Ram 2500 V8 5.9L SEE NOTE4
2000-2002 Ram 2500 V8 5.9L SEE NOTE5
2000-2001 Ram 2500 V8 5.9L SEE NOTE6
2001-2002 Ram 2500 V8 5.9L SEE NOTE7
2001 Ram 2500 V8 5.9L SEE NOTE9
2002 Ram 2500 V8 5.9L SEE NOTE10
2000 Ram 2500 V8 5.9L SEE NOTE11
2000-2002 Ram 2500 V10 8.0L SEE NOTE4
2000-2002 Ram 2500 V10 8.0L SEE NOTE5
2000-2001 Ram 2500 V10 8.0L SEE NOTE6
2001-2002 Ram 2500 V10 8.0L SEE NOTE7
2001 Ram 2500 V10 8.0L SEE NOTE9
2002 Ram 2500 V10 8.0L SEE NOTE10
2000 Ram 2500 V10 8.0L SEE NOTE11
2000-2002 Ram 3500 L6 5.9L Turbo Diesel SEE NOTE2
2001-2002 Ram 3500 L6 5.9L Turbo Diesel SEE NOTE3
2000 Ram 3500 L6 5.9L Turbo Diesel SEE NOTE8
2000-2002 Ram 3500 V8 5.9L SEE NOTE2
2001-2002 Ram 3500 V8 5.9L SEE NOTE3
2000 Ram 3500 V8 5.9L SEE NOTE8
2000-2002 Ram 3500 V10 8.0L SEE NOTE2
2001-2002 Ram 3500 V10 8.0L SEE NOTE3
2000 Ram 3500 V10 8.0L SEE NOTE8
Ford
2011-2014 F-150 V6 3.5L Turbo SEE NOTE12
2011-2014 F-150 V6 3.7L SEE NOTE12
2009-2010 F-150 V6 4.2L SEE NOTE12
2009-2010 F-150 V8 4.6L SEE NOTE12
2011-2014 F-150 V8 5.0L SEE NOTE12
2009-2010 F-150 V8 5.4L SEE NOTE12
2010-2014 F-150 V8 6.2L SEE NOTE12
Note 1: 2wd Pickup;
Note 2: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;; Drive Type: 4WD
Note 3: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;; Drive Type: RWD
Note 4: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;Body Type: Extended Cab Pickup; ; Drive Type: 4WD
Note 5: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;Body Type: Extended Cab Pickup; ; Drive Type: RWD
Note 6: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;Body Type: Standard Cab Pickup; ; Drive Type: 4WD
Note 7: 2WD/4WD Pickup; Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.;Body Type: Standard Cab Pickup; ; Drive Type: RWD
Note 8: Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.; 2WD/4WD Pickup;; Drive Type: RWD
Note 9: Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.; 2WD/4WD Pickup;Body Type: Extended Cab Pickup; ; Drive Type: RWD
Note 10: Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.; 2WD/4WD Pickup;Body Type: Standard Cab Pickup; ; Drive Type: 4WD
Note 11: Must remove factory overload contact springs - removal of contact overload springs may require U-bolt and center bolt replacement.; 2WD/4WD Pickup;Body Type: Standard Cab Pickup; ; Drive Type: RWD
Note 12: Pickup 2wd;
