Description

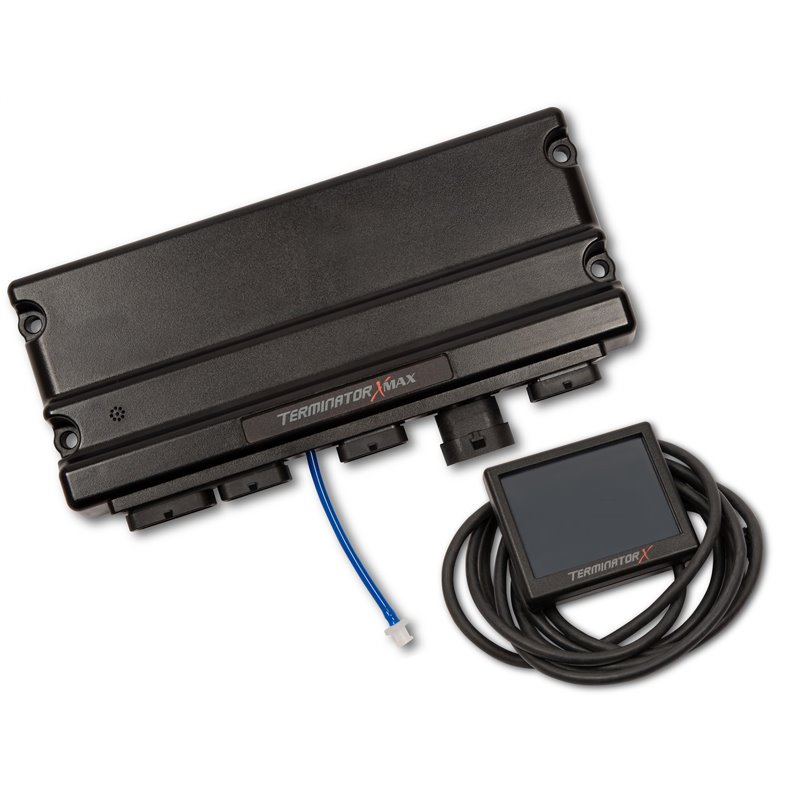

The Holley Terminator X Max (550-926) is a complete electronic fuel injection system designed for LS engines with 24x crank reluctor and 1X cam sensor, compatible with LS1 5.7L and LS6 Gen III 5.7L engines. In addition to the standard Terminator X Max features — real-time fuel learn, high impedance injector drivers, integrated 1 bar MAP sensor, 4 programmable inputs and outputs — this part number adds Drive-By-Wire throttle body control and 4L60E or 4L80E transmission control. Shipped with base maps for common LS engine combinations, the 3.5 in. LCD touchscreen includes a calibration wizard, tuning functions, and gauge display. The Holley EFI software suite is also included for full laptop access for advanced users. Compatible with electric fan, boost solenoid, and progressive nitrous applications.

Specifications

• Brand: Holley
• Part Number: 550-926
• Compatibility: LS 24x crank reluctor / 1X cam engines, LS1/LS6 Gen III 5.7L (See Application Section)

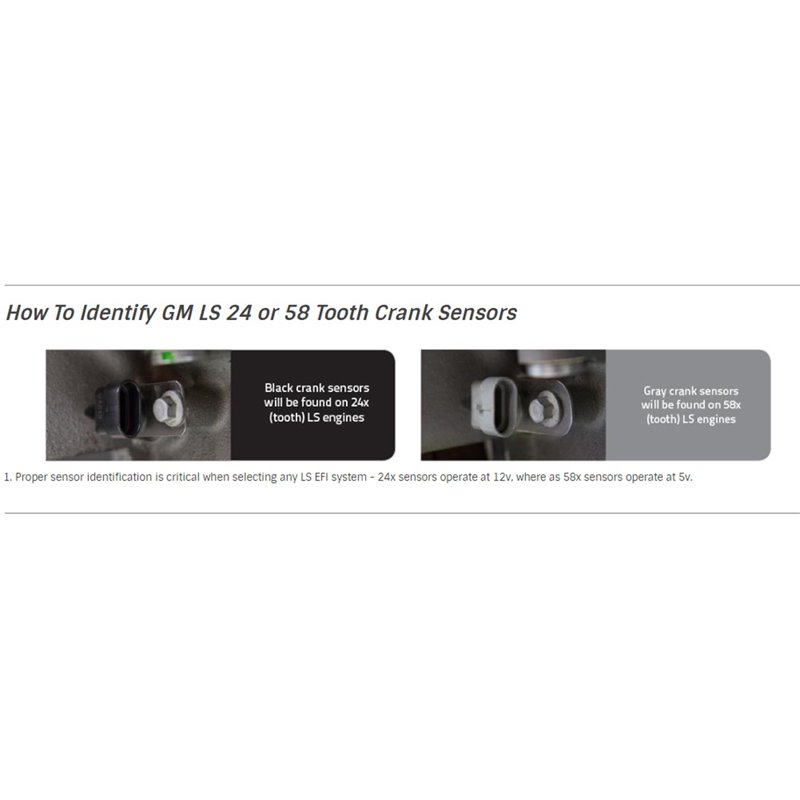

• Crank Sensor: 24x
• Cam Sensor: 1X
• Throttle Body: Drive-By-Wire (DBW) included

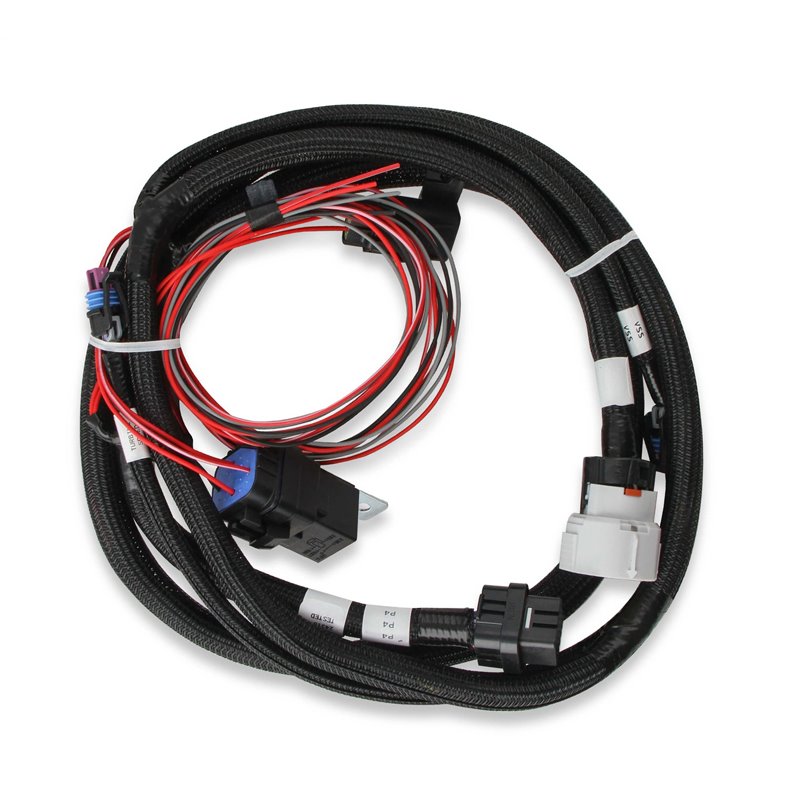

• Transmission Control: 4L60E / 4L80E included
• Fuel Learn: Real-time
• Integrated MAP Sensor: 1 bar
• Programmable I/O: 4
• Display: 3.5 in. LCD touchscreen
• Software: Holley EFI suite included
• Condition: New
• Sold and shipped by Truck Expert
