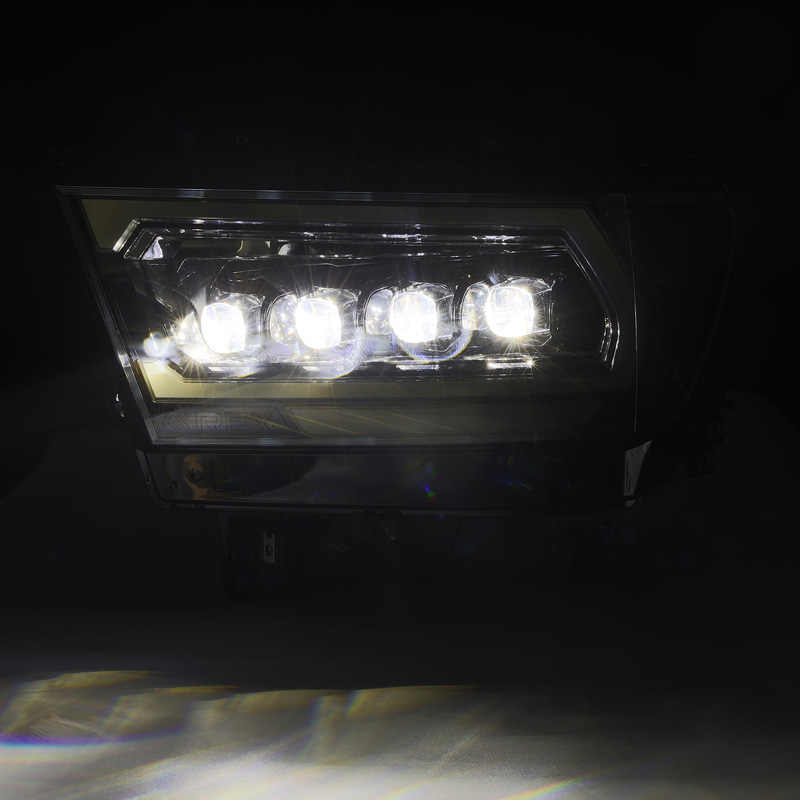

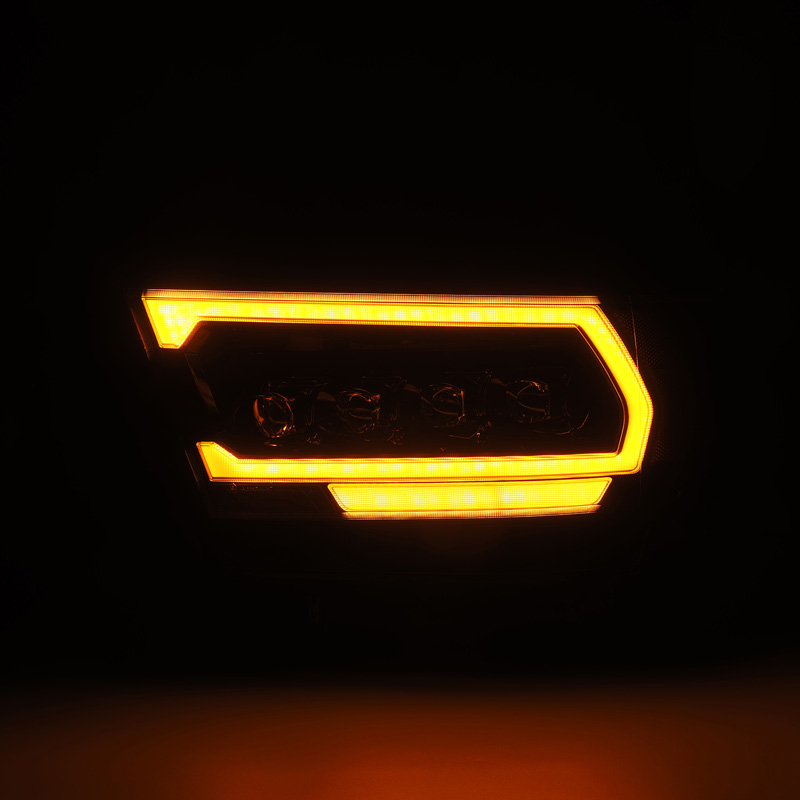

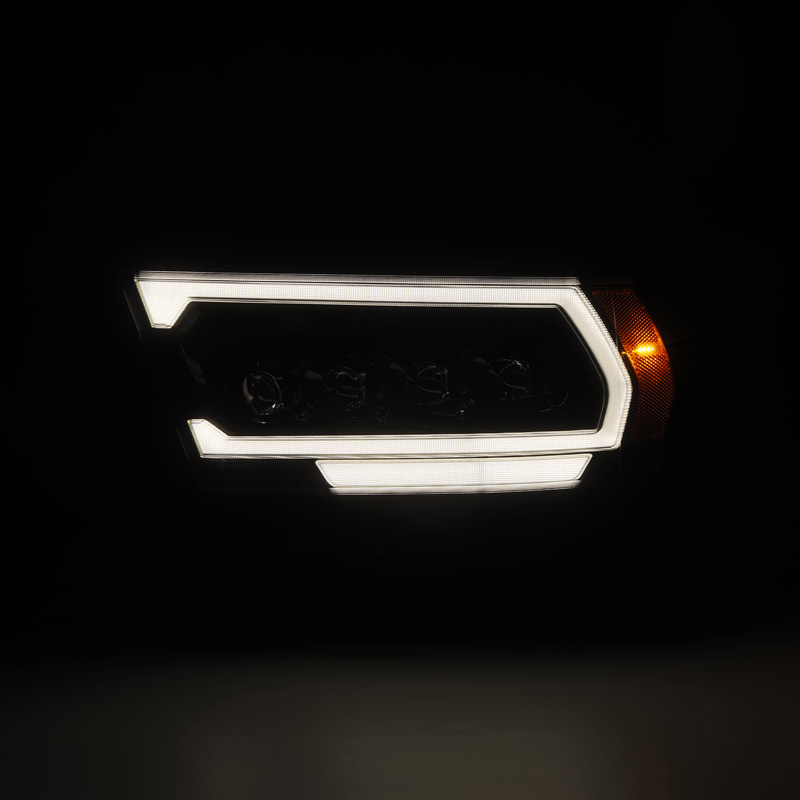

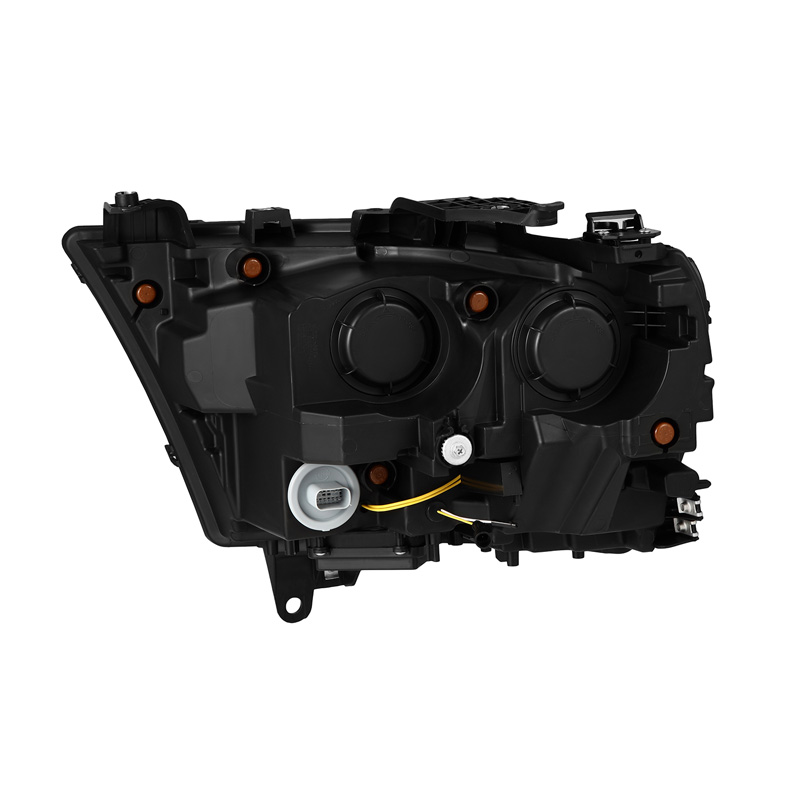

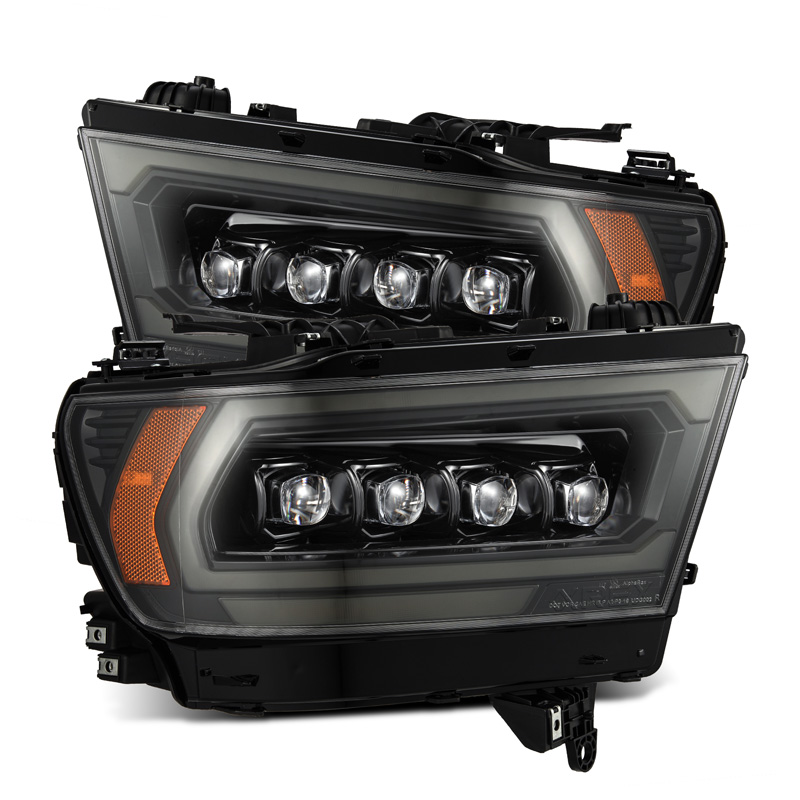

AlphaRex | LED Projector Headlights in Alpha-Black - Ram 1500 2019-2024

ICON Vehicle Dynamics – Suspension System

Description

The ICON Vehicle Dynamics Stage 8 suspension system (SKU K53298TS) is engineered specifically for the Toyota Tacoma 2.4T with rear coil springs. It features 2.5in front coilovers with remote reservoirs and CDC valves (10 compression damping settings), tubular upper control arms (UCAs) with the patented ICON Delta Joint PRO (U.S. Pat. 10,731,700), a front differential drop for improved CV joint angles, and tubular rear lower links with dual-durometer greaseless bushings and FK rod ends. The triple-rate rear coil springs deliver a smooth on-road ride with firm overload resistance for off-road use. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks complete the system for balanced front-to-rear performance. Compatible with OEM wheels and tires, providing 1.25–3in of front lift.

Specifications

• Brand/Manufacturer: ICON Vehicle Dynamics
• SKU/Reference: K53298TS
• Front Lift: 1.25 to 3 in
• Rear Lift: 0.5 in
• Front & Rear Shock Diameter: 2.5 in (Aluminum Series)
• Reservoir Style: Remote (front and rear)
• Damping Adjustment: Manual, 10 settings (CDC Valves)
• Tubular UCAs with Delta Joint PRO (90° articulation, U.S. Pat. 10,731,700)
• Rear Triple Rate Progressive Coil Springs
• Materials: 6061 aircraft-grade aluminum, CAD plated corrosion resistant
• Compatibility: Toyota Tacoma 2.4T, 4WD, rear coil spring models (See Application Section)
• Recommended Tires: 33" x 11.50" (fender trimming may be required for larger sizes)
• Condition: New
• Sold and shipped by Truck Expert
