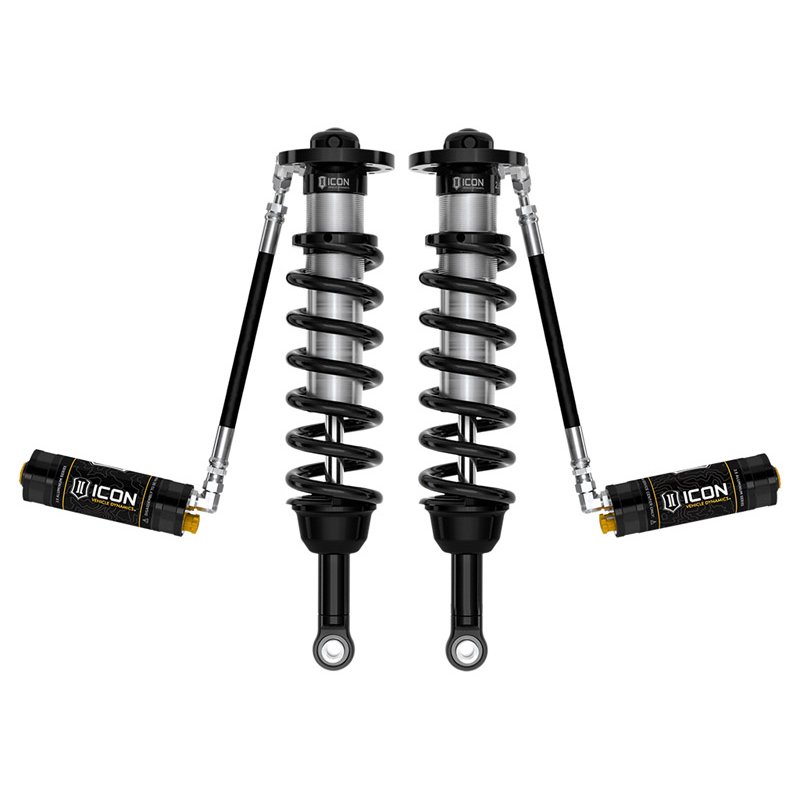

ICON | 24 TACOMA 2.5 VS RR CDCV COILOVER KIT - Tacoma 2.4T 2024

ICON - Coilover Spring and Shock Assembly

Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Characteristics

• 2064: Steel
• 2917: Yes
• 3390: Performance
• 408: Center of Eyelet
• 409: Top of Upper Mount Plate
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5 IN
• 7232: Yes
• 8703: No
• 9476: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 55160 - 24 TACOMA/24 LC250 DIFF DROP KIT
• Add-On Part: 58452DJ - 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
• Add-On Part: 58552DJ - 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• Coil Over Springs Included: Yes
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Minimum Lift: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
• Shaft Diameter: 0.875 IN
• Spring Color: Black
• Spring Rate Type: Linear

Attributs

• 2.5" diameter shock bodies with remote reservoirs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
