Description

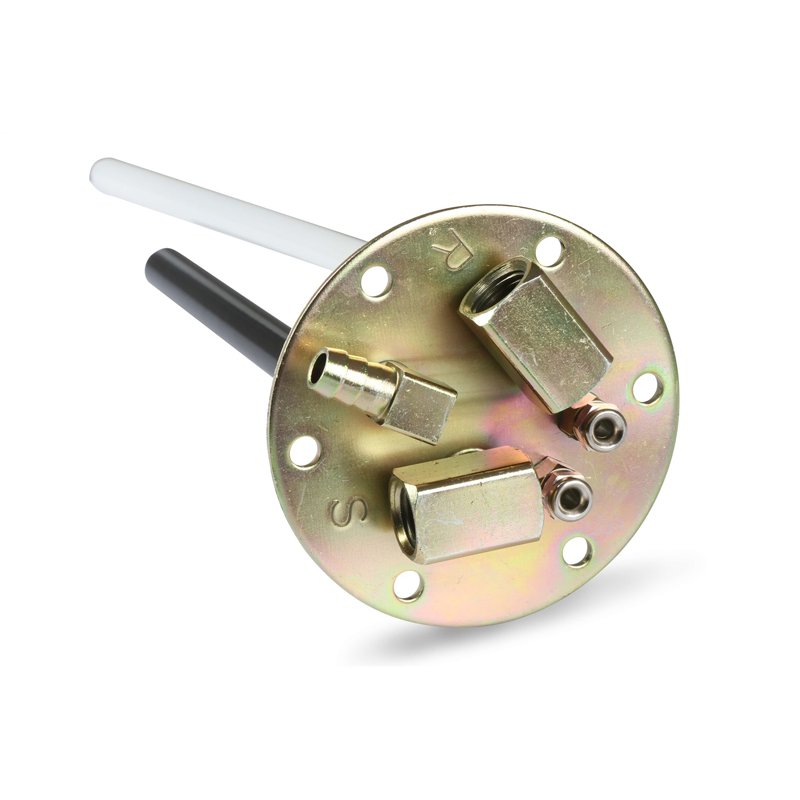

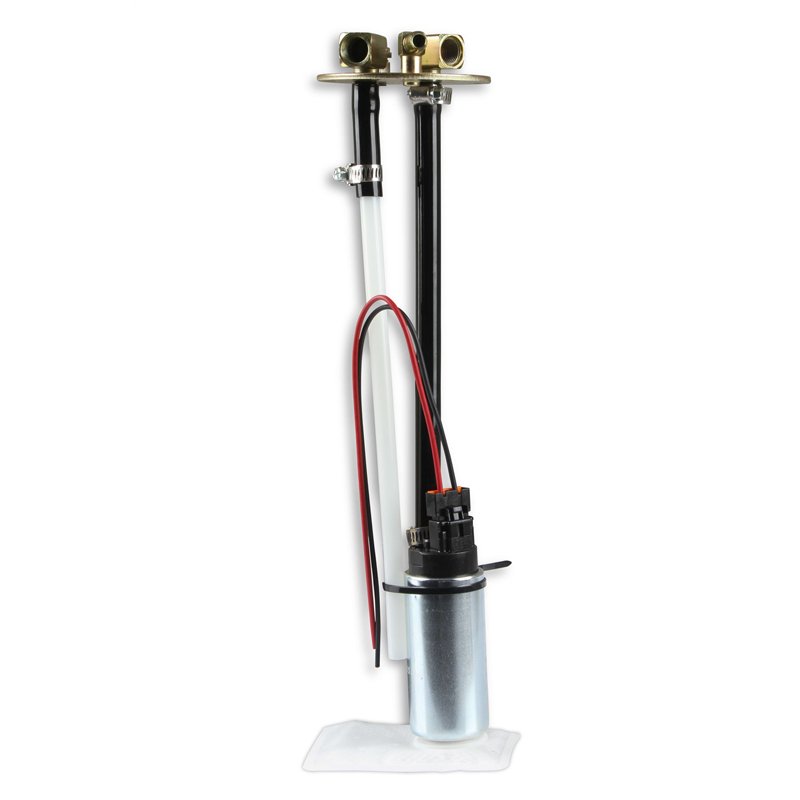

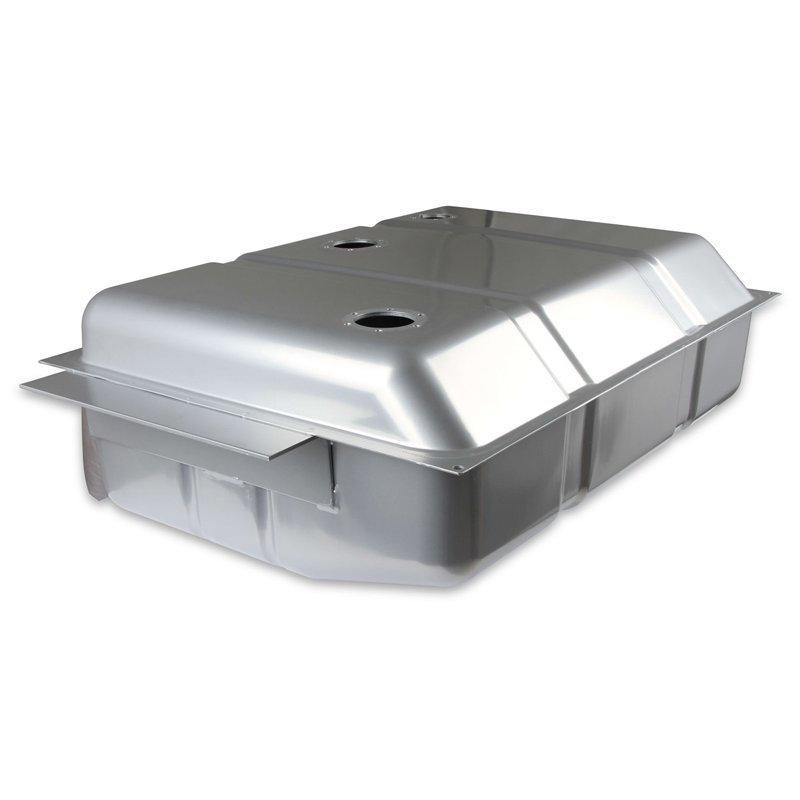

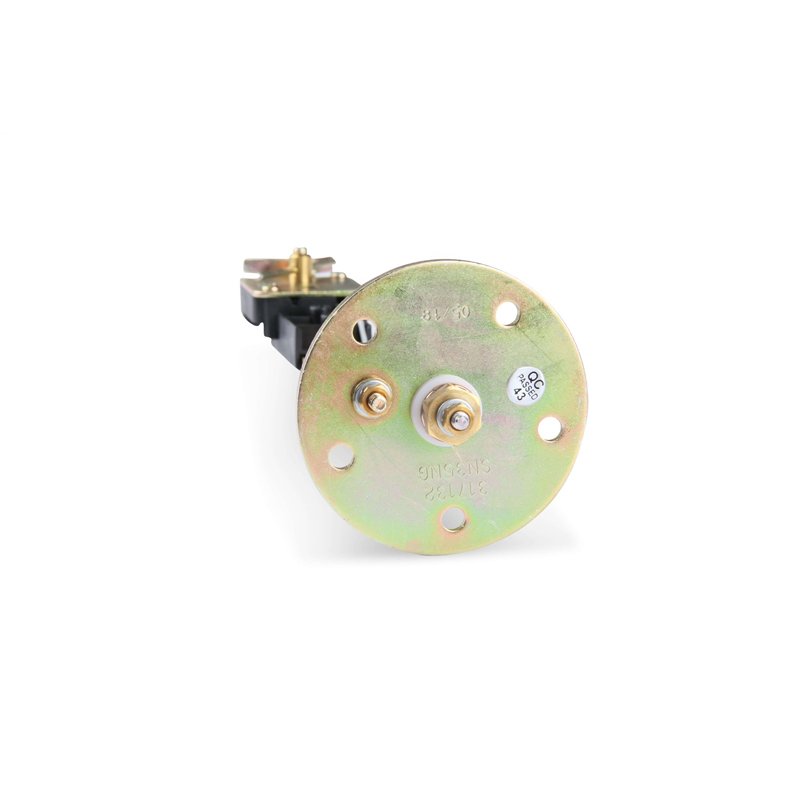

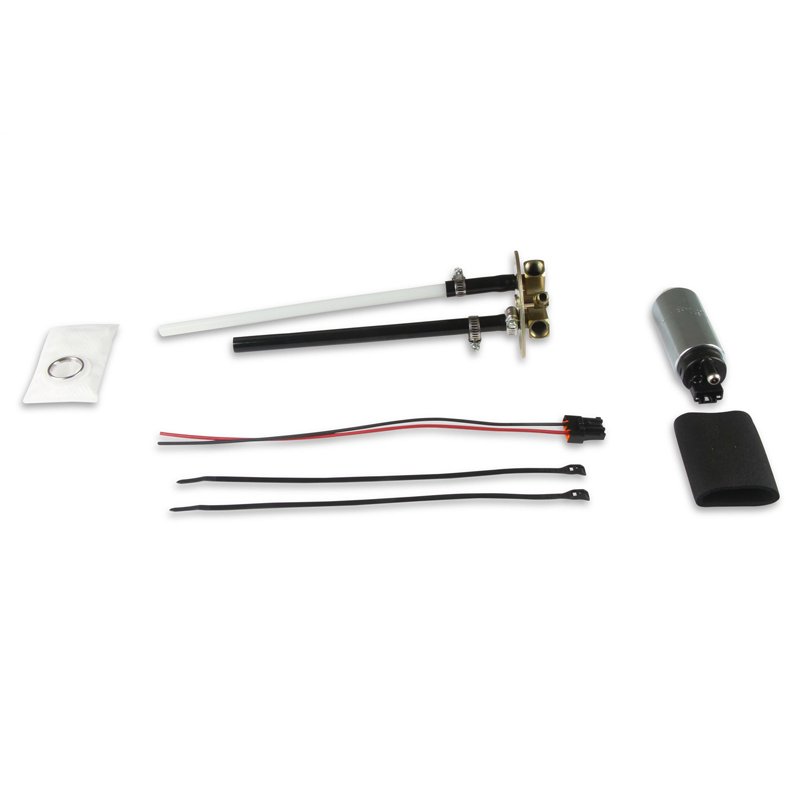

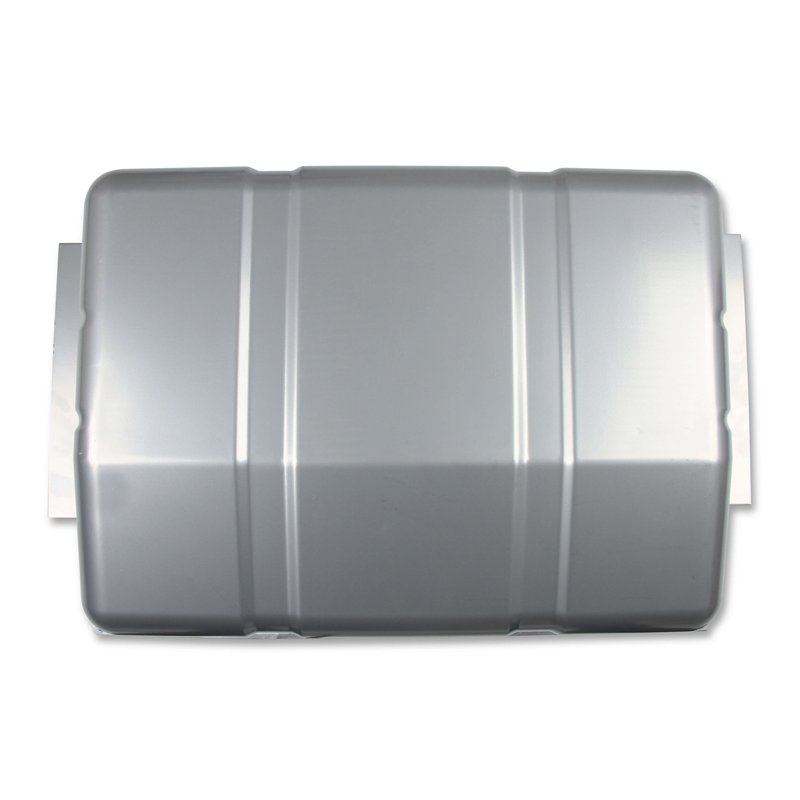

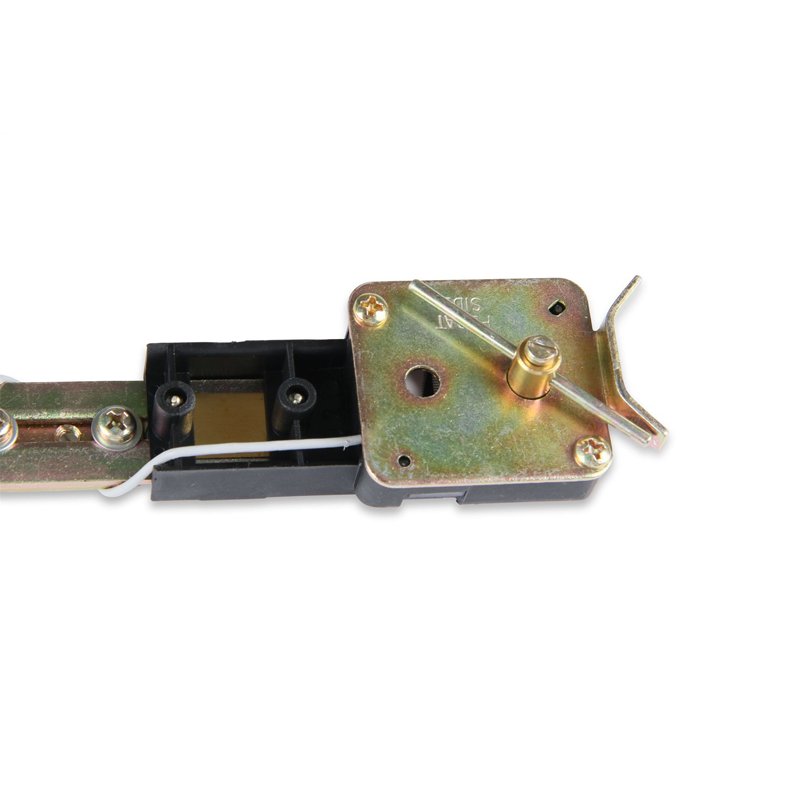

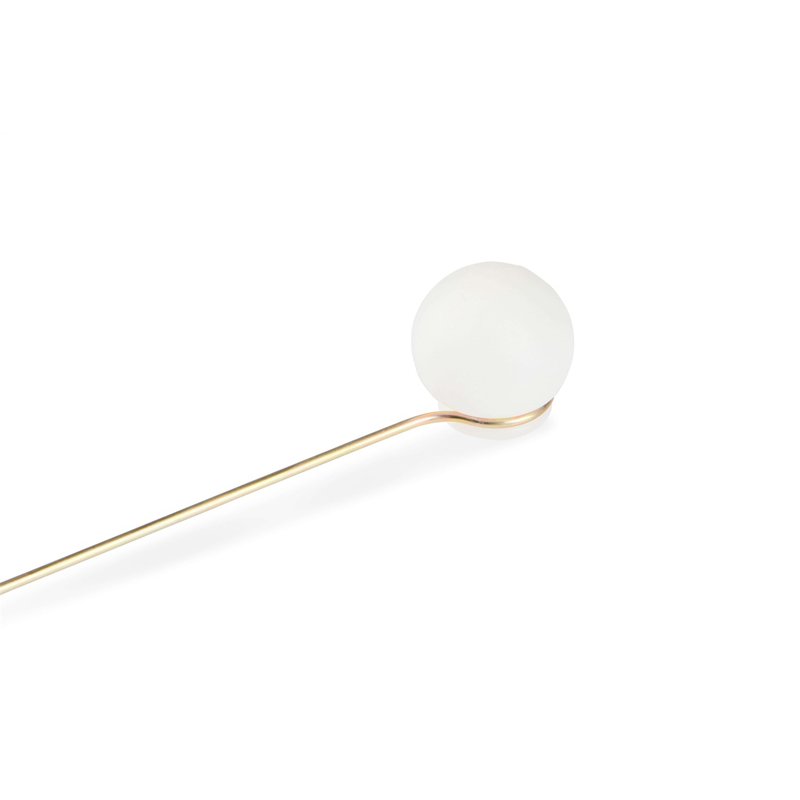

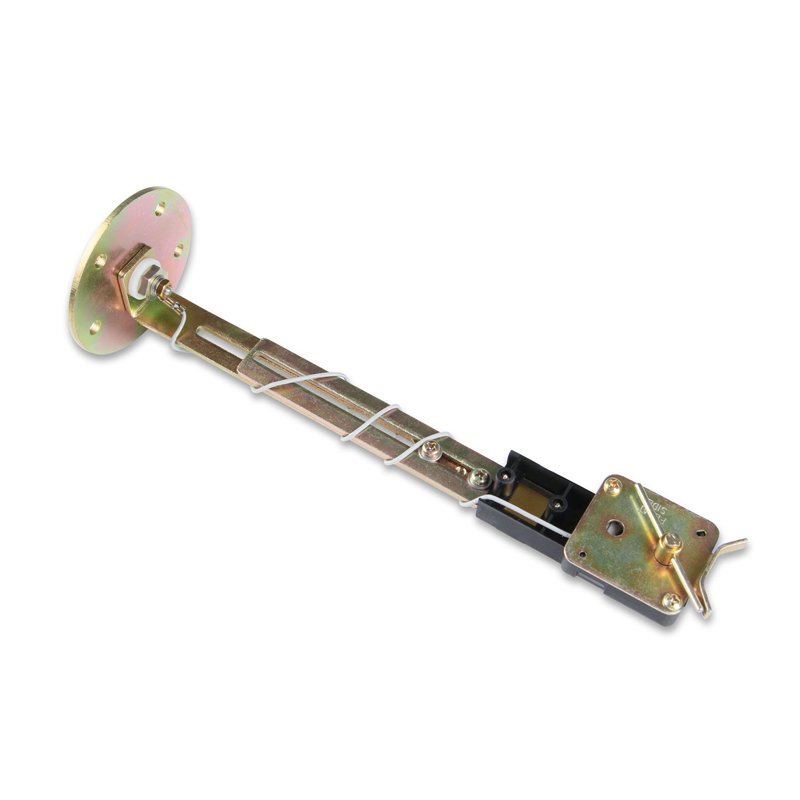

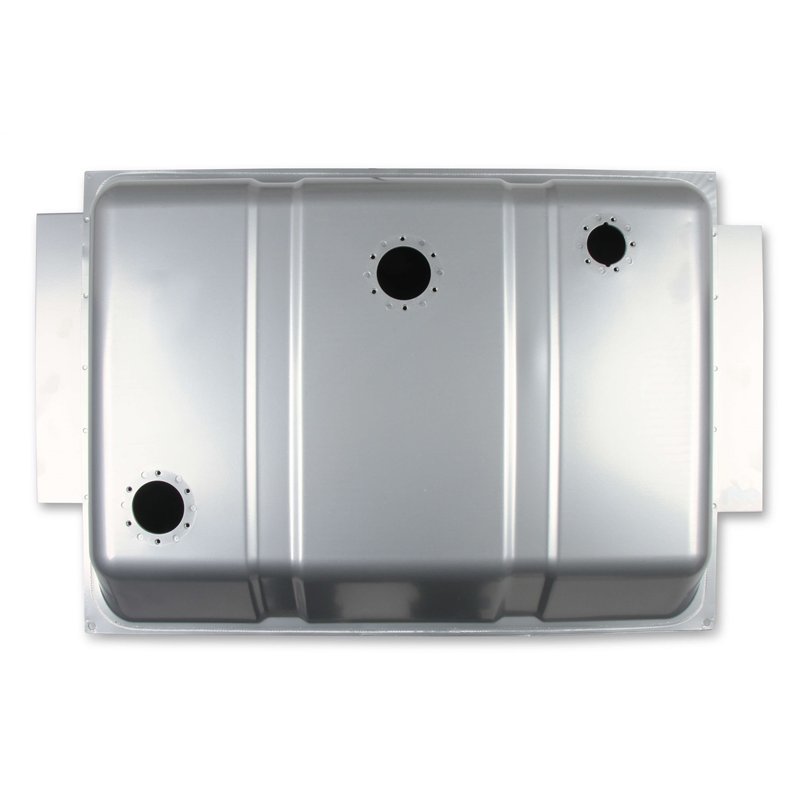

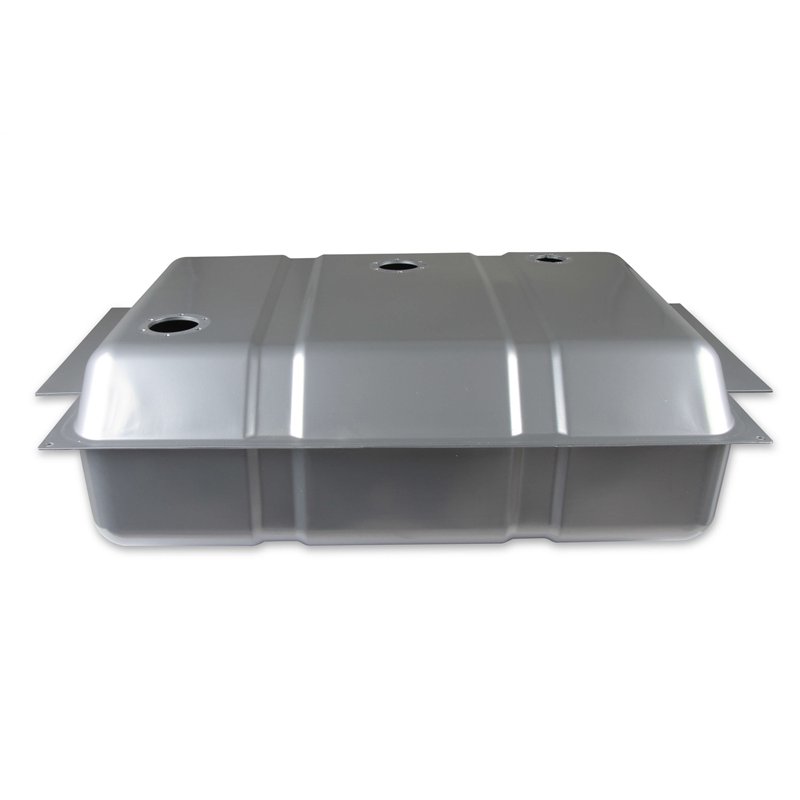

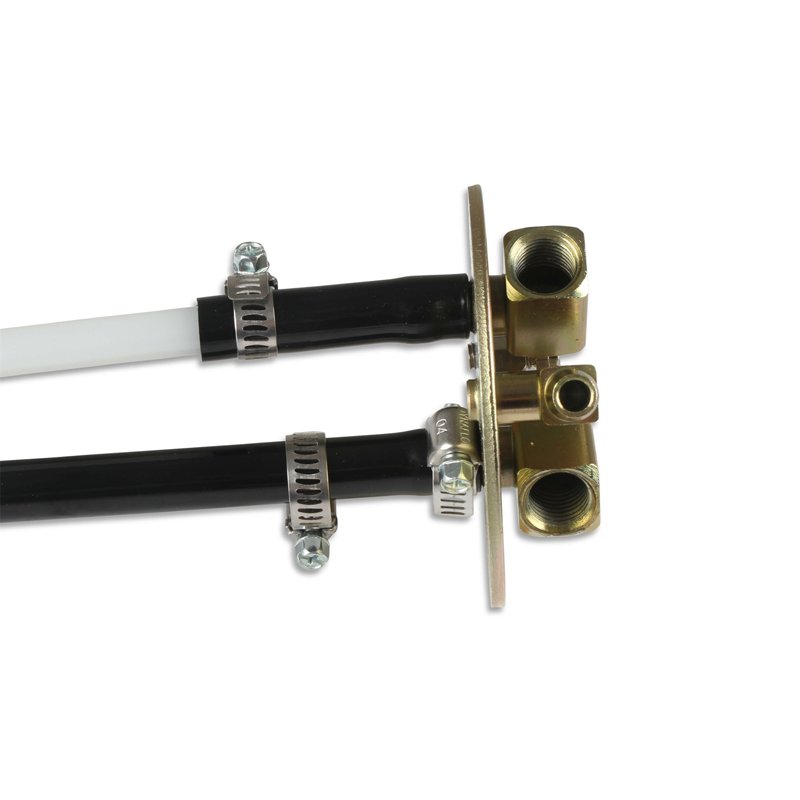

The Holley 19-185 Sniper EFI Fuel Tank System is designed for Chevy/GMC trucks. The tank mounts under the truck bed using flanges — can be bolted to the bottom side of the frame rails, on top, or in between. 18-gallon capacity (32-1/4 x 20-1/2 x 9-3/4 in. with mounting flange; 28 x 20-1/2 x 9-3/4 in. without flange). The kit includes a 255 LPH fuel pump with hanger, internal baffling with a 4.3-liter fuel tray, and a fuel level sender compatible with factory gauges. Supports up to 550 HP EFI. The fuel filler neck routes through the bed floor. Optional 19-186 Side Fill Kit available.

Specifications

• Brand: Holley
• Part Number: 19-185
• Capacity: 18 gallons
• Dimensions: 32-1/4 x 20-1/2 x 9-3/4 in. (with flange) / 28 x 20-1/2 x 9-3/4 in. (without flange)
• Material: galvanized steel, silver powder coat
• Pump Flow: 255 LPH
• Supported Power: up to 550 HP EFI (60 PSI, 13.5V, 10.4A)
• Internal Fuel Tray: 4.3 liters, EFI style baffling

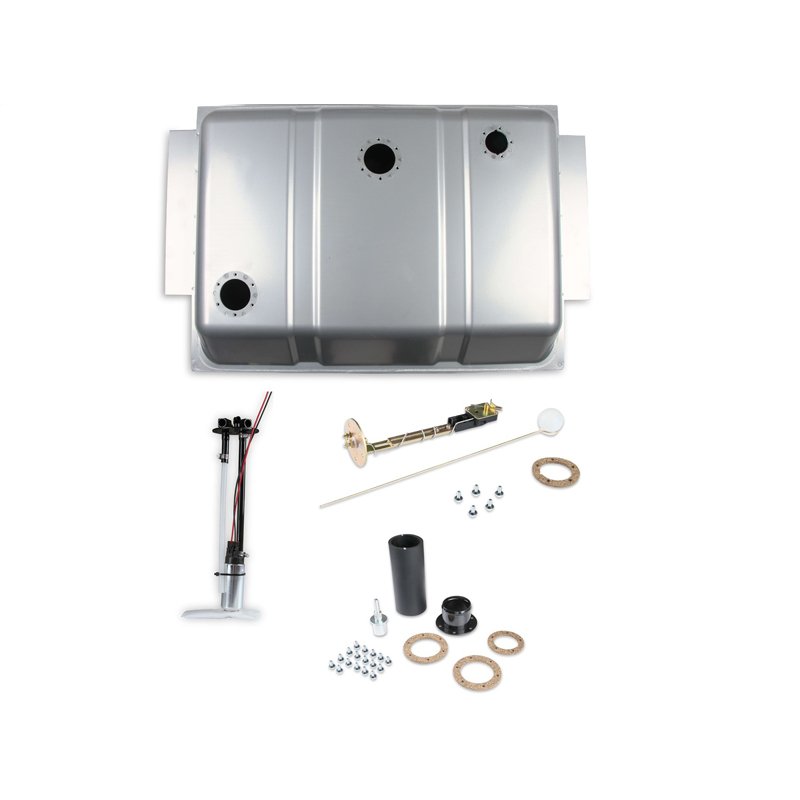

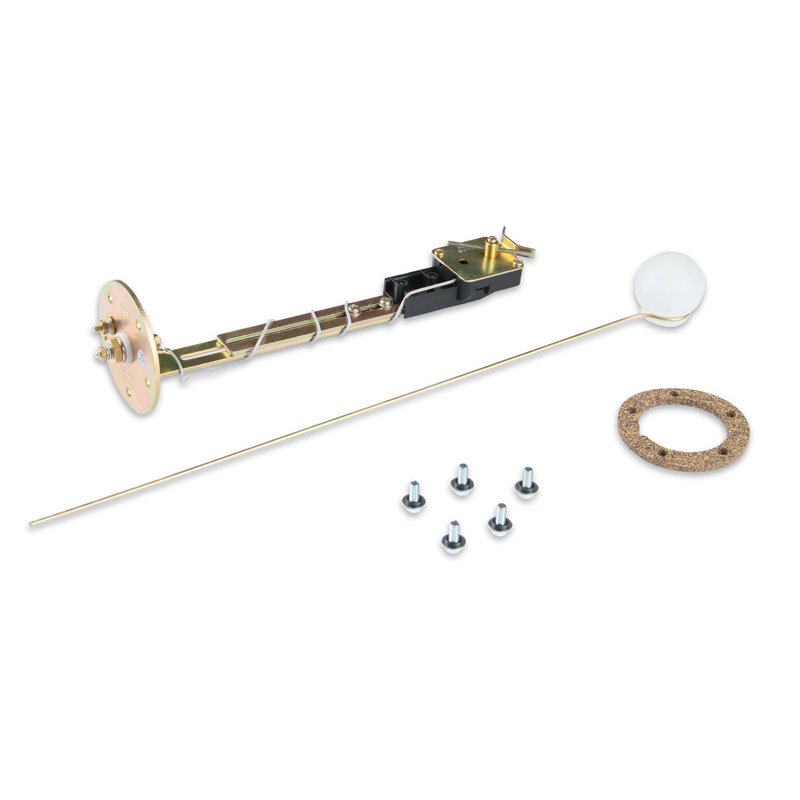

• Includes: tank, pump, hanger, baffling, sending unit
• Condition: New
• Sold and shipped by Truck Expert
