Holley | Electric Fuel Pump

Holley – Electric Fuel Pump

Description

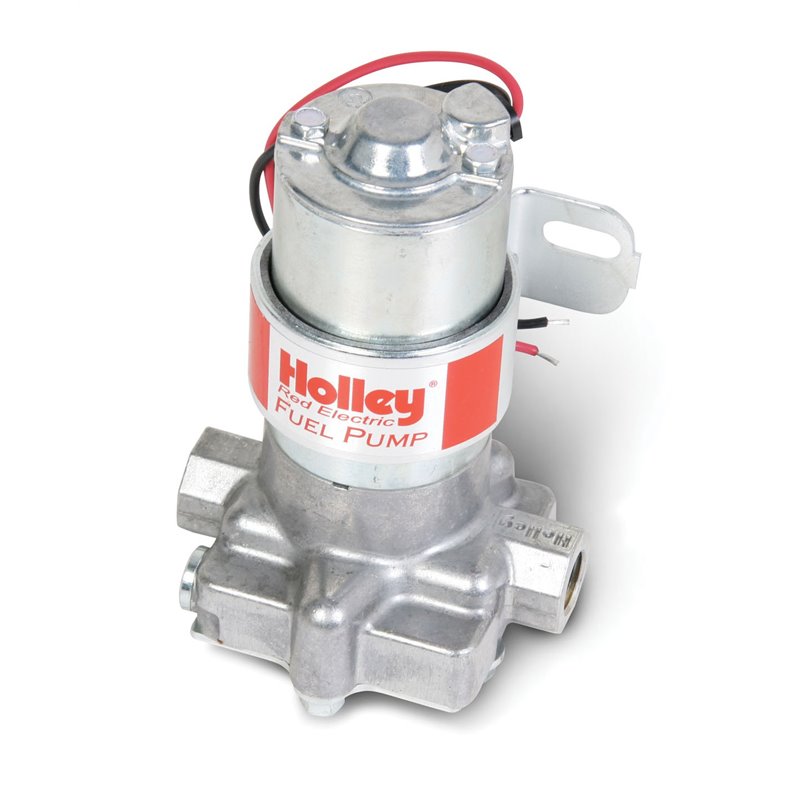

The Holley Electric Fuel Pump 12-801-1 is part of the legendary Silver/red logo pump family, world-famous since the early 1970s. Based on the time-proven rotor/vane design, it delivers constant fuel flow without pulsation. The lower housing casting is designed for enhanced fuel flow. An externally accessible pressure relief valve limits pressure to 7 PSI — no regulator required. 2-amp motor. Free flow 97 GPH. Ideal for carbureted street and strip applications.

Specifications

• Brand: Holley
• Part Number: 12-801-1
• Type: Electric Fuel Pump (carbureted)

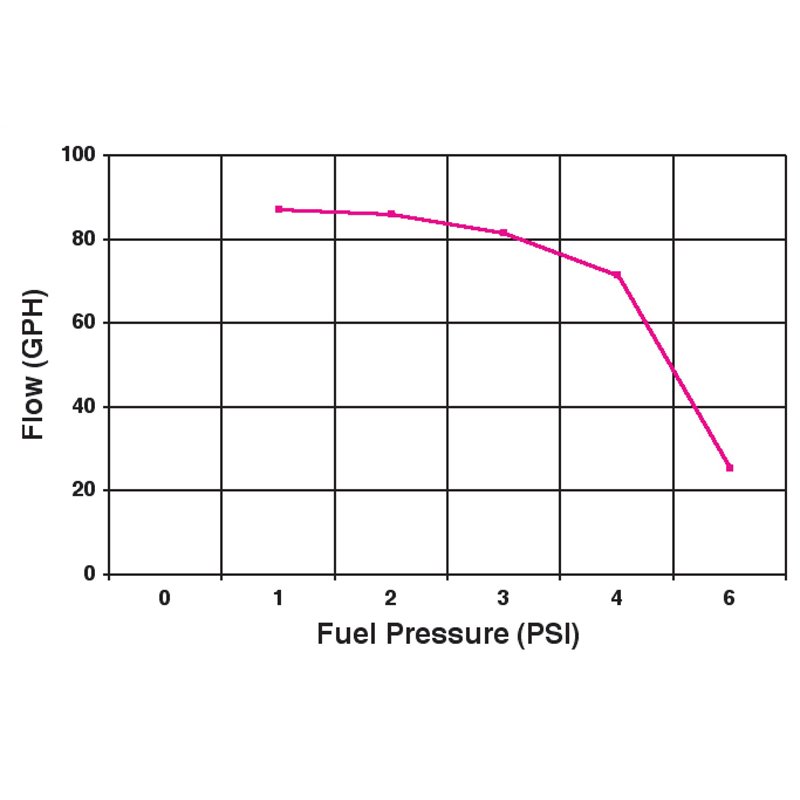

• Free Flow: 97 GPH (367 LPH) | at 4 PSI: 71 GPH
• Max Pressure: 7 PSI
• Inlet / Outlet: 3/8 in. NPT
• Material: Tumble-polished billet aluminum
• Body/Bracket Color: Silver | Logo: Red
• Motor Draw: 2 amps
• Fuel: Gasoline | Carbureted applications
• Relay Kit PN 12-753 and 7.5A fuse recommended
• Condition: New
• Sold and shipped by Truck Expert
