CURT | Custom 7-Way RV Blade - Passport / Pilot 3.5L 2016-2025

CURT - Custom 7-Way RV Blade

Description

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Honda Pilot and Passport (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.

Characteristics

• Electrical System Type: 3W
• Installation Difficulty: Difficult
• Installation Time Exact (Minutes): 45

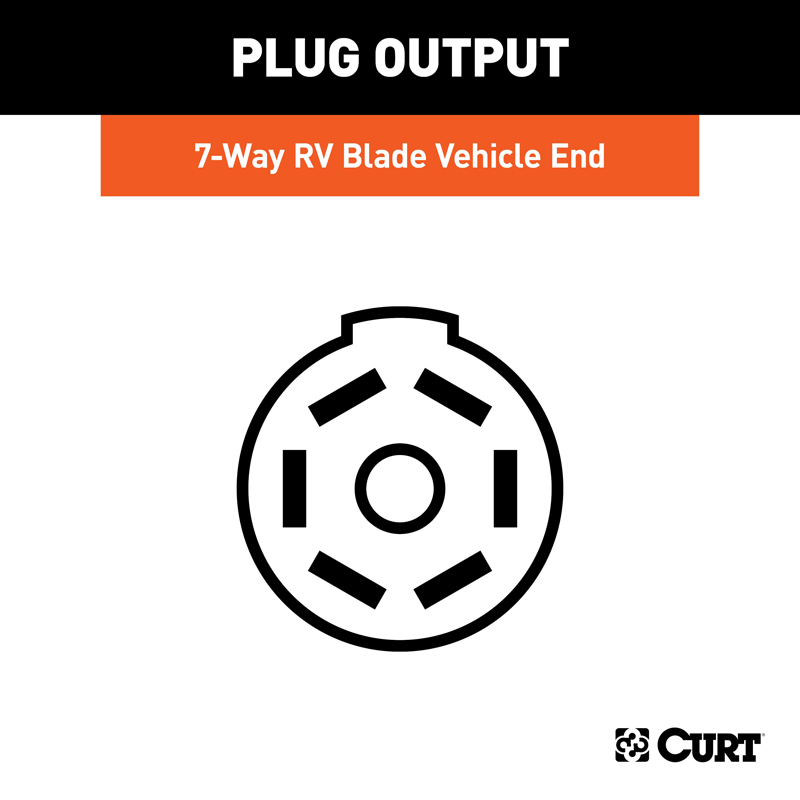

• Output Type: 7-Way Round
• Tail Light Circuits: 6.0 Amps
• Turn and Brake Circuits: 3.0 Amps
• Warranty: One-Year Limited Warranty

Attributs

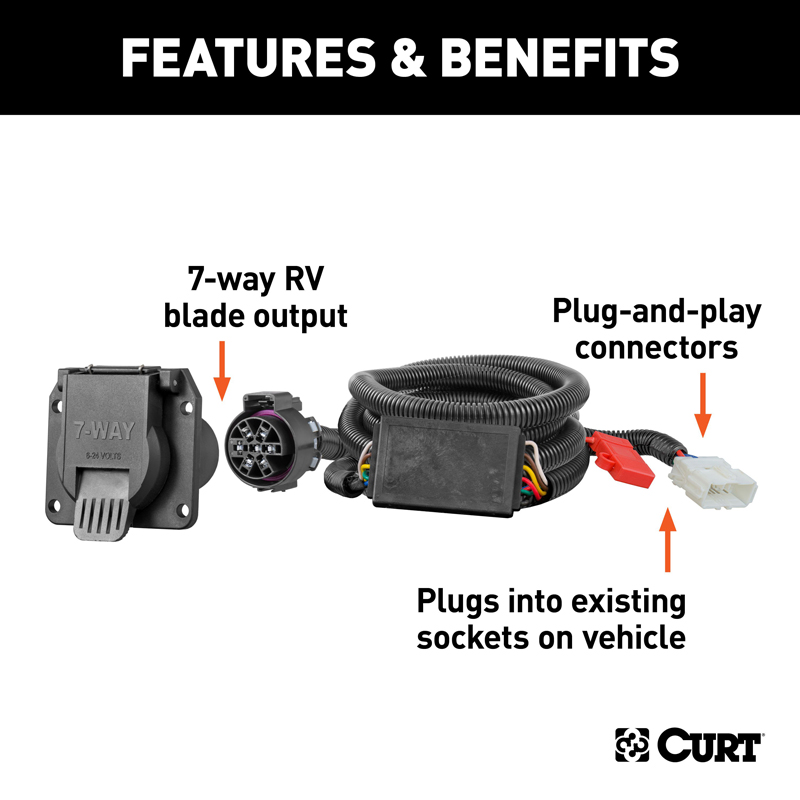

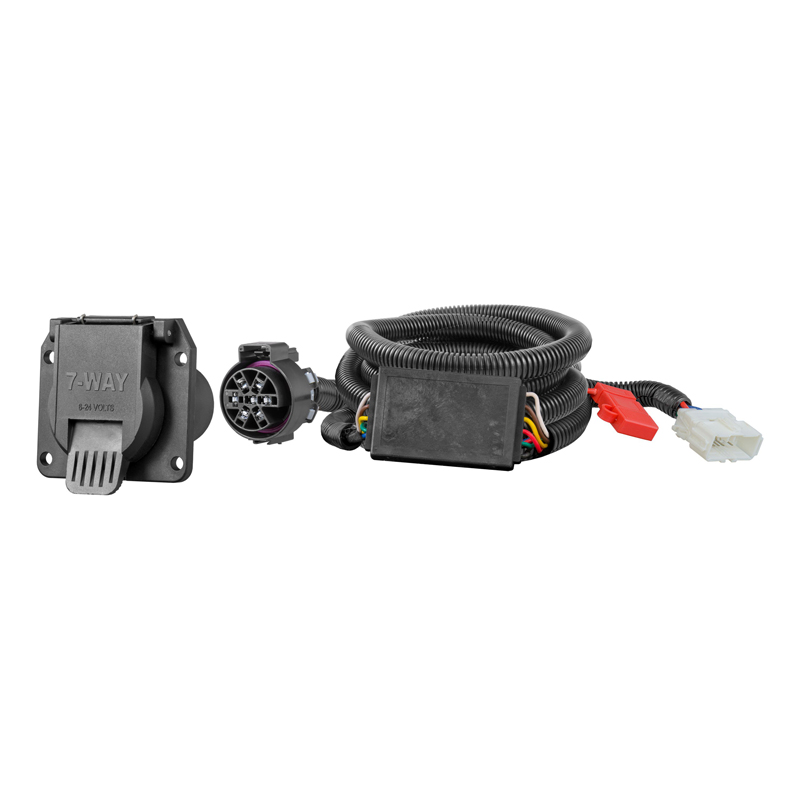

• Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
• Simple plug-and-play design eliminates the need for cutting or splicing
• 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
• Equipped with tail light converter for vehicle-trailer compatibility
• Constructed with SMT circuitry for better performance and durability
• Spring-loaded dust cover keeps connector clean when not in use
• Slit loom keeps wires contained and well protected
• Backed by a limited one-year warranty
• Factory (OEM) tow package required for installation
• Vehicle battery connection required

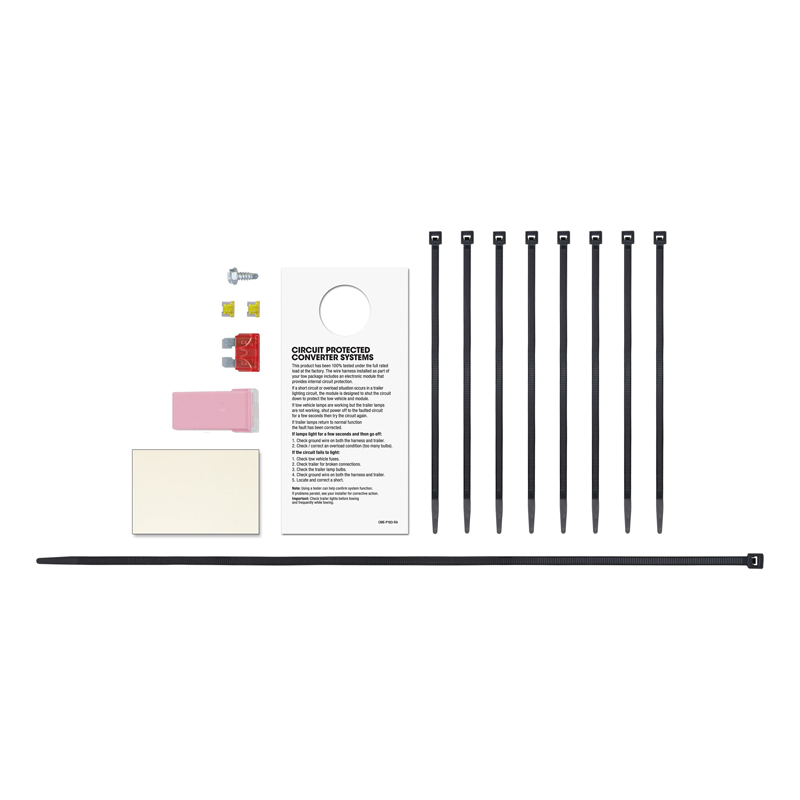

• Includes fuse holder and other necessary wiring components

Fitment Notes

• Converter Type: Circuit Protected, Powered
• Electrical System Type: 3W
• Installtion Difficulty: Difficult
• Installation Time Exact (Minutes): 45
• Output Type: 7-Way Round
• Tail Light Circuits: 6.0 Amps
• Turn and Brake Circuits: 3.0 Amps

Click HERE to view instructions
