ICON | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT - Sequoia / Tacoma / Tundra 3.4T / 2.4T 2022-2025

ICON - Suspension Control Arm Kit

Description

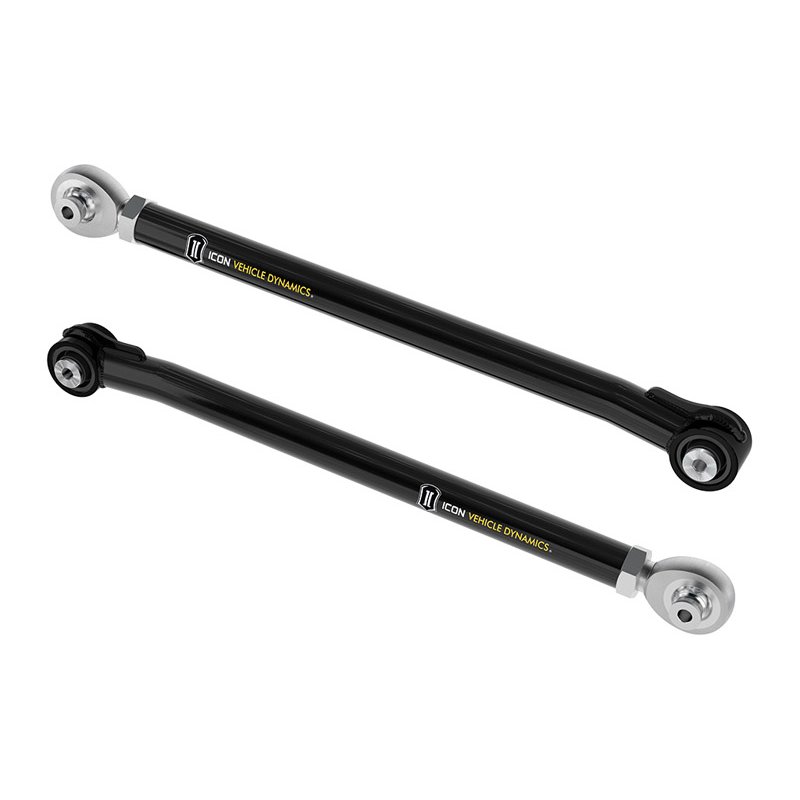

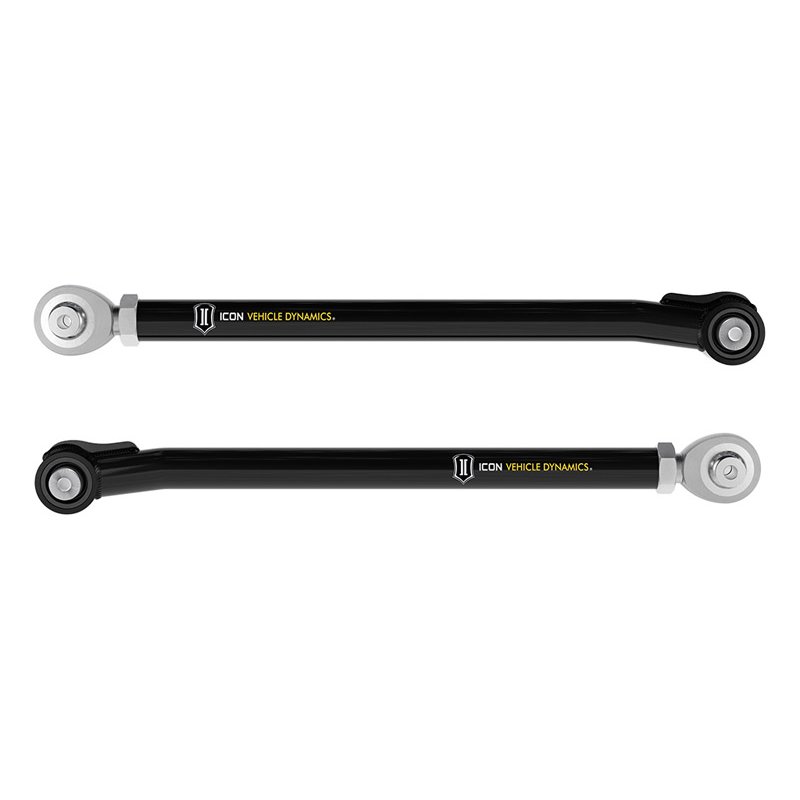

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2024 Toyota Sequoia, and 2024 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Characteristics

• 10: Steel
• 10828: Yes
• 10837: Yes
• 1260: Yes
• 158: Tubular
• 2330: No
• 2339: No
• 2354: Performance
• 2371: Yes
• 2383: Threaded
• 2384: Yes
• 2386: Tubular
• 2389: DOM Steel
• 2811: No
• 30: Yes
• 3390: Performance
• 40: Yes
• 4888: Black
• 73: Polyurethane
• 73: Rod End Bearing
• 92: No
• 9617: Air
• 9617: Spring
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Control Arm: yes
• Ball Joint Mounting Type: Thread in
• Bushing Color: Black
• Bushing Color: Silver
• Color: Black
• End 1 Type: Rod End Bearing
• End 2 Type: Bushing
• Finish: Powdercoated
• Quantity: Pair

Attributs

• Adjustable for various lift heights & driveline angles
• CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
• Fabricated components covered under ICON's Limited Lifetime Warranty
• Help free rear suspension bind compared to OE links
• High clearance Lower Link design for reduced contact with obstacles
• Multi durometer bushings for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
